Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 1999 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Switch

Ignition Switch

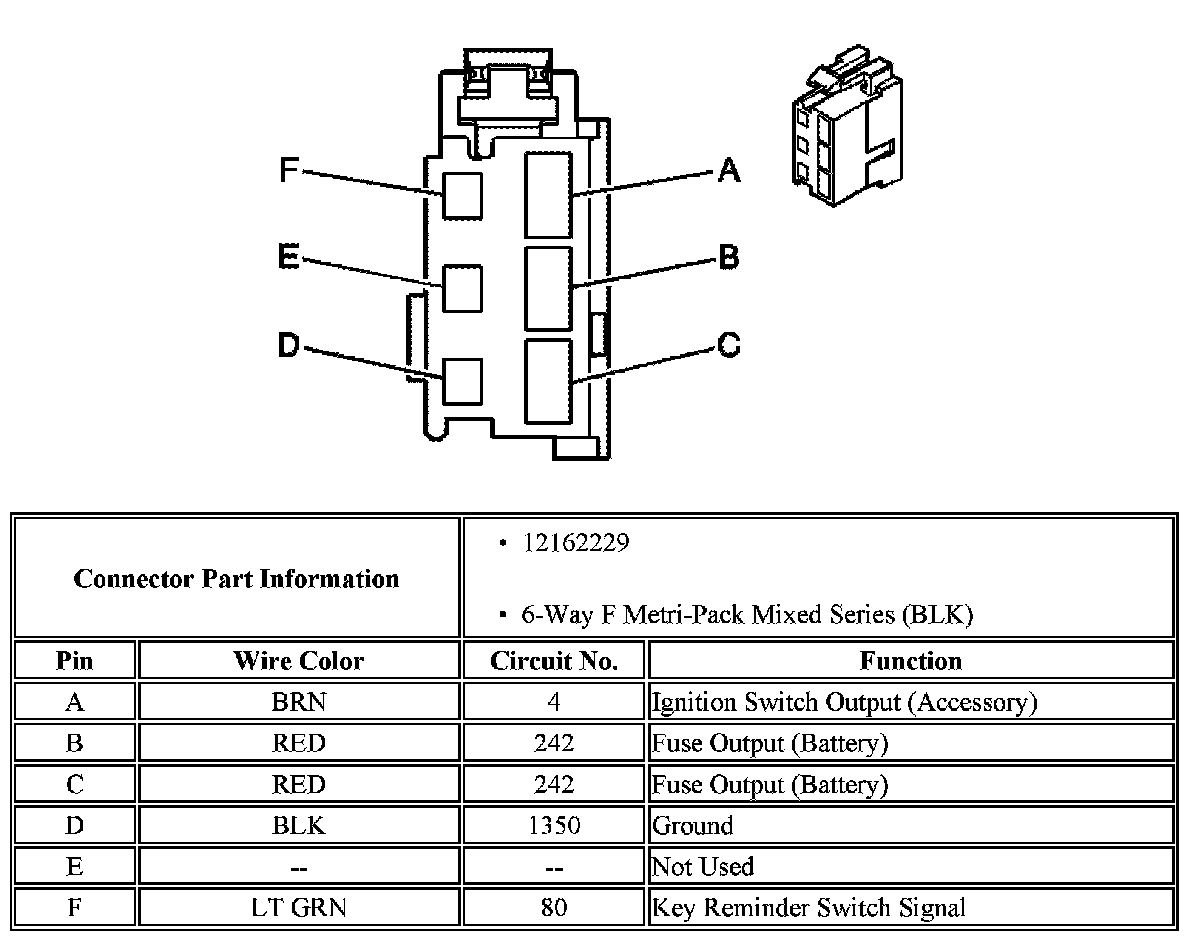

Ignition Switch C1:

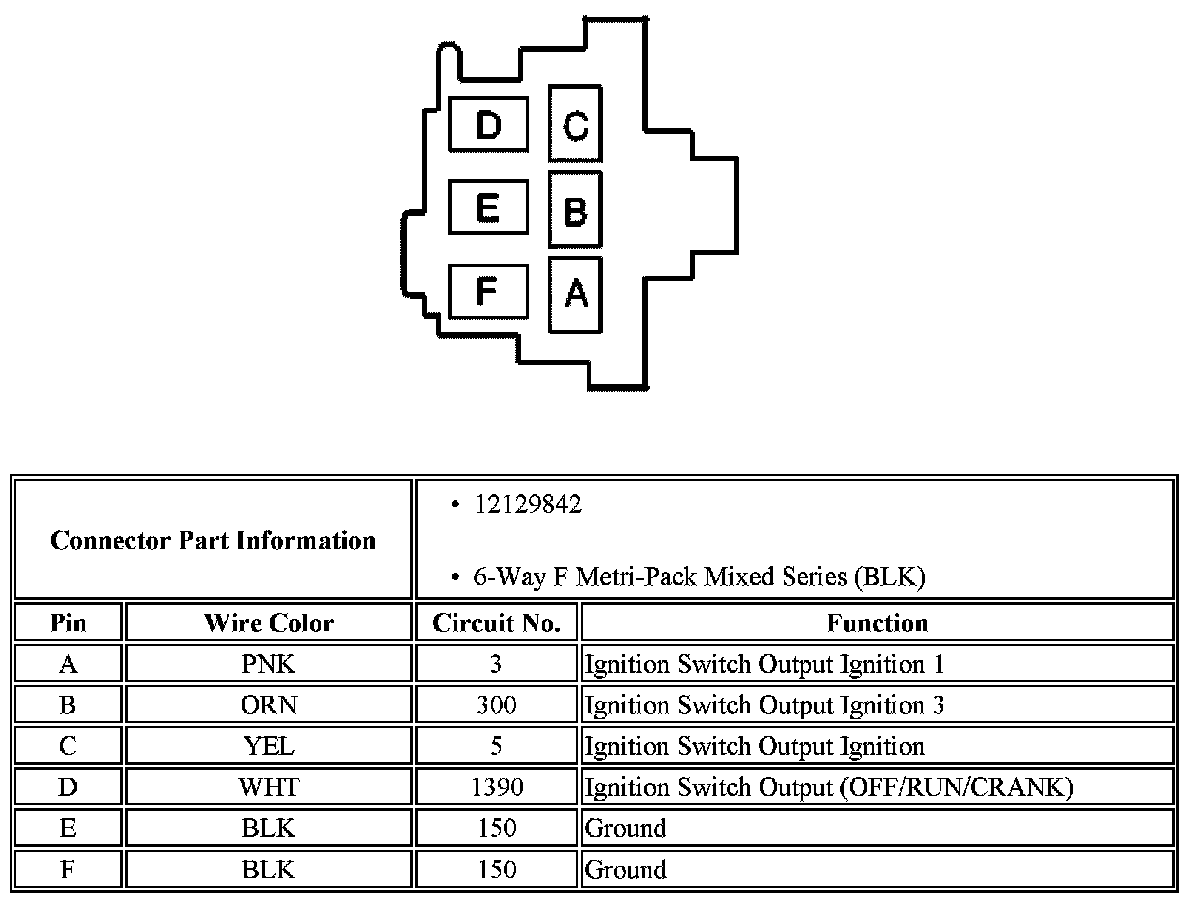

Ignition Switch C2:
