Home >> Pontiac >> 1999 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Keyless Entry >> Keyless Entry Doors Lock Motors

Keyless Entry Doors Lock Motors

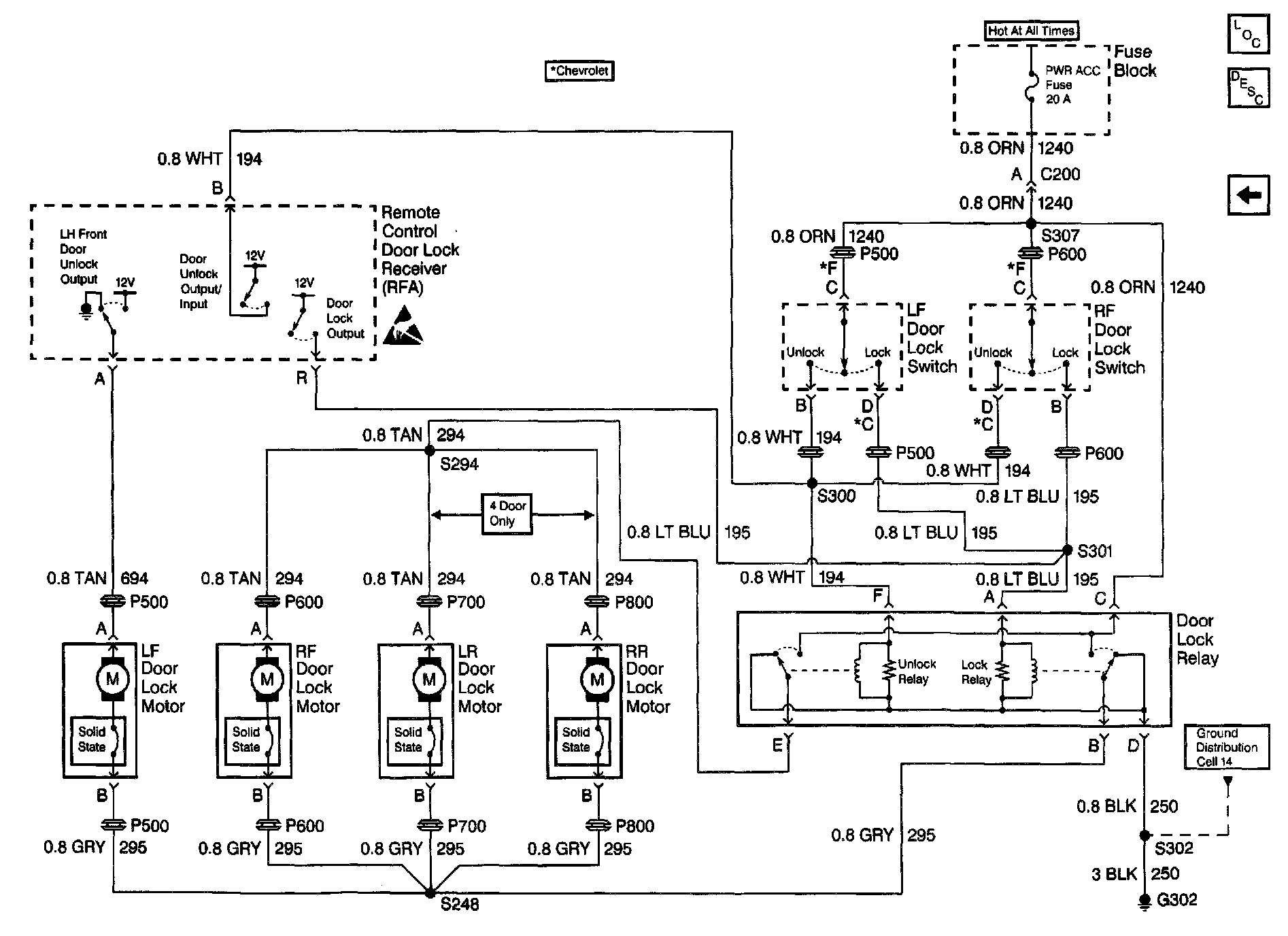

Keyless Entry Schematics: Keyless Entry Doors Lock Motors:
