System Diagram

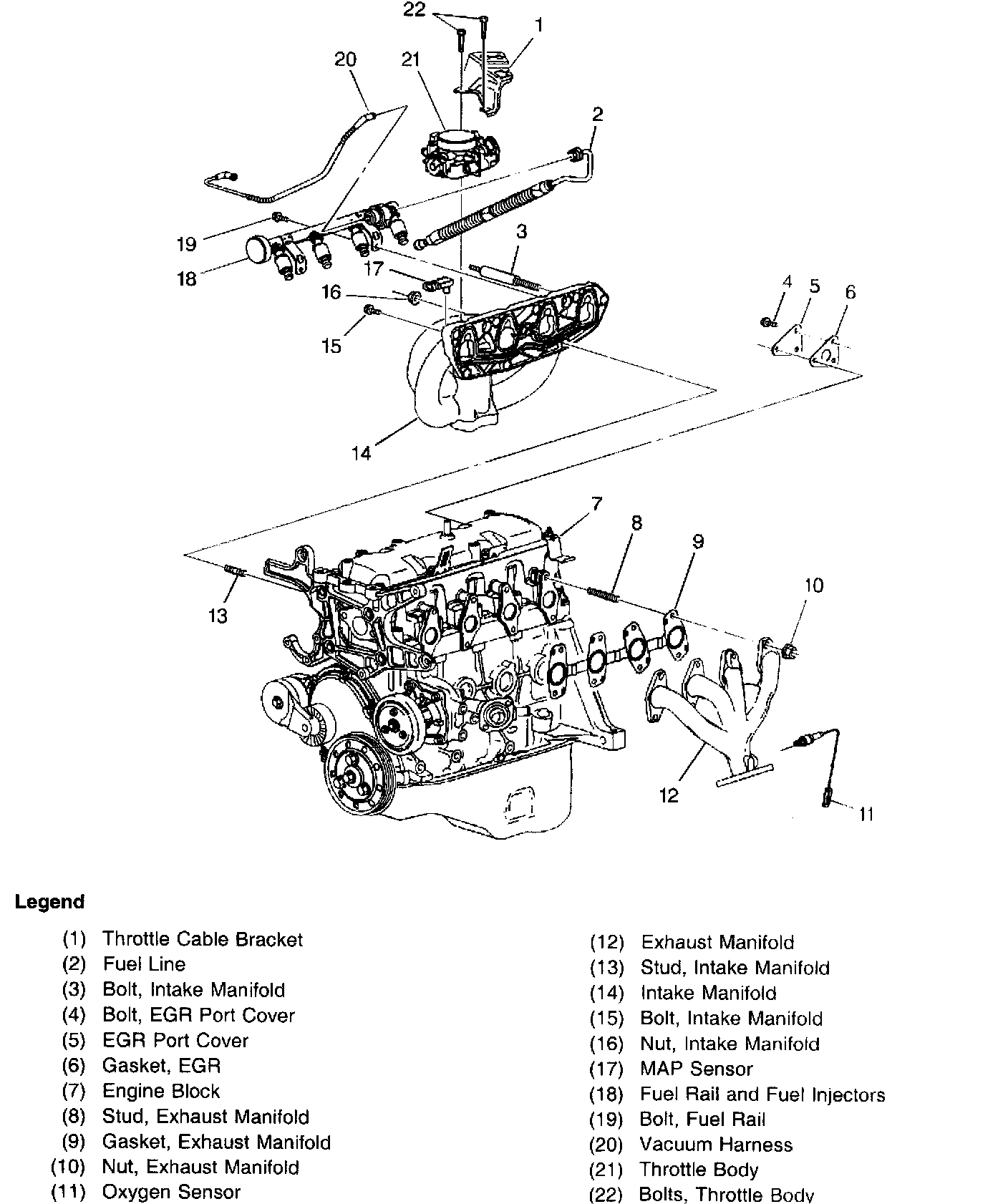

INTAKE AND EXHAUST MANIFOLD COMPONENTS

Part 1 Of 2:




Part 2 Of 2:

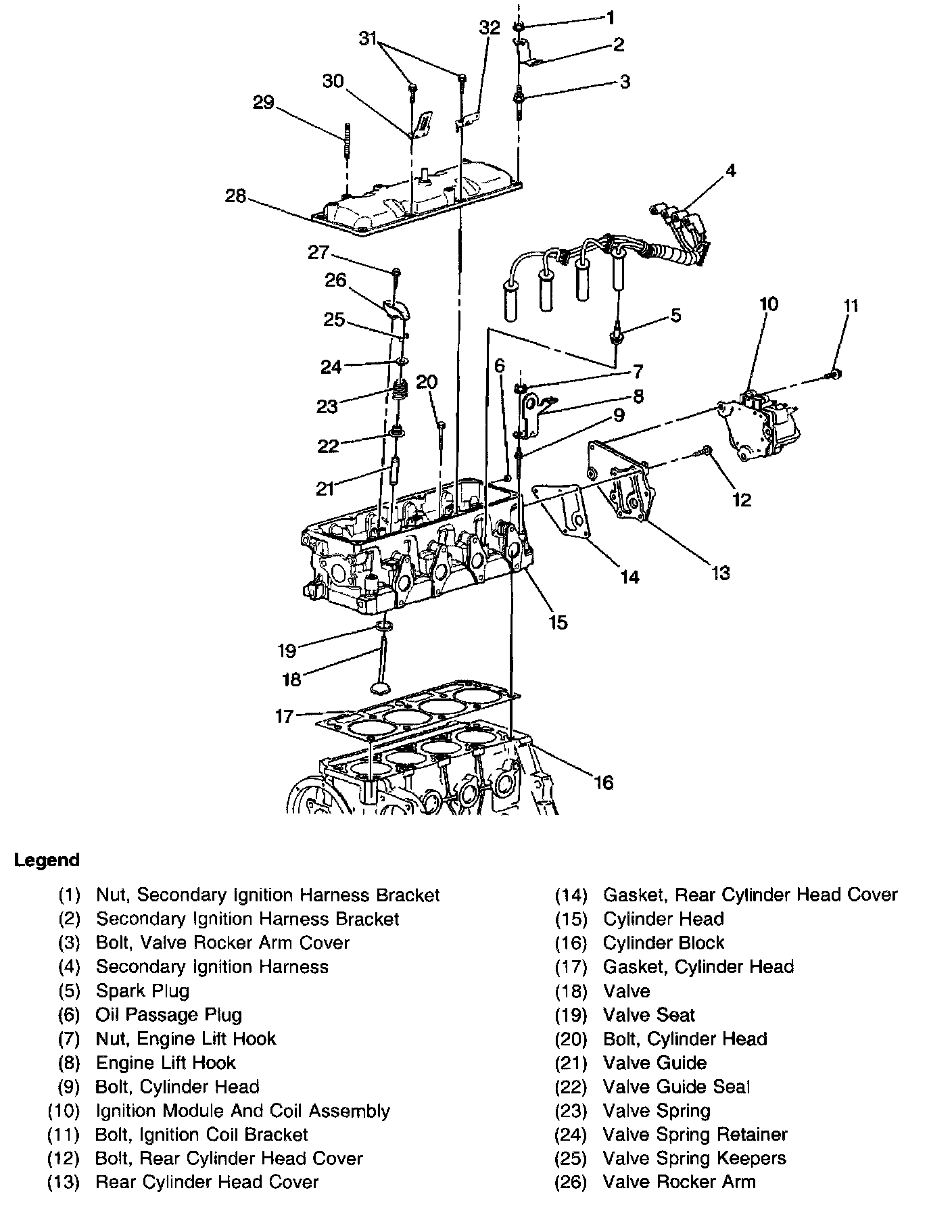

CYLINDER HEAD AND COMPONENTS

Part 1 Of 2:




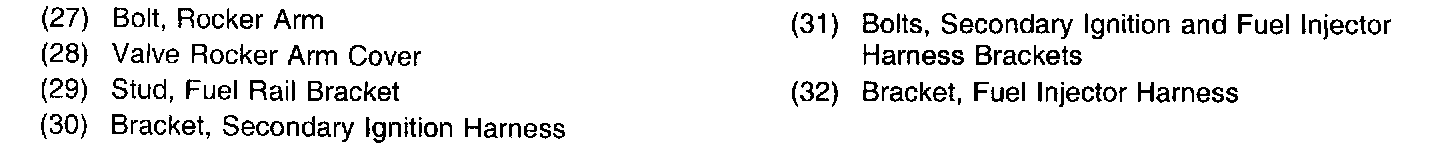

Part 2 Of 2:

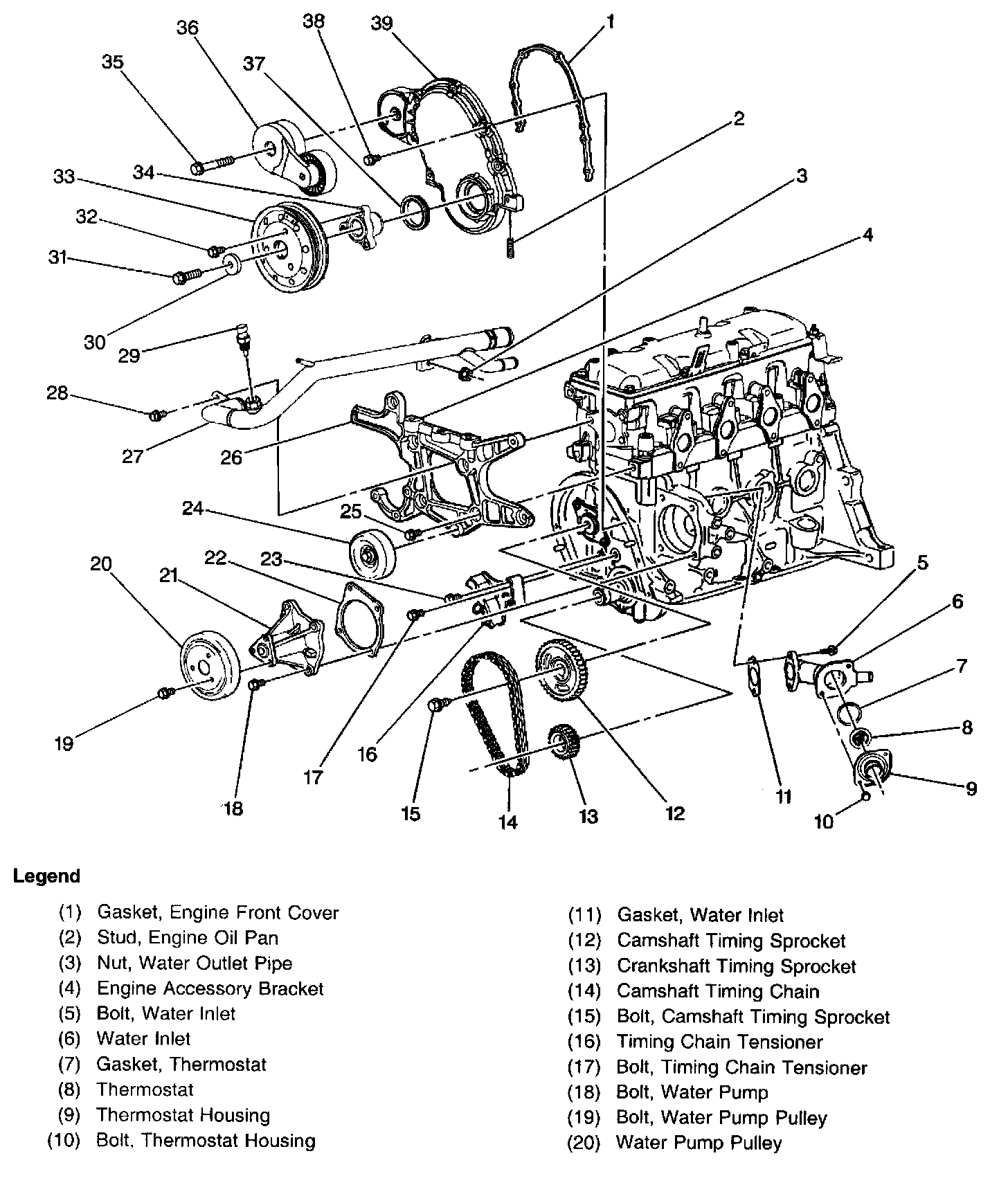

TIMING AND ACCESSORY COMPONENTS

Part 1 Of 2:




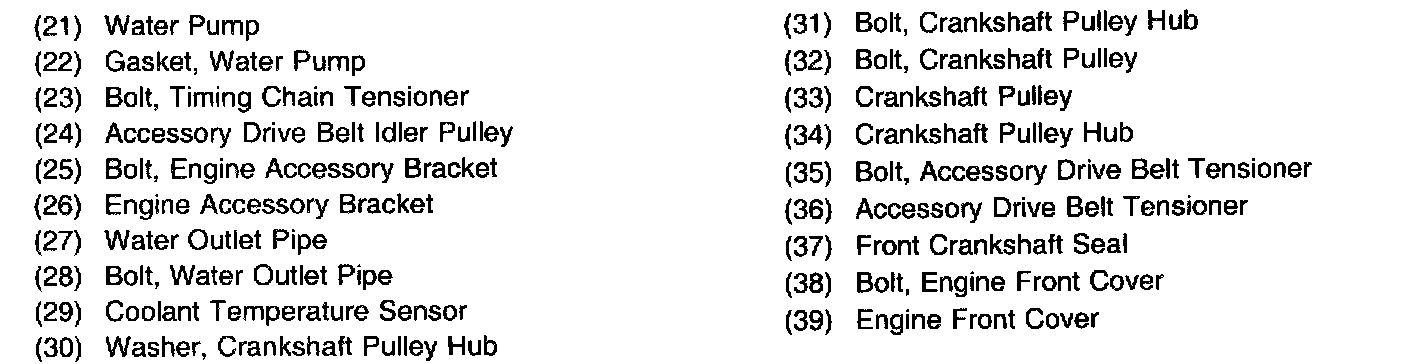

Part 2 Of 2:

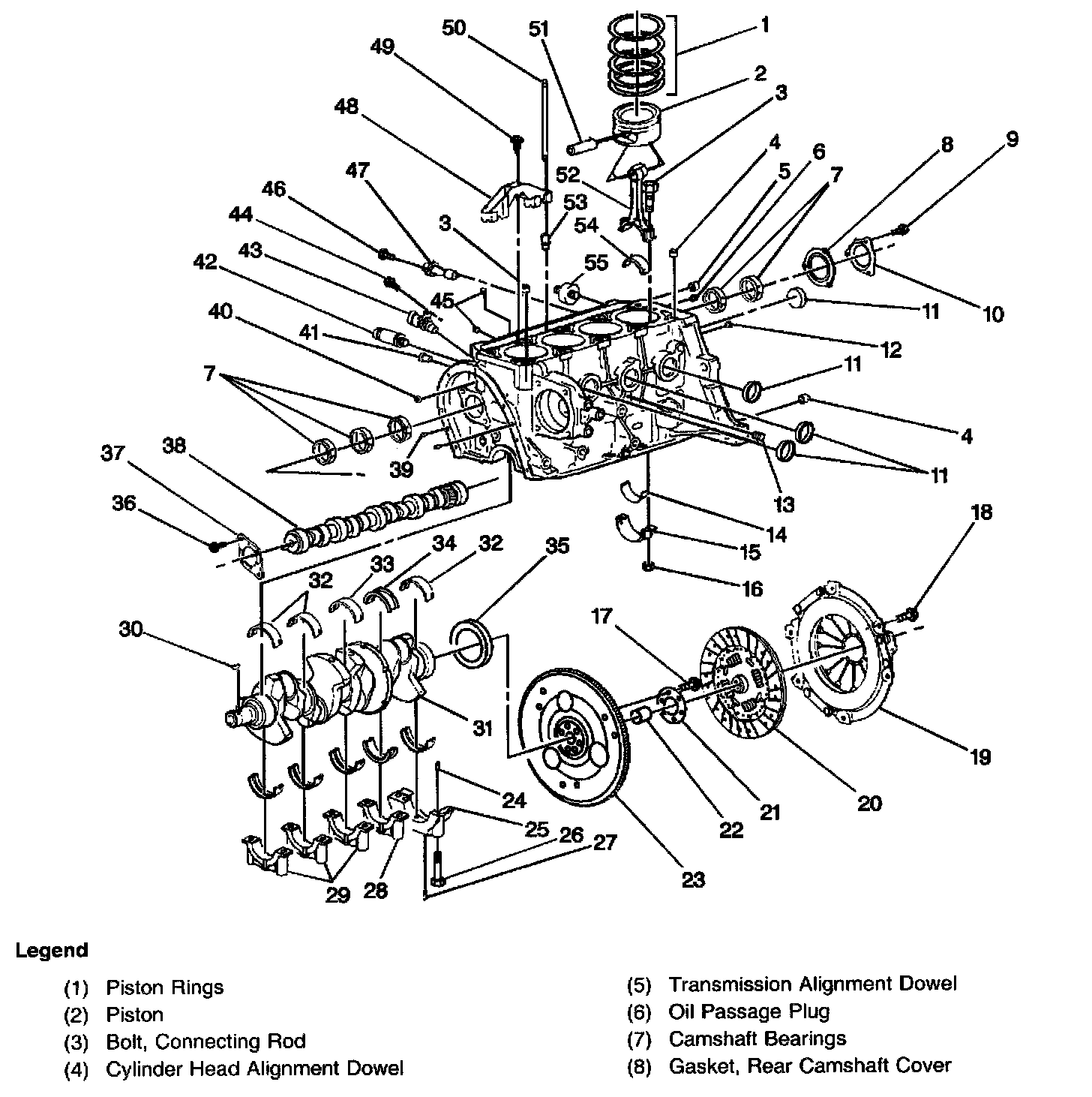

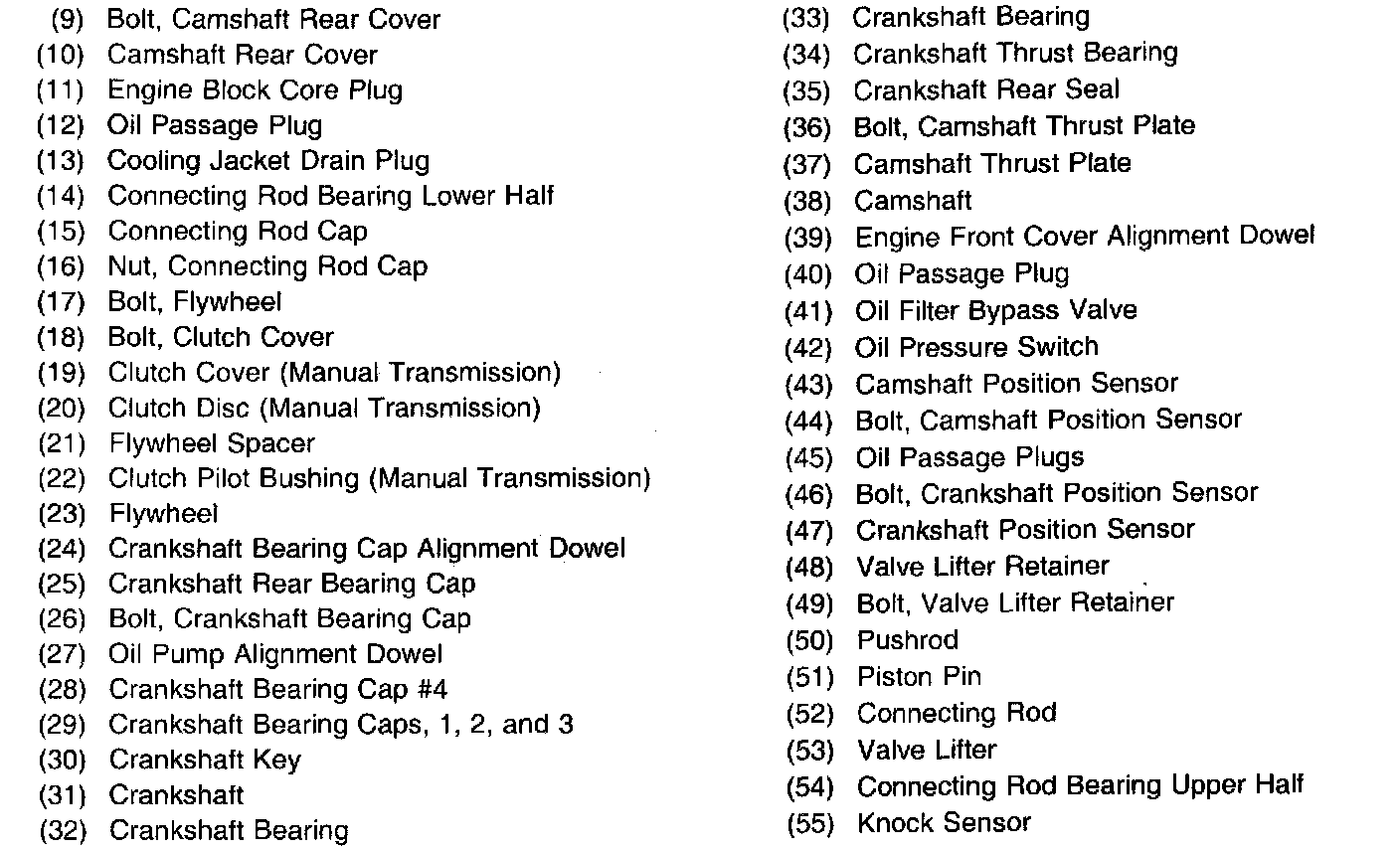

CYLINDER BLOCK AND CRANKSHAFT COMPONENTS

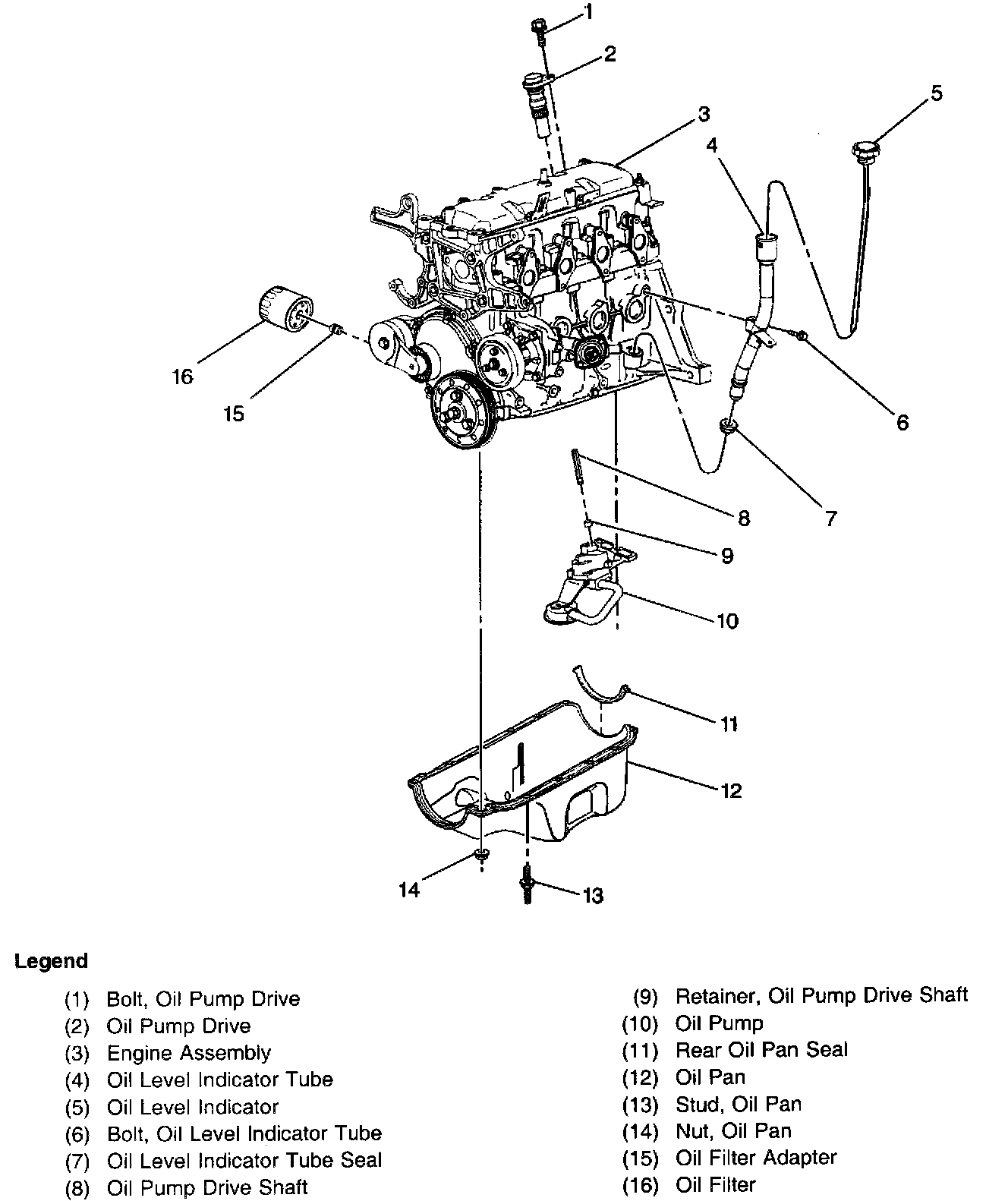

OIL PUMP AND OIL PAN COMPONENTS
