Home >> Pontiac >> 1999 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Locations

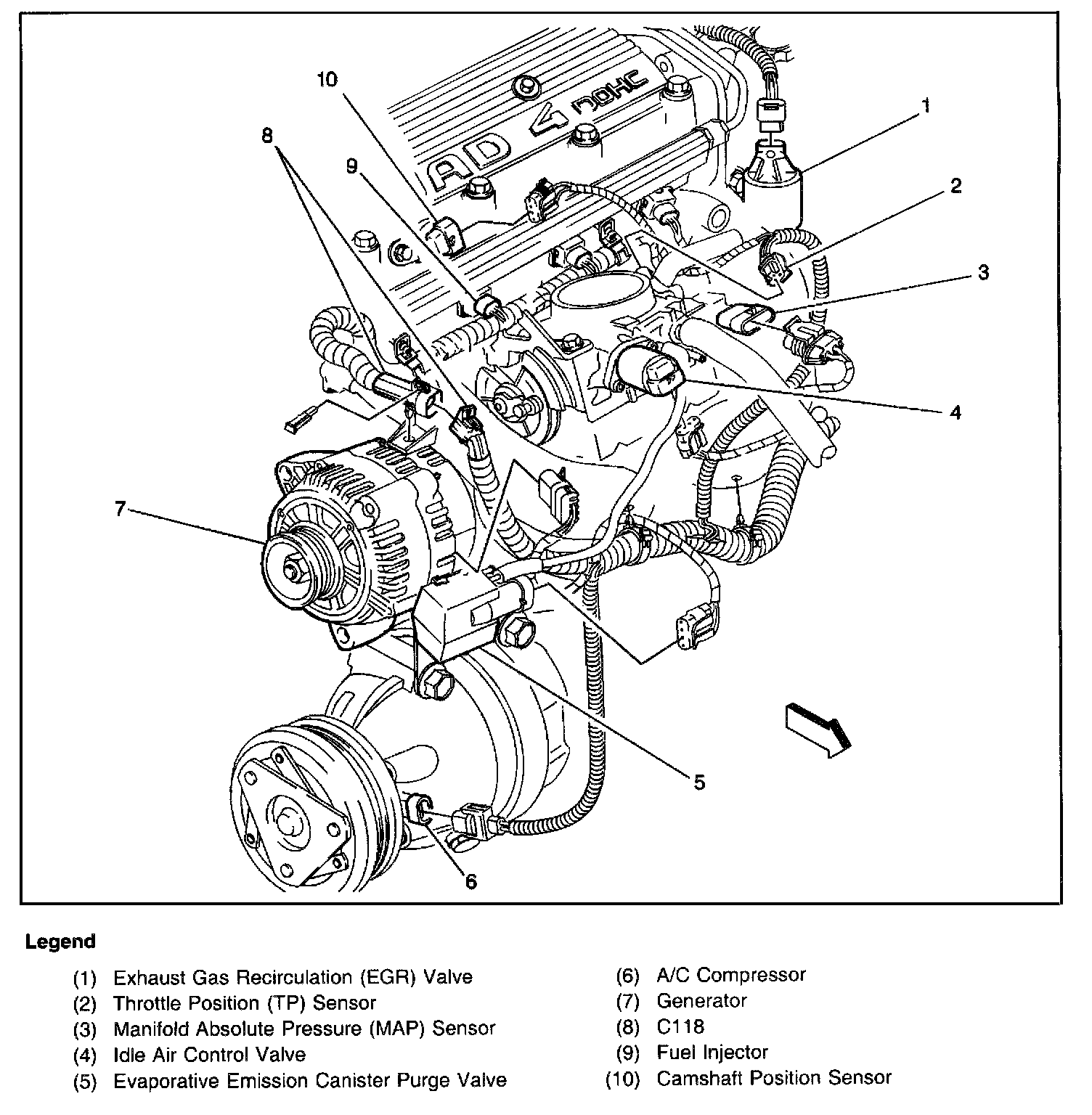

Compressor HVAC: Locations

Right Front Of Engine:





Right front of engine compartment
