Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

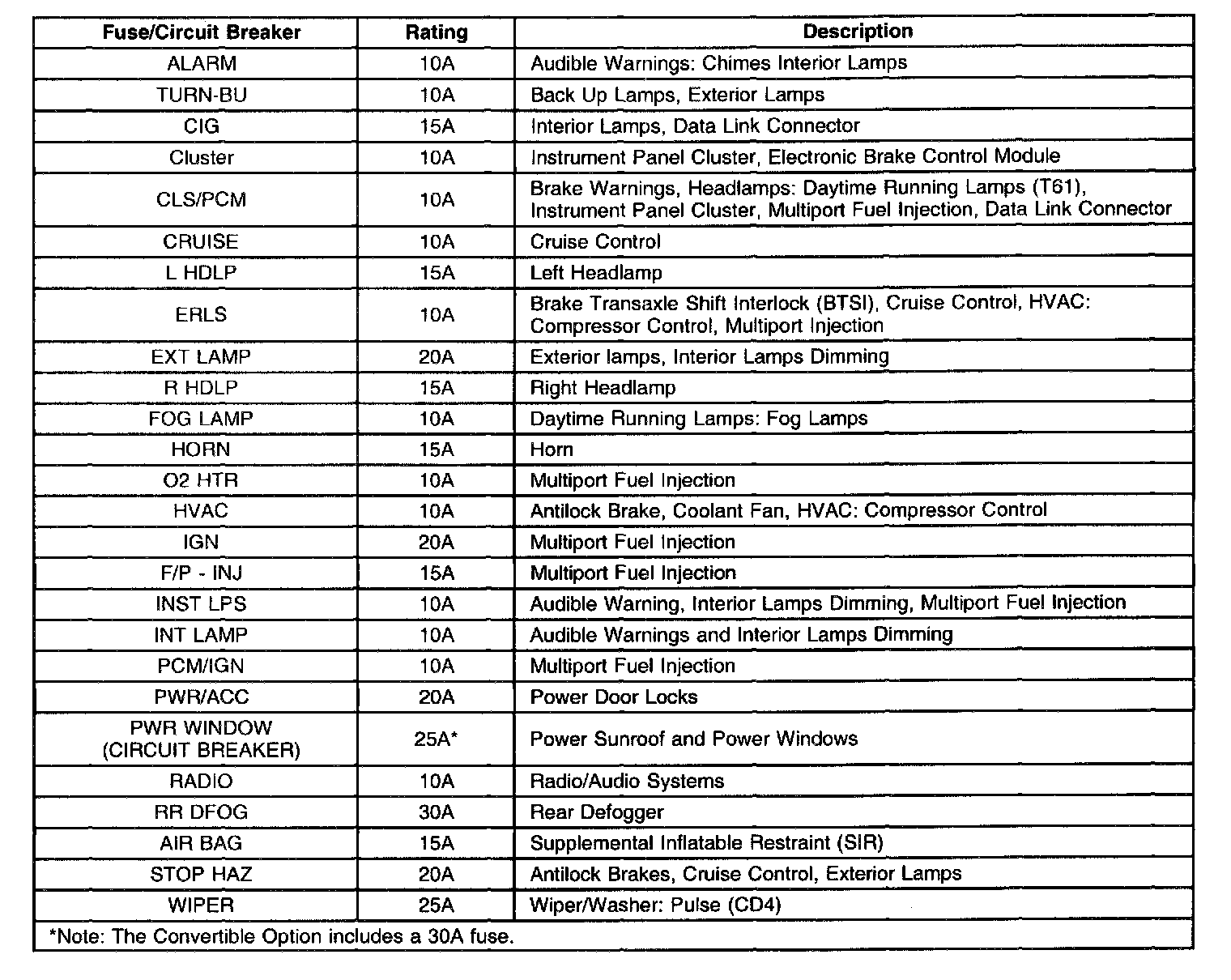

Fuse Block - I/P
Fuse Block - I/P

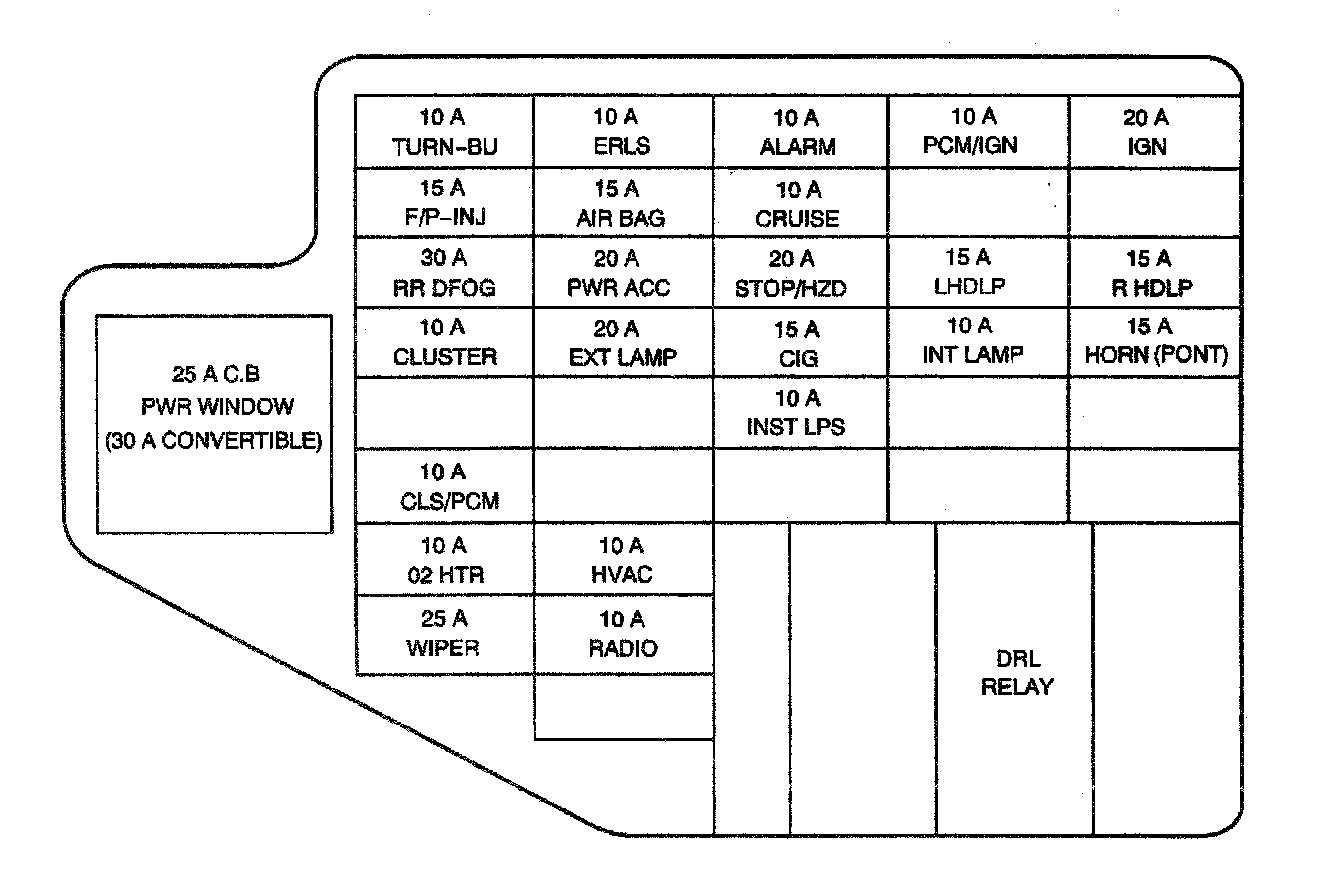

Front View Of Fuse Block:
