Typical Scan Tool Data Values

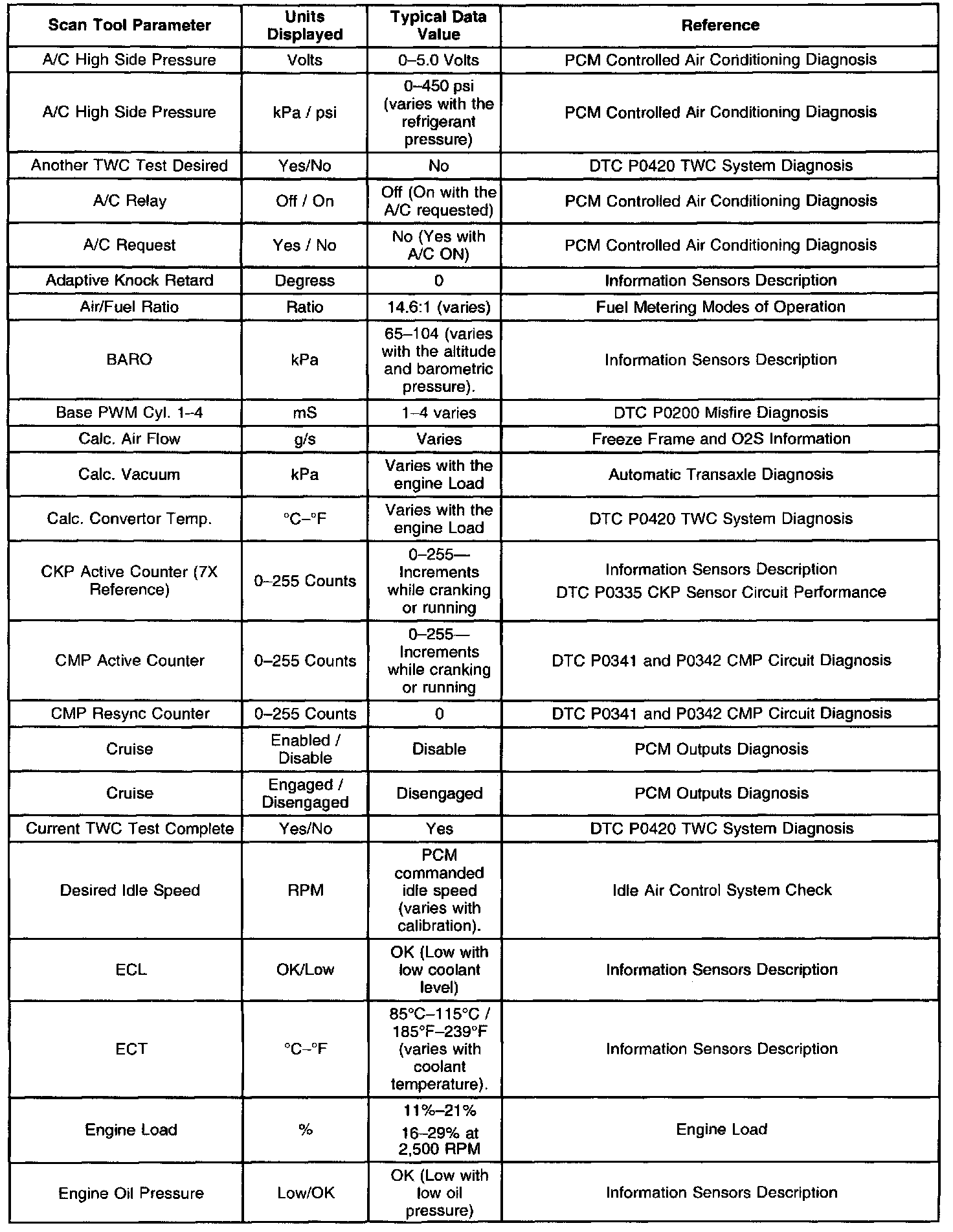

Typical Scan Tool Data Values (Part 1 Of 4):

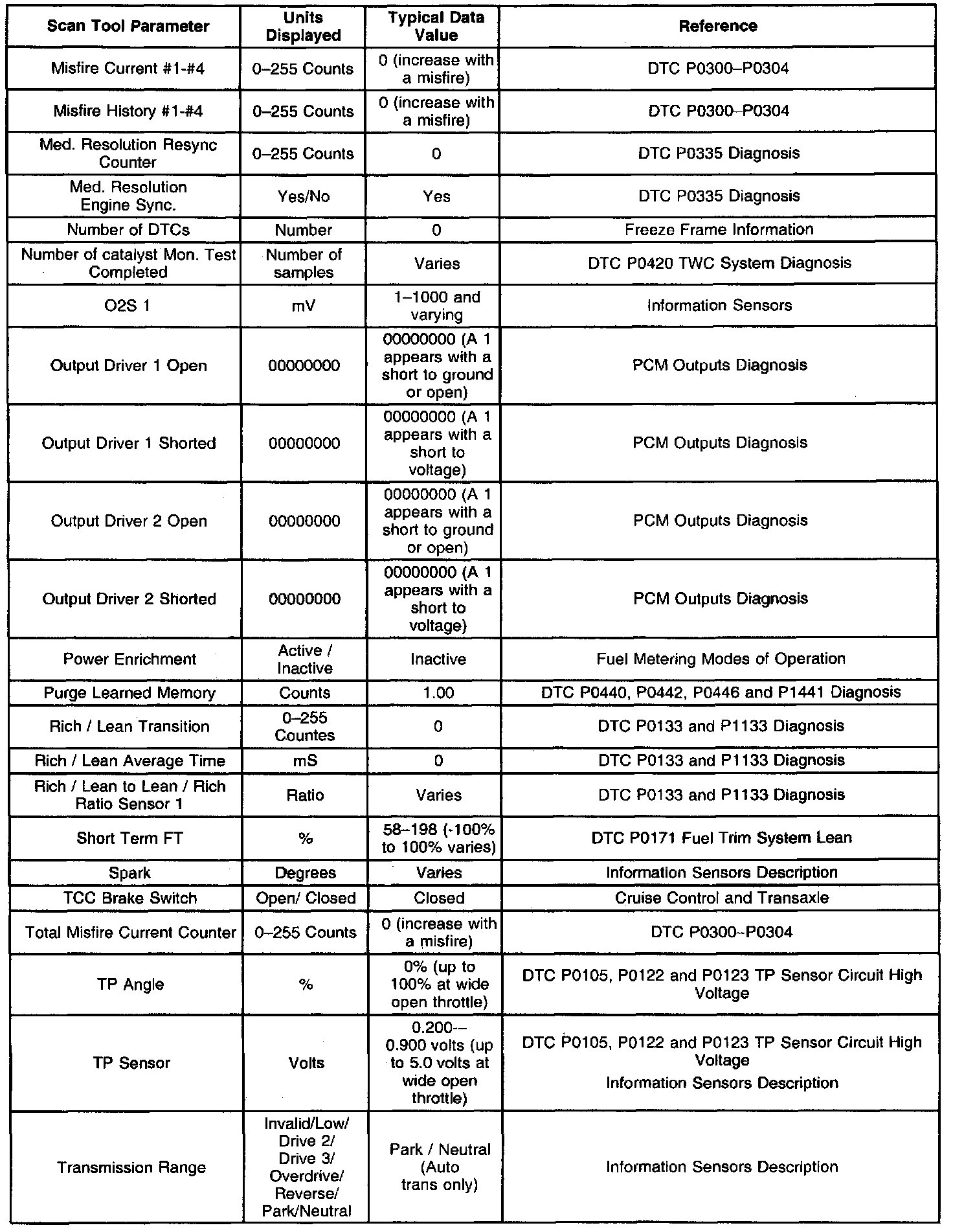

Typical Scan Tool Data Values (Part 2 Of 4):

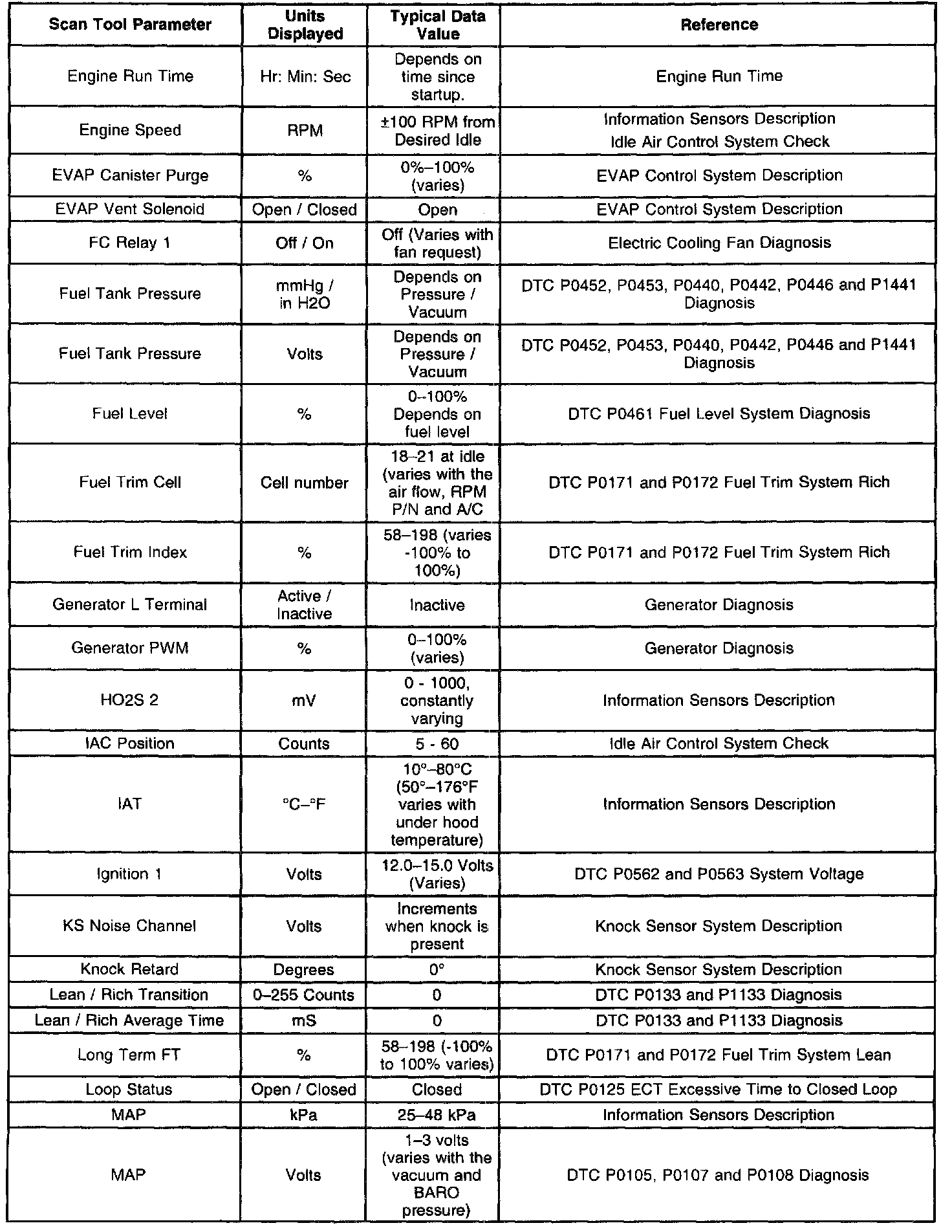

Typical Scan Tool Data Values (Part 3 Of 4):

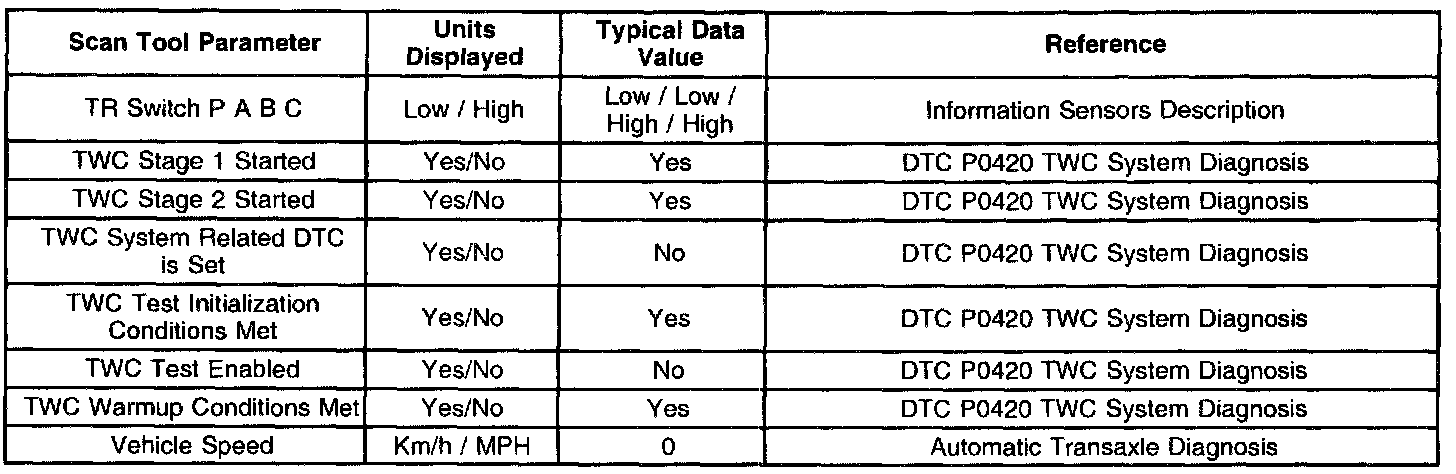

Typical Scan Tool Data Values (Part 4 Of 4):
