Powertrain Controls

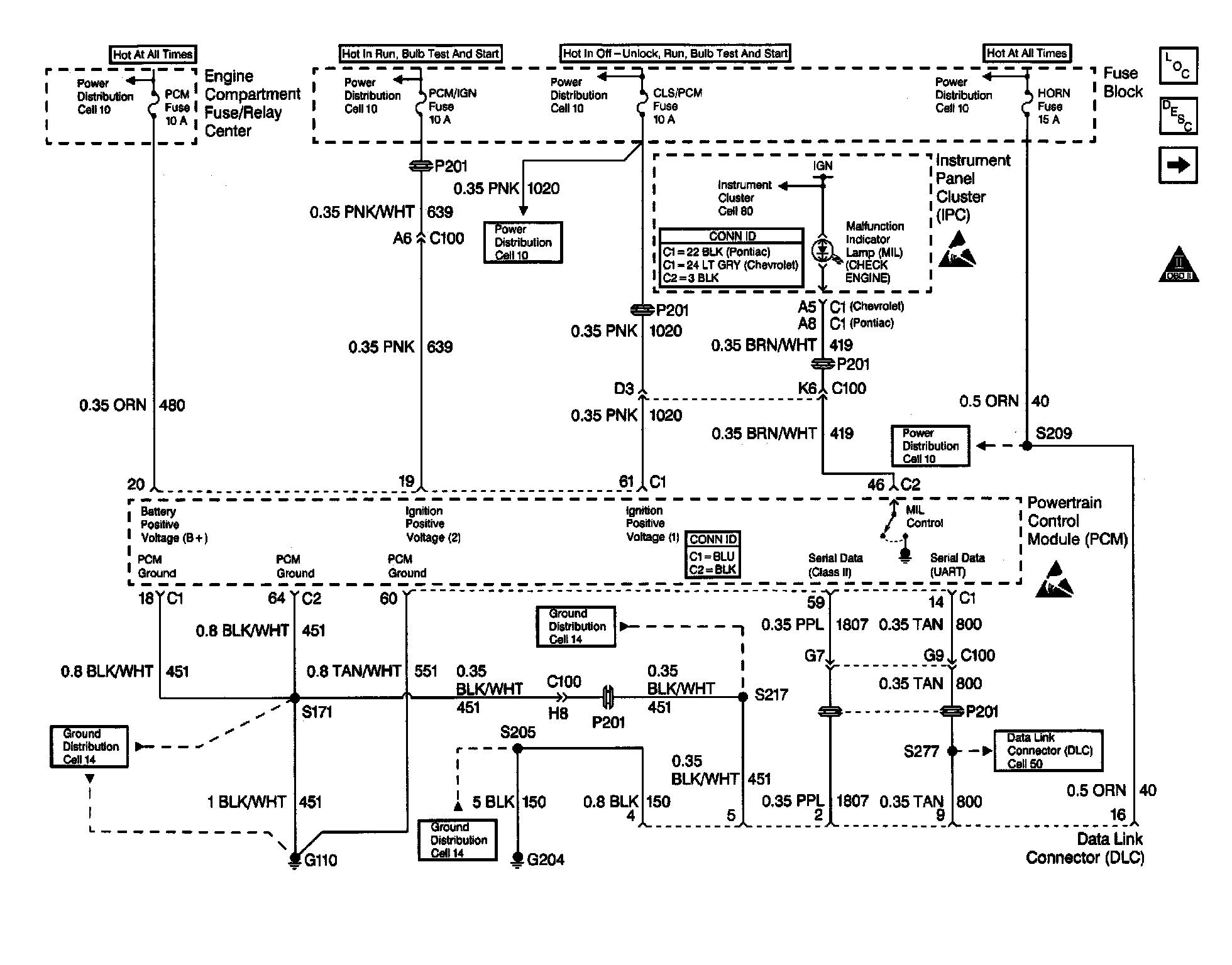

Power, Grounds, MIL and DLC

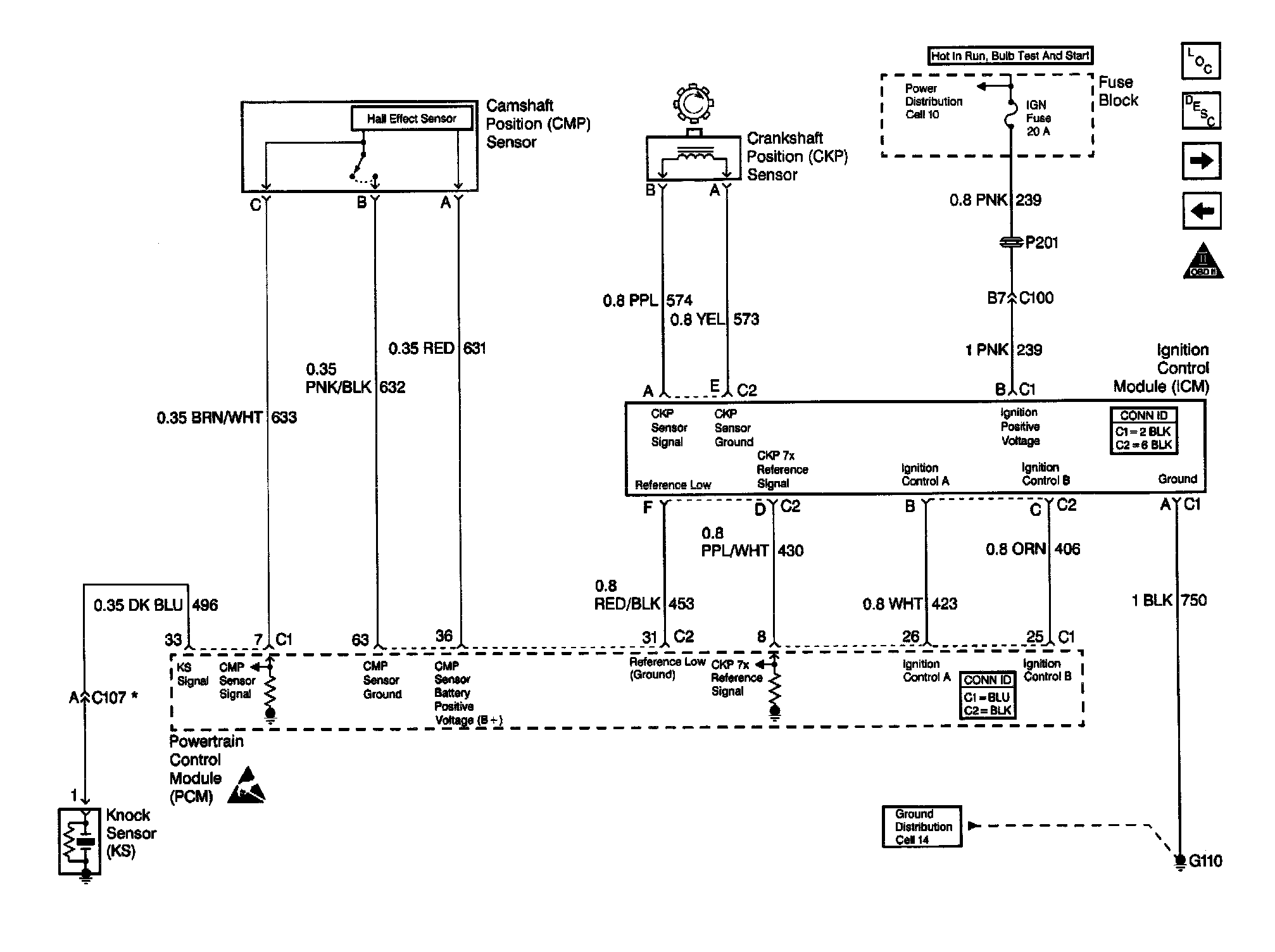

Ignition Controls

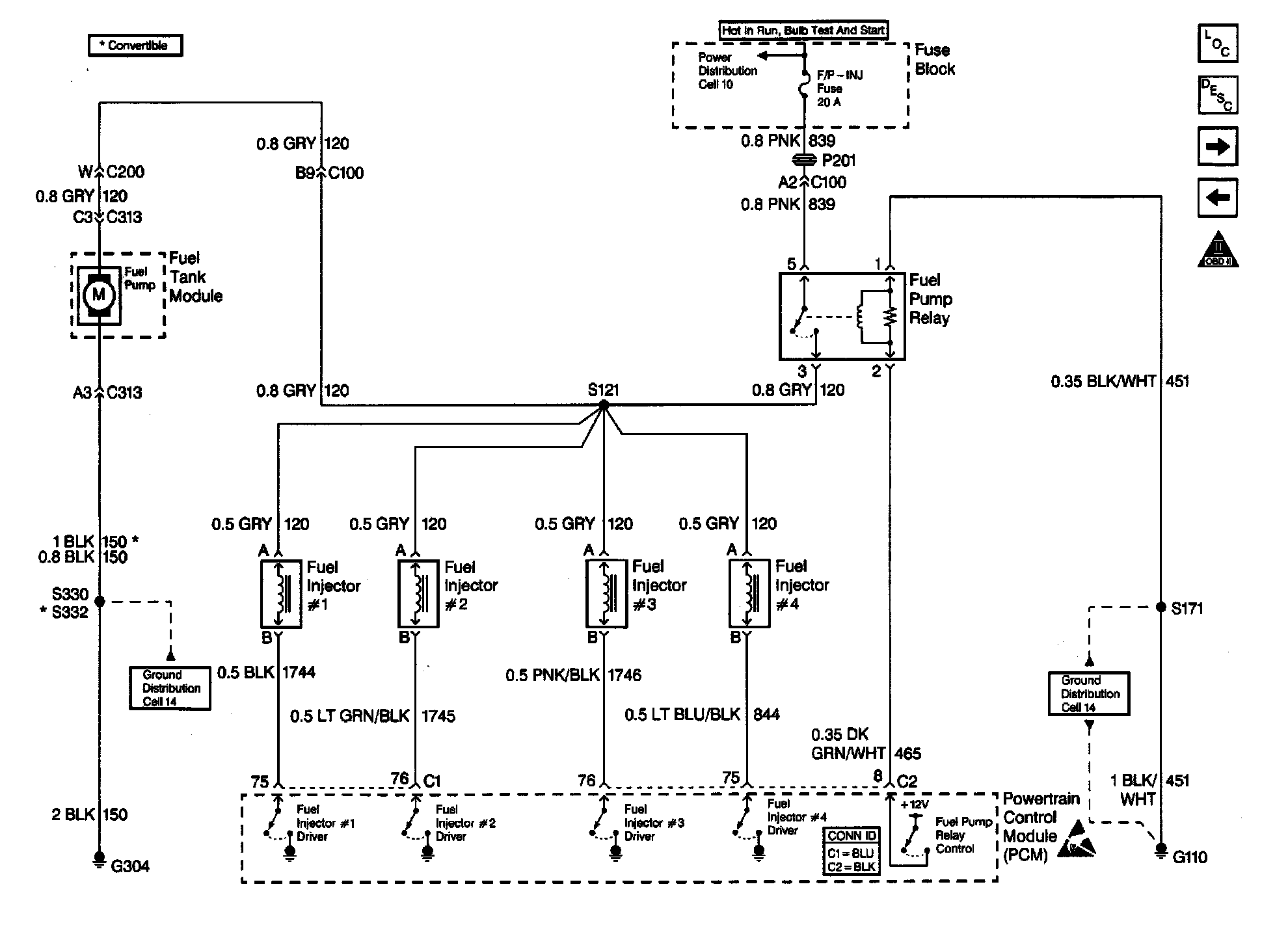

Fuel Controls

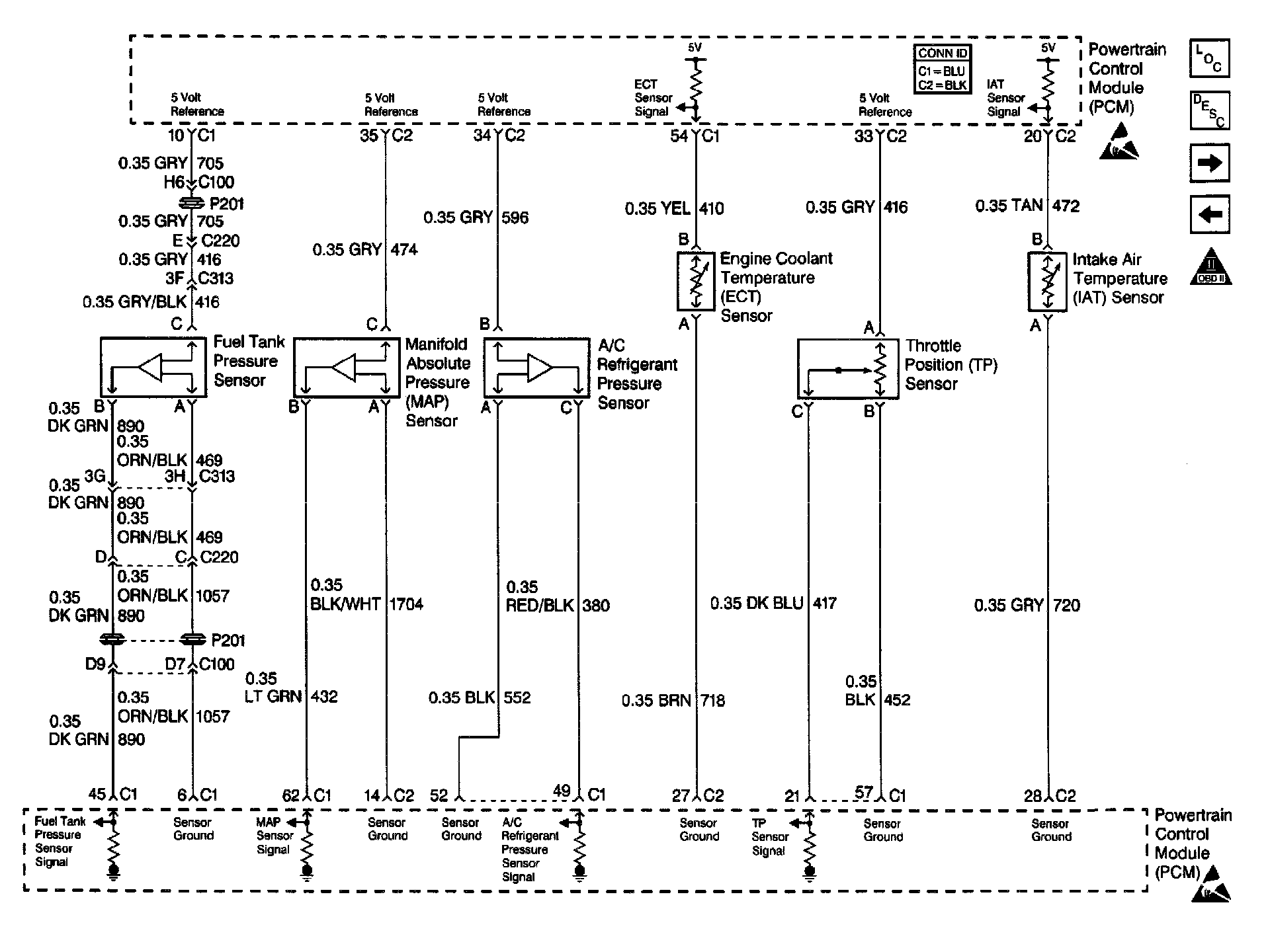

Engine Data Sensors

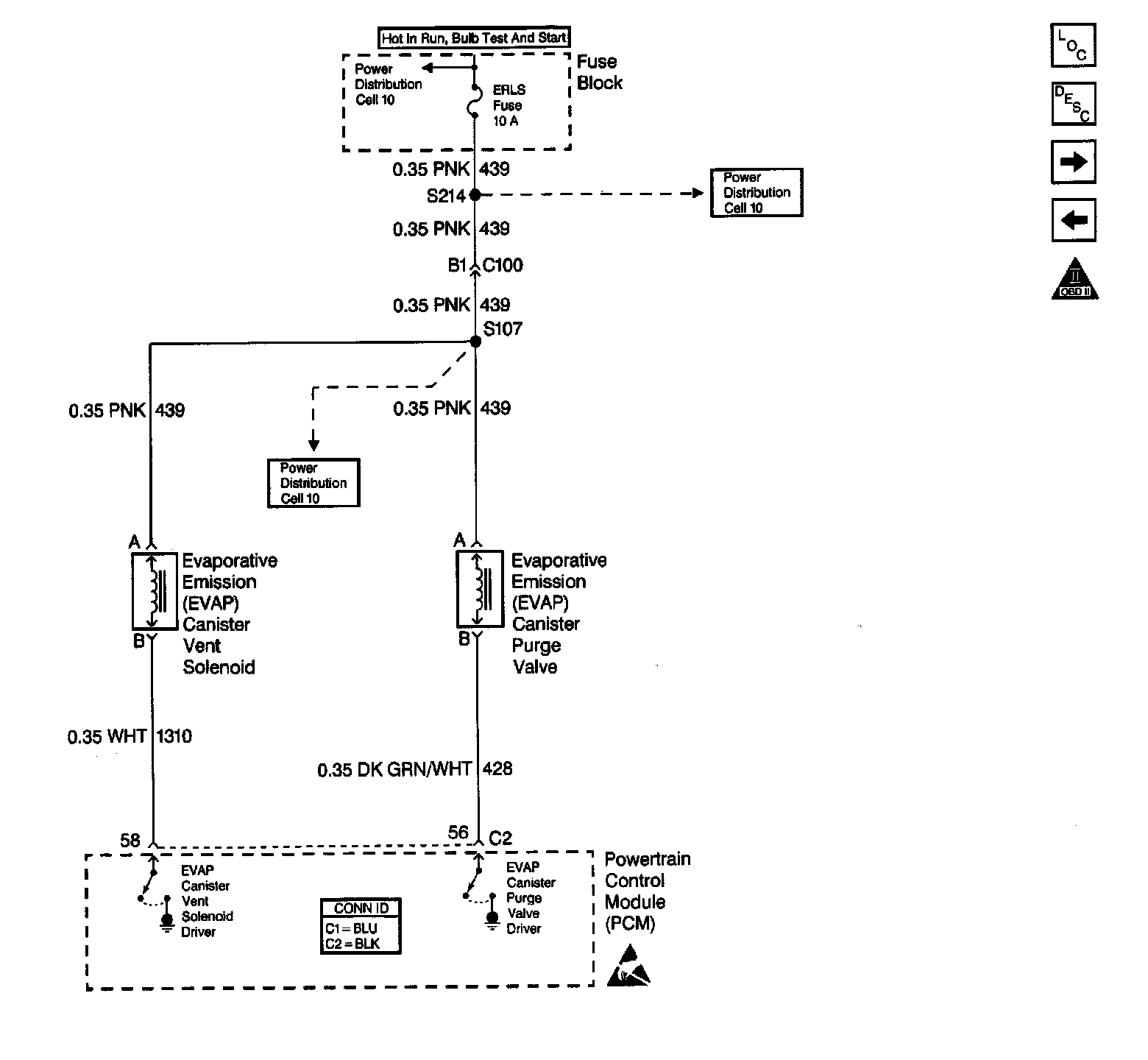

[1][2]EVAP and EGR Controls

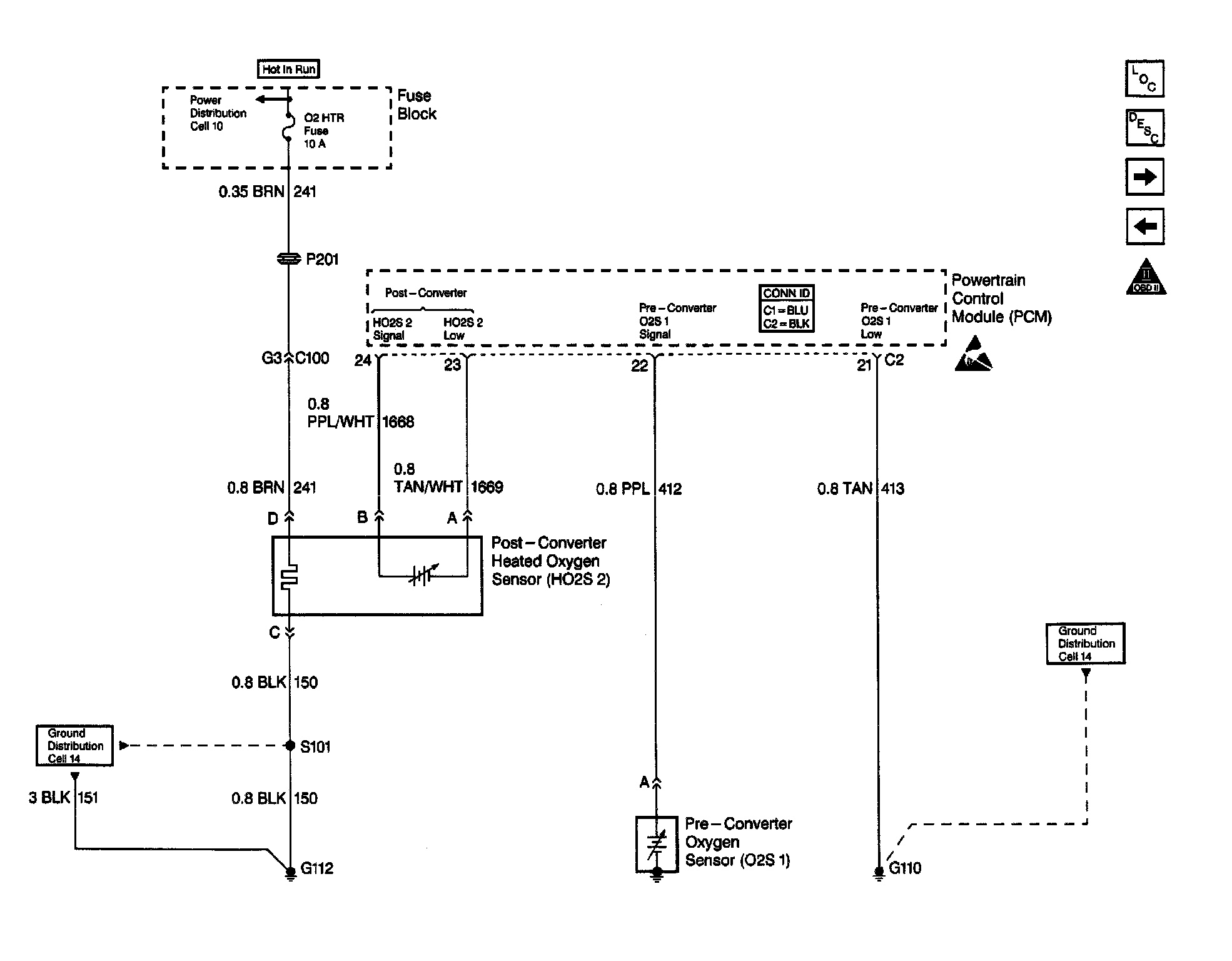

Oxygen Sensors

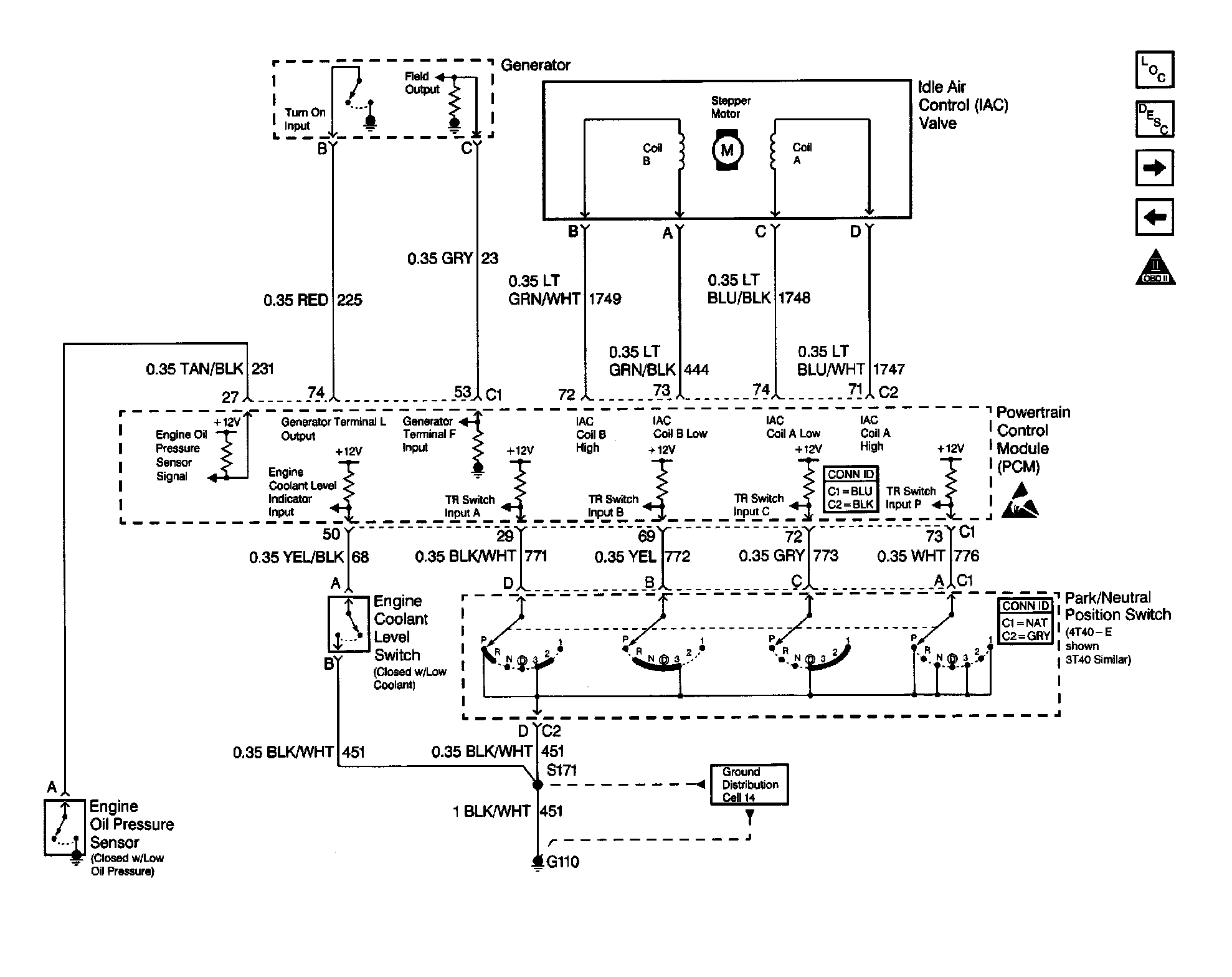

IAC Valve, Generator, TR, Oil and Coolant Switches

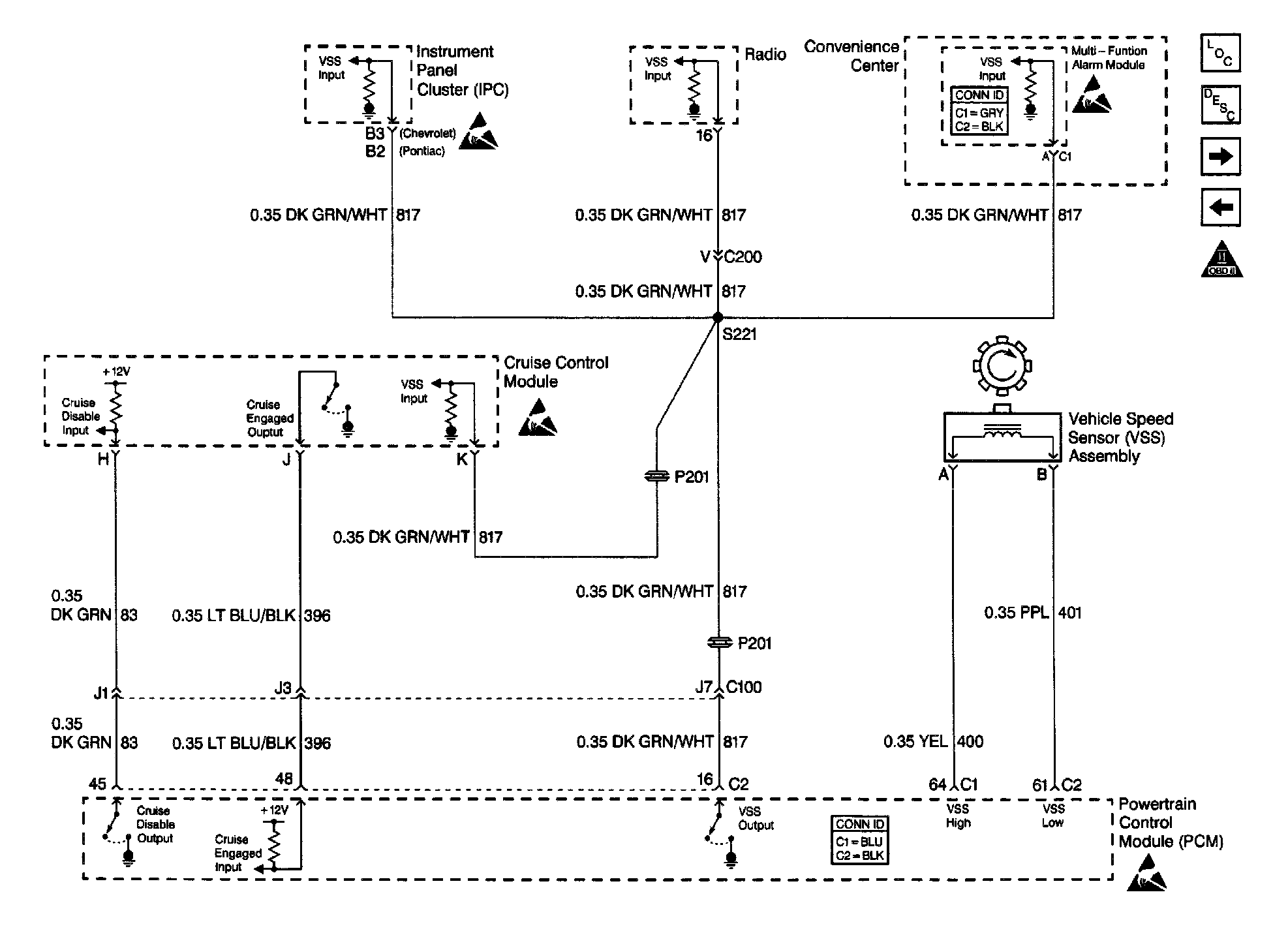

VSS and Cruise Control




Cooling Fan, BATT1, BATT2, IGN and ABS Fuses

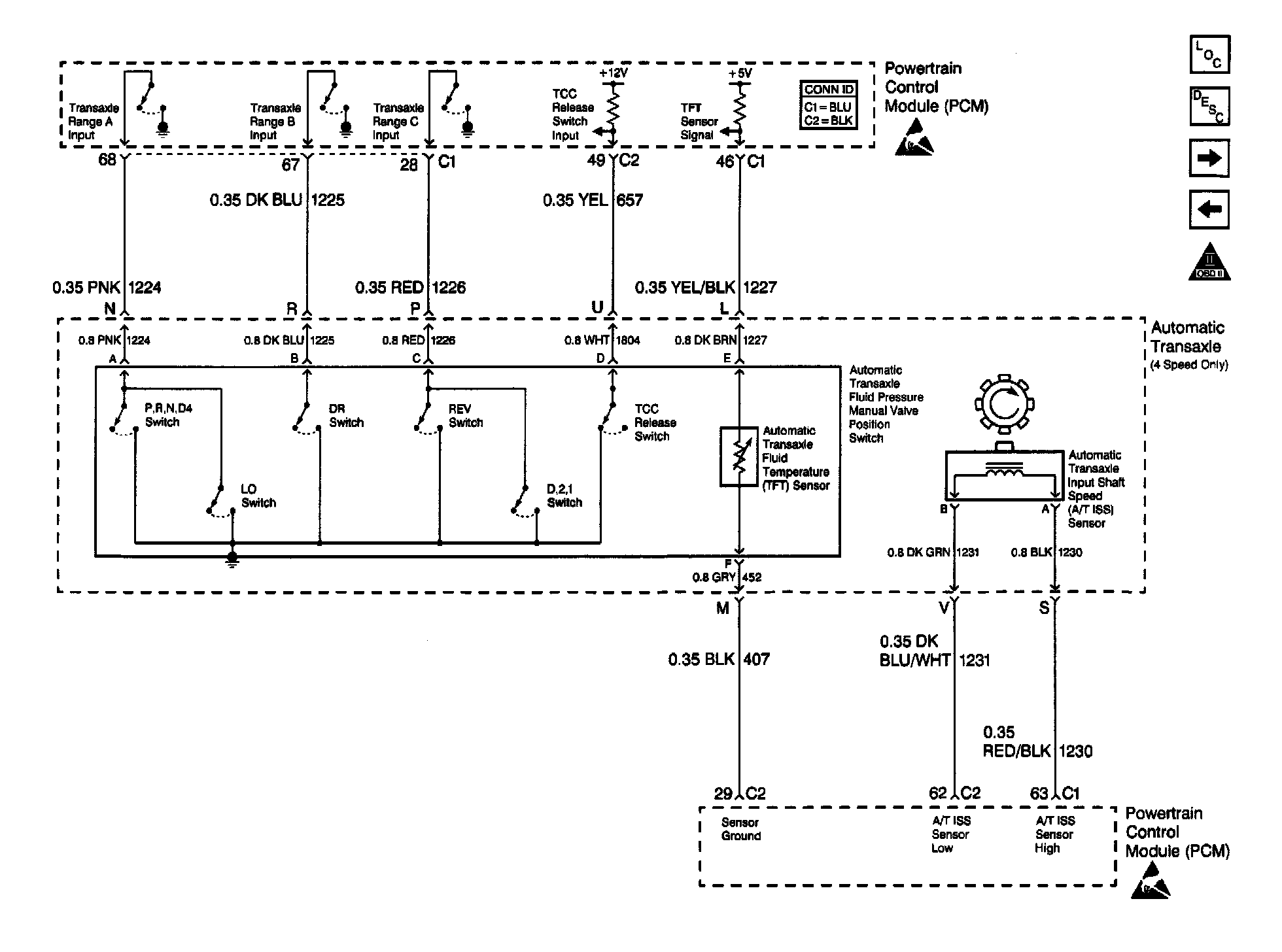

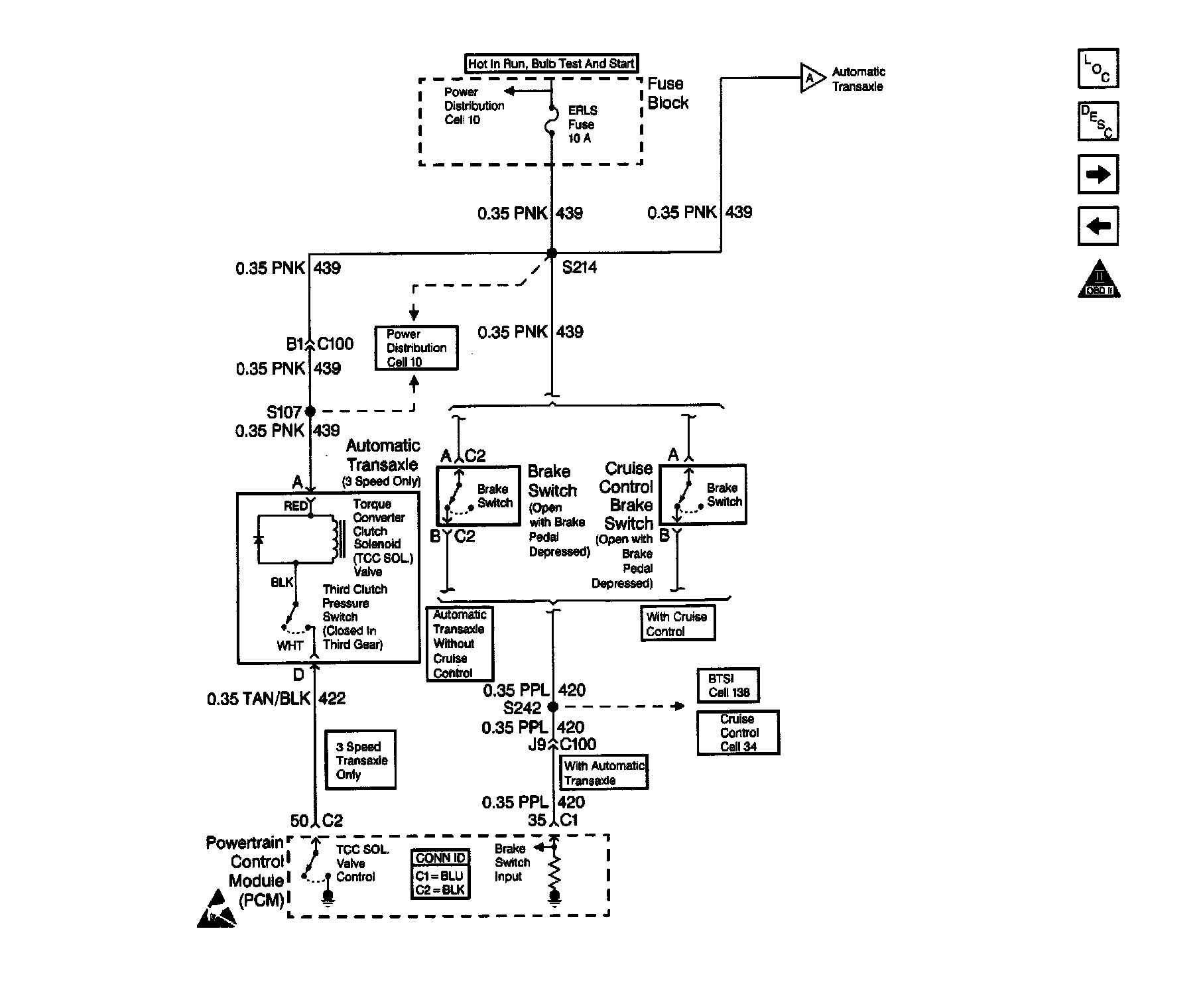

Transaxle Controls and Brake Switches

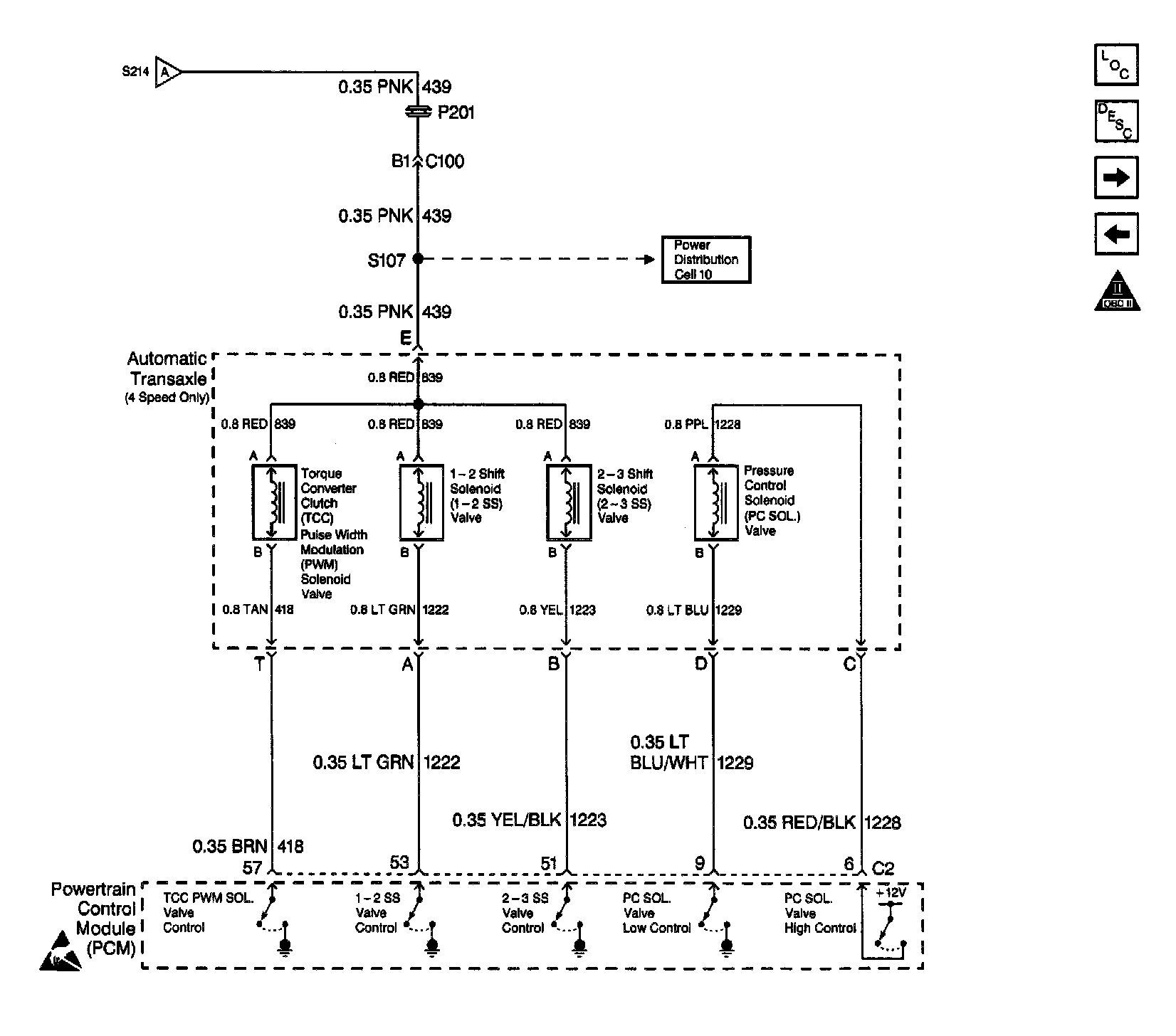

Transaxle Controls

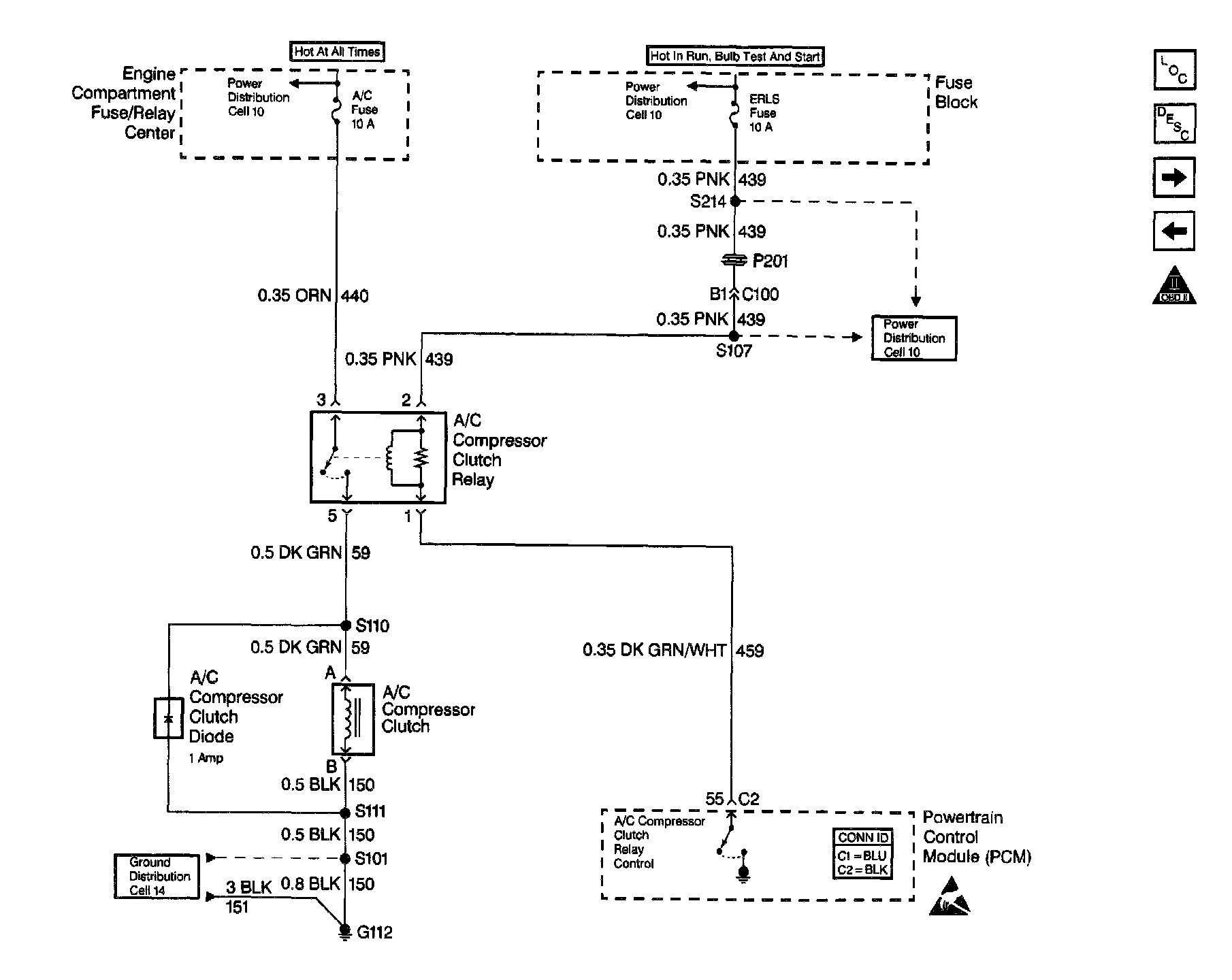

A/C Controls

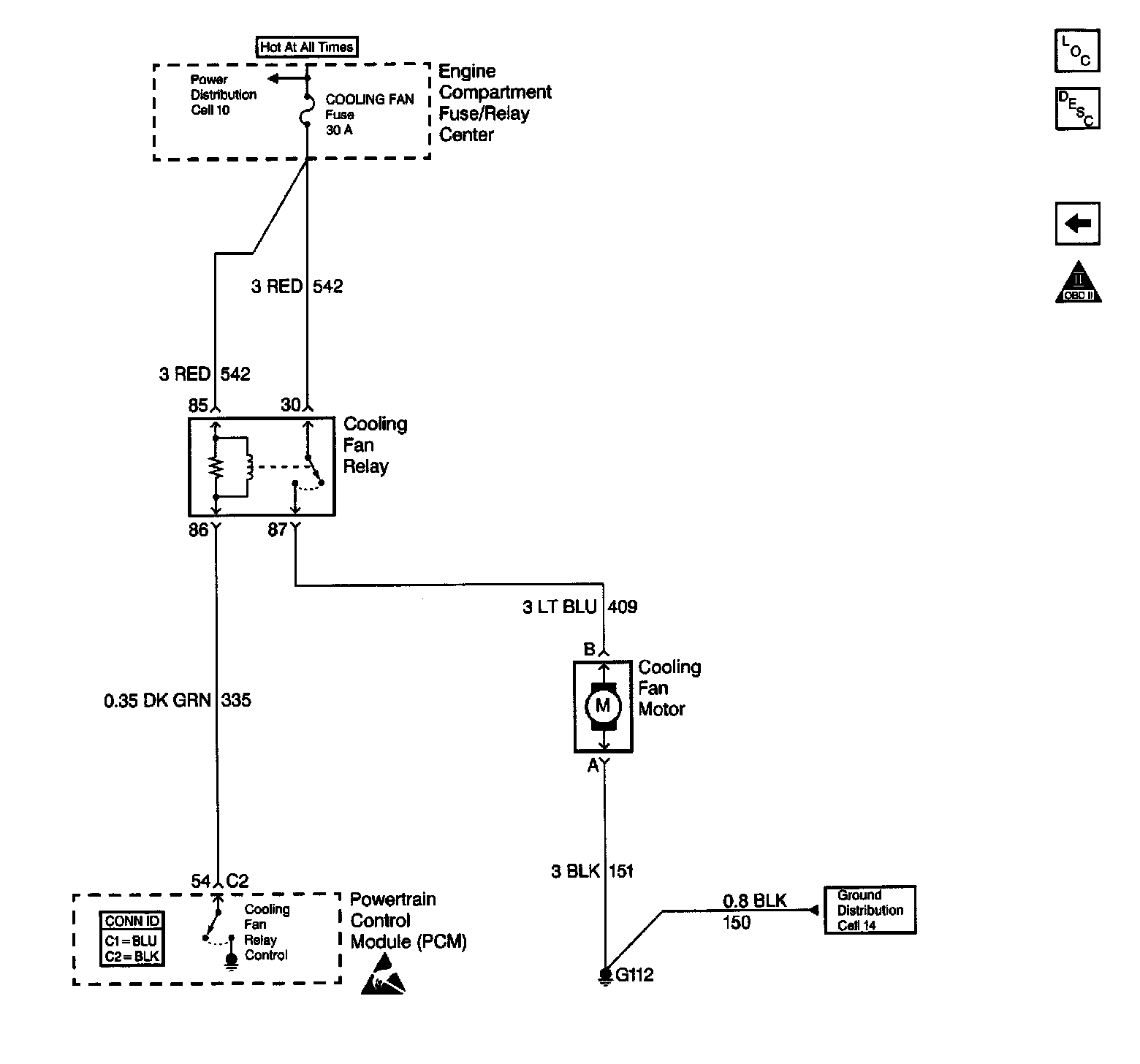

Cooling Fan Controls
