Front Seat Back Frame Replacement

Front Seat Back Frame Replacement

Removal Procedure

Caution: Refer to SIR Handling Caution in Service Precautions.

1. Disable the SIR system. Refer to Disabling the SIR System () in Restraint Systems.
2. Remove the front bucket seat.
3. Remove the seat back trim cover and pad.
4. Remove the fasteners retaining the seat back frame to the recliner.

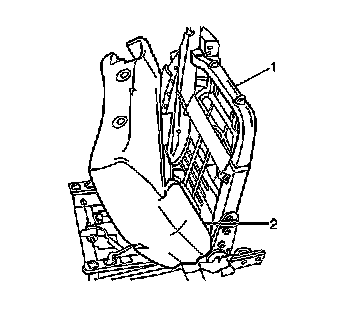

5. Lift straight up on the seat back frame (1) in order to disengage from the lower assembly.

Installation Procedure




1. Slide the seat back frame (1) straight down into recliner and align the fastener holes.
2. Install seat back frame fasteners.
3. Install the seat back trim cover and pad.
4. Install the seat into the vehicle.
5. Enable the SIR system. Refer to Enabling the SIR System () in Seat Belts.
