License Plate Frame: Service and Repair

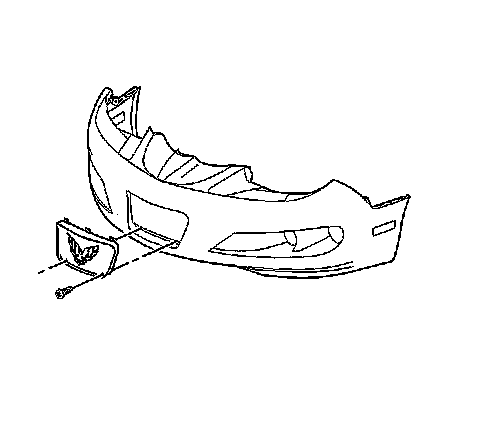

Front License Plate Mount Trim Cover Replacement

Removal Procedure

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.




2. Remove the license pocket cover screws.
3. Remove the license pocket cover from the vehicle.

Installation Procedure




1. Install the license pocket cover to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the license pocket cover screws.

Tighten the license pocket cover screws to 2.0 N.m (18 lb in).

3. Lower the vehicle.
