Body Hinge Pillar Trim Panel Replacement

Body Hinge Pillar Trim Panel Replacement

Removal Procedure

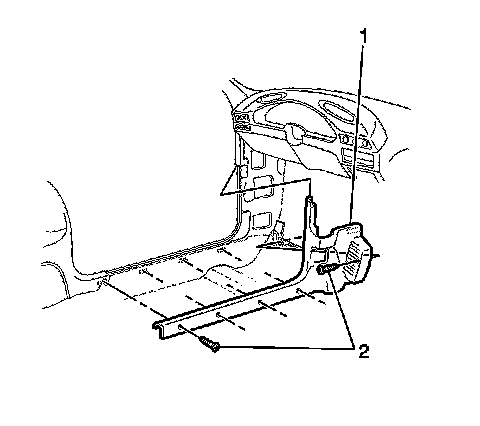

1. Remove the driver-side hinge pillar trim panel bolts/screws (2) from the panel (1).
2. Slide the driver-side hinge pillar trim panel (1) upward and rearward in order to remove.




3. Remove the passenger-side hinge pillar trim panel bolts/screws (2) from the panel (1).
4. Slide the passenger-side hinge pillar trim panel (1) upward and rearward in order to remove.

Installation Procedure




1. Slide the passenger-side hinge pillar trim panel (1) forward and downward in order to install.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the hinge pillar trim panel bolts/screws (2).

Tighten the hinge pillar trim panel bolts/screws (2) to 1.7 N.m (15 lb in).




3. Slide the driver-side hinge pillar trim panel (1) forward and downward in order to install.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the hinge pillar trim panel bolts/screws (2).

Tighten the hinge pillar trim panel bolts/screws (2) to 1.7 N.m (15 lb in).
