Lumbar Motor Replacement

Lumbar Motor Replacement

Removal Procedure

1. Remove the front passenger seat.
2. Remove the adjuster.

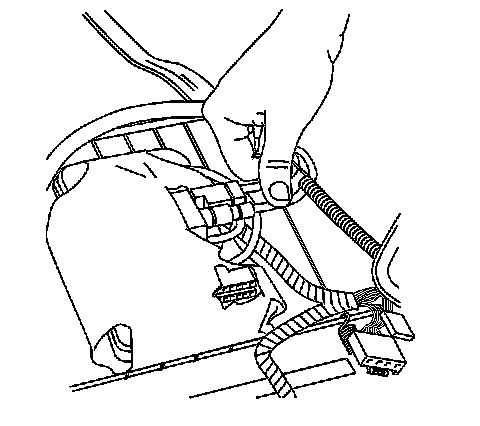

3. Disconnect the air supply hoses from the lumbar module.

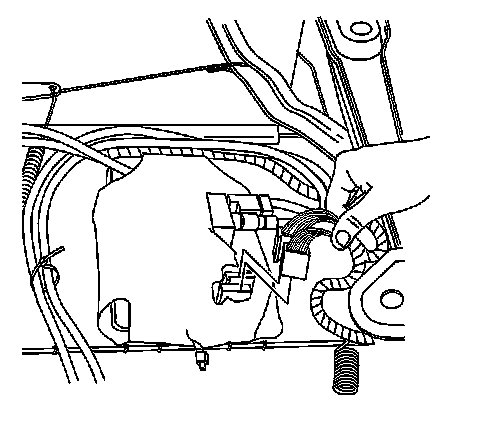

4. Disconnect the electrical connectors.

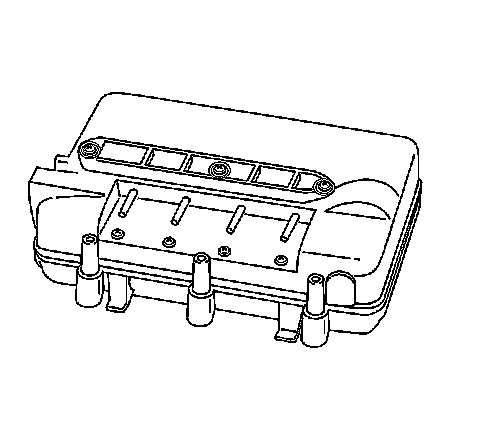

5. Open leather module pouch and slide module out of installed location.

Installation Procedure




1. Install the lumbar module into leather pouch and secure pouch.




2. Connect the electrical connectors.




3. Connect the air supply hoses to the lumbar module.
4. Install the adjuster.
5. Install the front passenger seat.
