Weatherstrip Replacement - Door

REMOVAL PROCEDURE
1. Remove body hinge pillar trim panel.
2. Remove windshield side upper garnish molding (1).
3. Remove rear quarter trim panel.
4. Remove roof lift off window (if equipped).

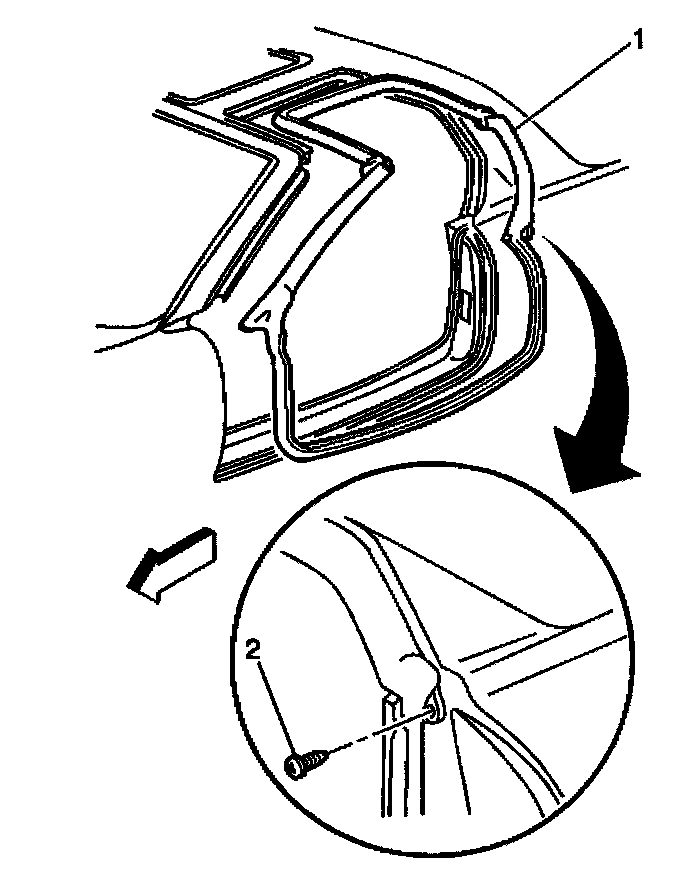

5. Remove lift window body side weatherstrip bolts/screws, if equipped.
6. Remove side door weatherstrip retainers (6).
7. Remove side door weatherstrip by pulling weatherstrip from flange and weatherstrip body retainers (6).

INSTALLATION PROCEDURE
1. Install side door weatherstrip by pulling weatherstrip from flange and weatherstrip body retainers.
2. Install side door weatherstrip retainers (6).
3. Install lift window body side weatherstrip bolts/screws (2), if equipped.
4. Install roof lift off window (if equipped).
5. Install rear quarter trim panel.
6. Install windshield side upper garnish molding.
7. Install body hinge pillar trim panel.
