Acceleration Slip Regulation Indicator Inoperative

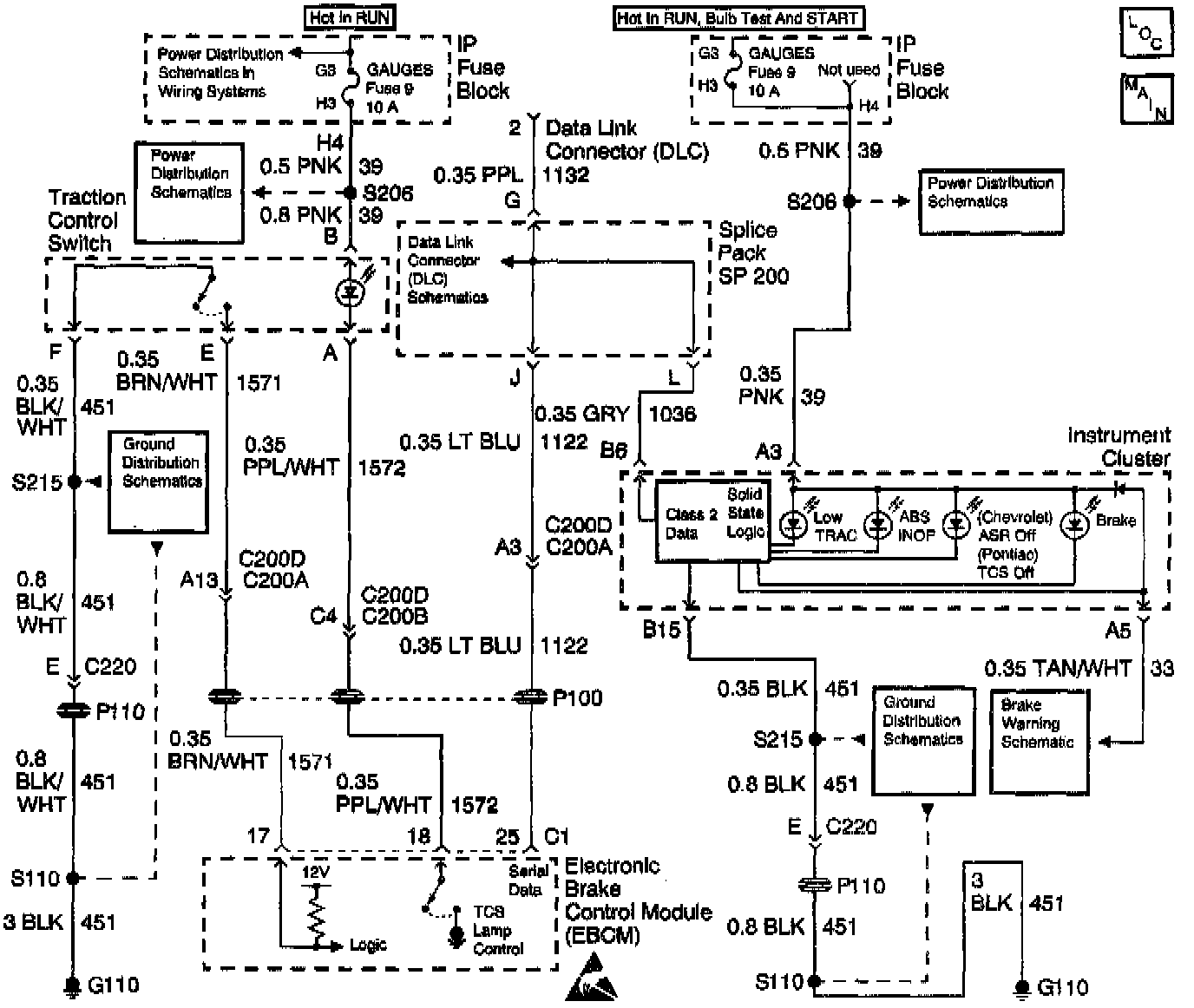

Circuit Description
The ASR OFF Indicator is controlled by the EBCM by sending class 2 messages to the Instrument Panel Cluster (IPC). It is turned on when the EBCM sets a DTC that turns on the ASR OFF indicator. It is also turned on or off when the Accelerator Slip Regulation (ASR) Switch is pressed. The Electronic Brake Control Module (EBCM) supplies 12 volts to the ASR Switch, when the ASR switch is depressed the EBCM sees the voltage go low, and that the ASR switch state has changed. When the EBCM receives that a switch state has changed it turns on or off the ASR and sends a message to the IPC to turn on or off the ASR OFF indicator depending on its previous state.

Diagnostic Aids
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
^ Thoroughly inspect any circuitry that may be causing the complaint for the following conditions:
- Backed out terminals
- Improper mating
- Broken locks
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Physical damage to the wiring harness
The following conditions may cause an intermittent malfunction:
- A poor connection
- Rubbed-through wire insulation
- A broken wire inside the insulation
If an intermittent malfunction exists refer to Inducing Intermittent Fault Conditions for further diagnosis.

Test Description

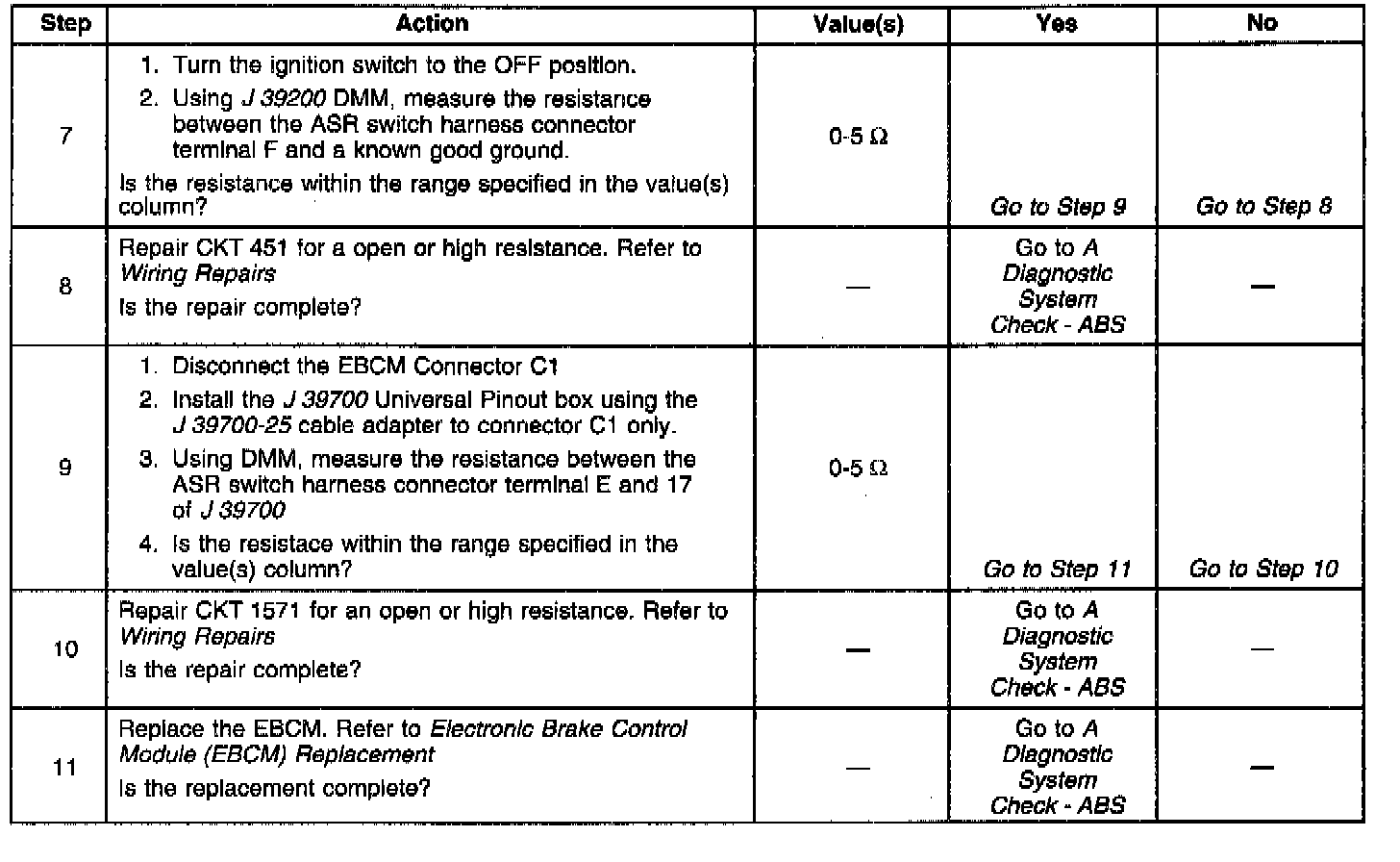

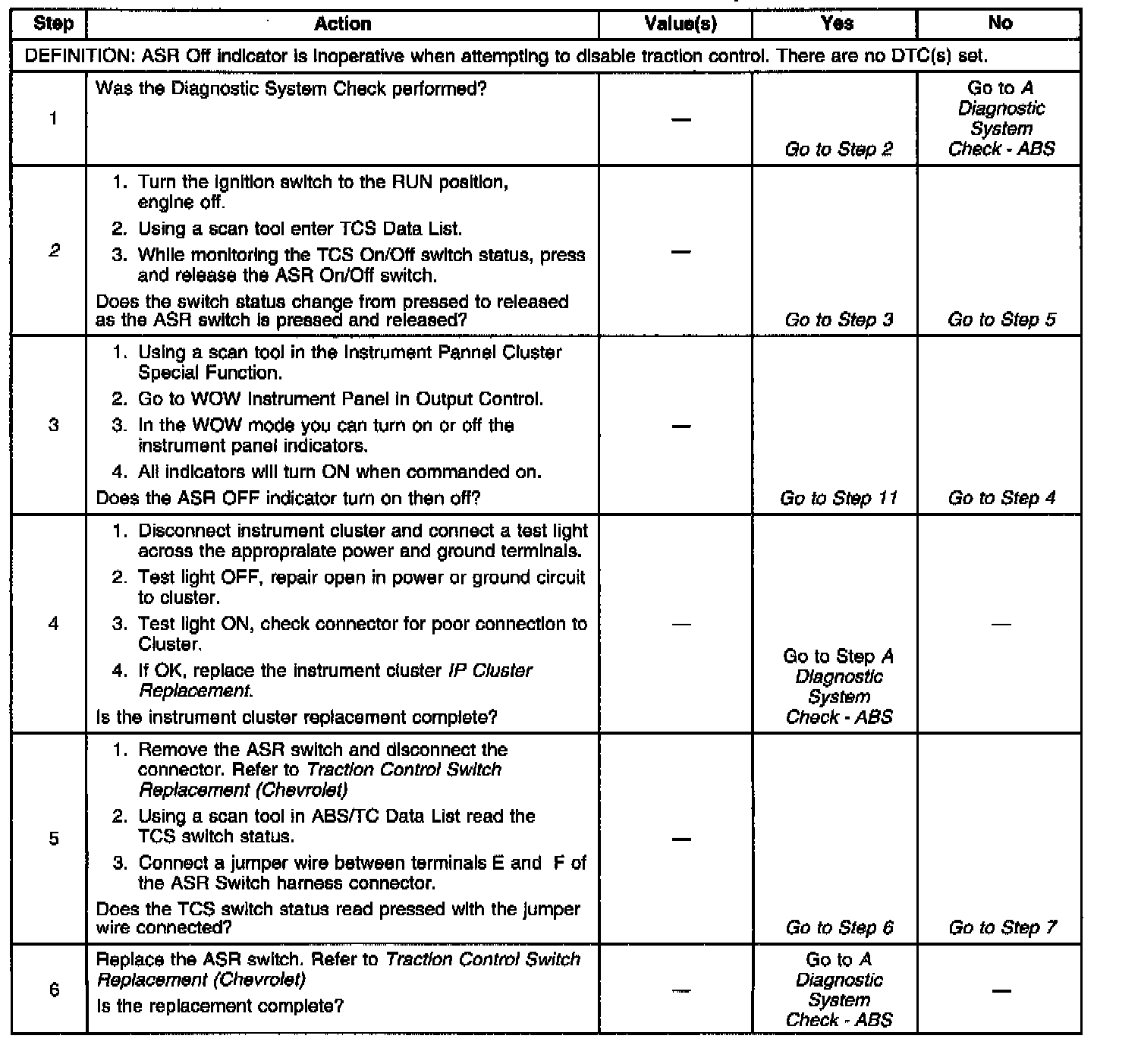

The number(s) below refer to the step number(s) on the diagnostic table.
2. Checks if EBCM is receiving a ASR switch message from the switch.
3. Check if the scan tool can turn on and off the indicator lamps in the instrument cluster.
5. Checks if the EBCM or ASR Switch is at fault.
