Brake Caliper Bracket Replacement - Front

Removal Procedure





1. Remove the inner and outer pads. Refer to Brake Pads Replacement (Front).

Caution: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.

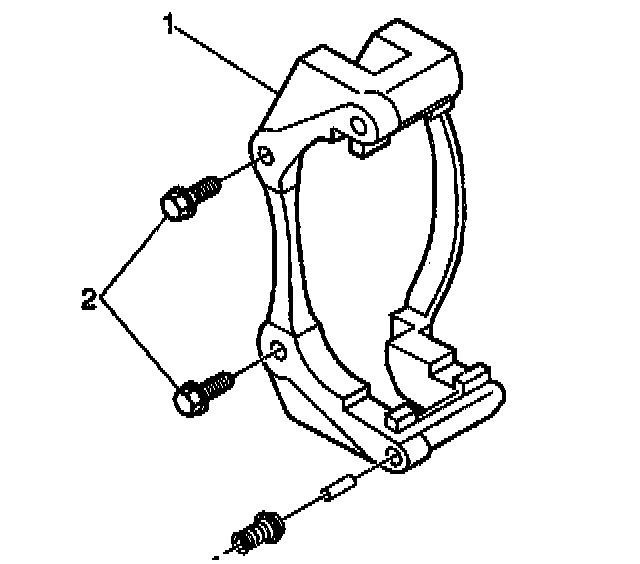

2. Remove the caliper bracket bolts (2).
3. Remove the caliper bracket (1).





4. Remove the following components from the bracket (1):
^ The boot bolts (2)
^ The bushings
5. Inspect the bracket for cracks.
6. Replace the bracket if necessary.

Installation Procedure

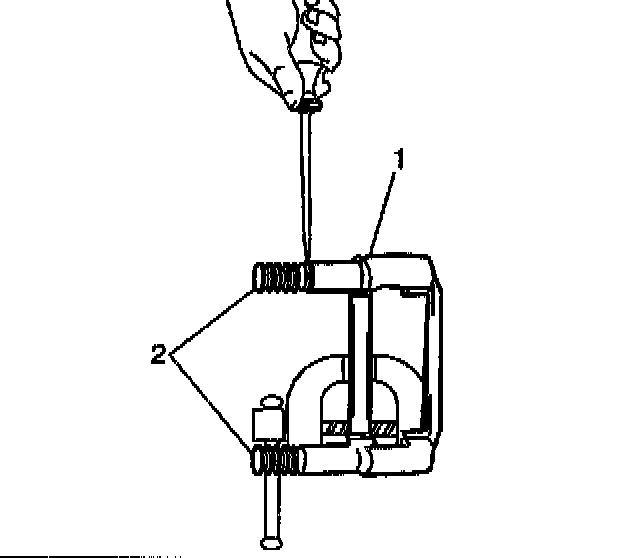

1. Lubricate the following components with silicone grease:
^ New bolt boots
^ New bushings

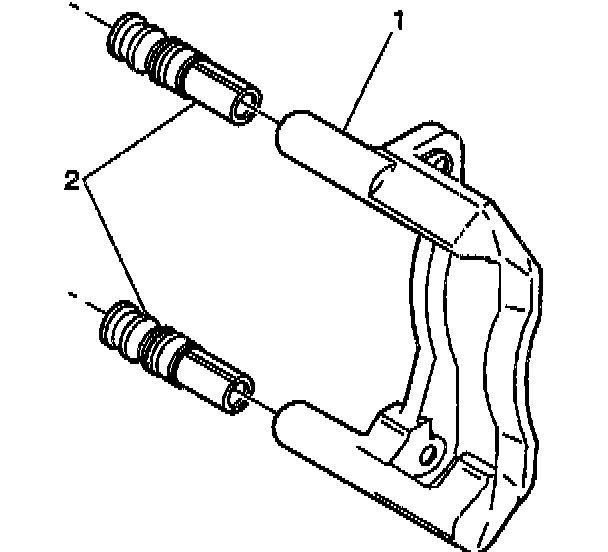

2. Install the following components into the caliper bracket (1):
^ The bolt boots (2)
^ The bushings

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the caliper bracket with the bracket bolts.
^ Tighten the caliper bolts to 100 Nm (74 lb ft).
4. Install the inner and outer brake pads. Refer to Brake Pads Replacement (Front).
