Vacuum Reservoir HVAC: Service and Repair

VACUUM TANK REPLACEMENT

REMOVAL PROCEDURE




1. Raise and suitably support the vehicle.
2. Remove the front end fascia outer deflector.

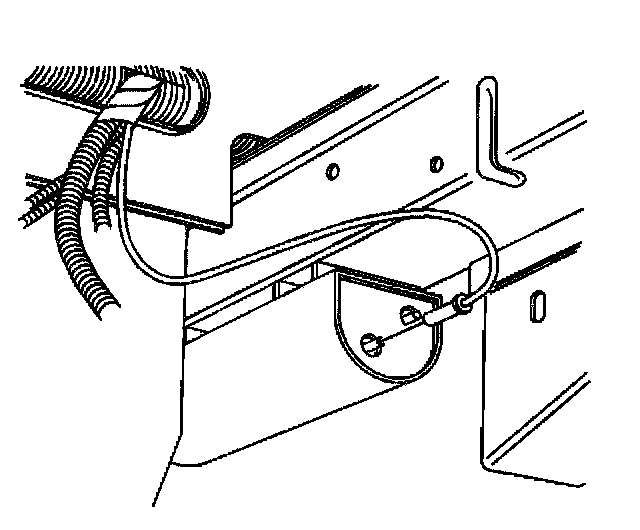

3. Disconnect the vacuum line from the vacuum tank.

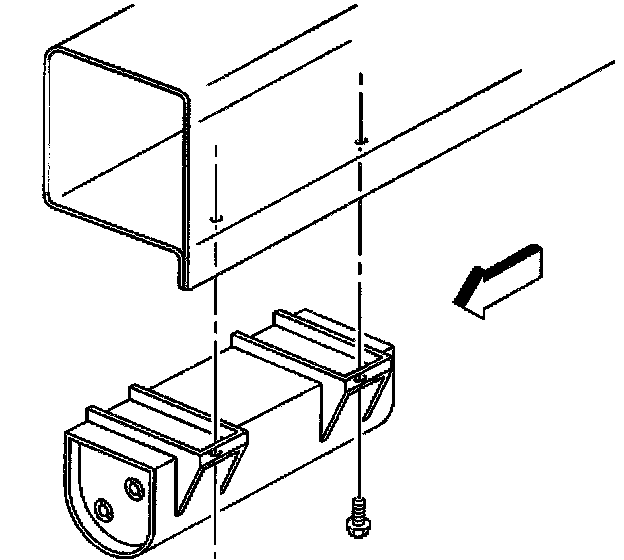

4. Remove the vacuum tank mounting bolts
5. Remove the vacuum tank.

INSTALLATION PROCEDURE




1. Install the vacuum tank.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the vacuum tank mounting bolts.

Tighten
Tighten the vacuum tank mounting bolts to 1.9 N.m (17 lb in).




3. Connect the vacuum line to the vacuum tank.
4. Install the front end fascia outer deflector.
5. Lower the vehicle.
