High Mounted Stoplamp Replacement

REMOVAL PROCEDURE

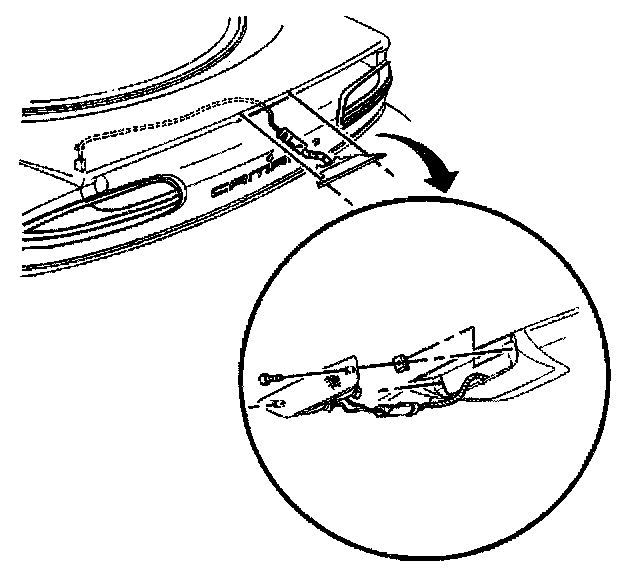

1. Remove the high mount stoplamp screws.
2. Remove the liftgate window finishing lace.




3. Disconnect the high mount stoplamp connector from the electrical harness.




4. Remove the high mount stoplamp from the rear end spoiler.

INSTALLATION PROCEDURE

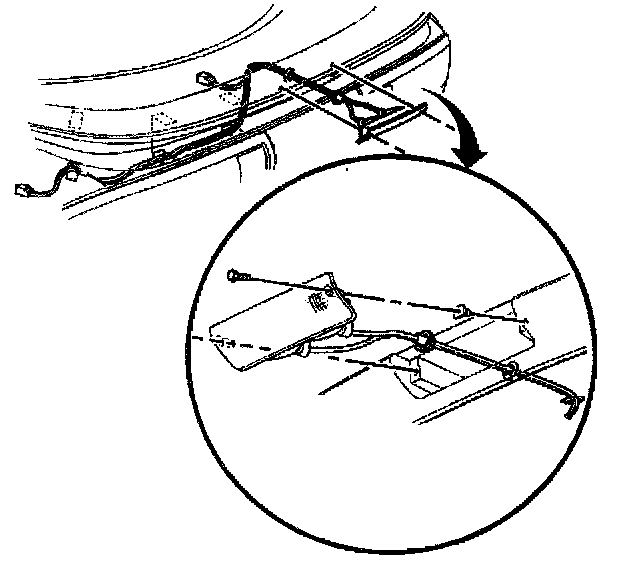

1. Install the high mount stoplamp to the rear end spoiler.




2. Connect the high mount stoplamp connector to the electrical harness.
3. Install the liftgate window finishing lace.

NOTE: Refer to Fastener Notice in Service Precautions.




4. Install the high mount stoplamp screws.

Tighten
Tighten the high mount stoplamp screws to 1.7 N.m (15 lb in).
