Radiator Hose Replacement - Outlet

Removal Procedure





1. Drain the cooling system.
2. Disconnect the intake air temperature (IAT) sensor electrical connector.





3. Remove the air intake duct resonator.

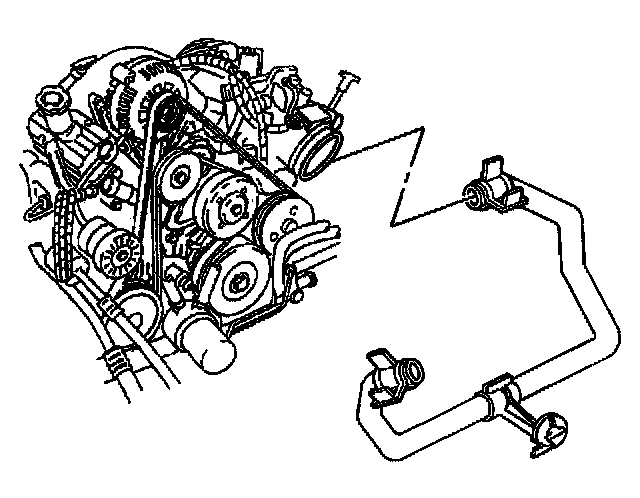

4. Remove the outlet hose from the water pump.
5. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

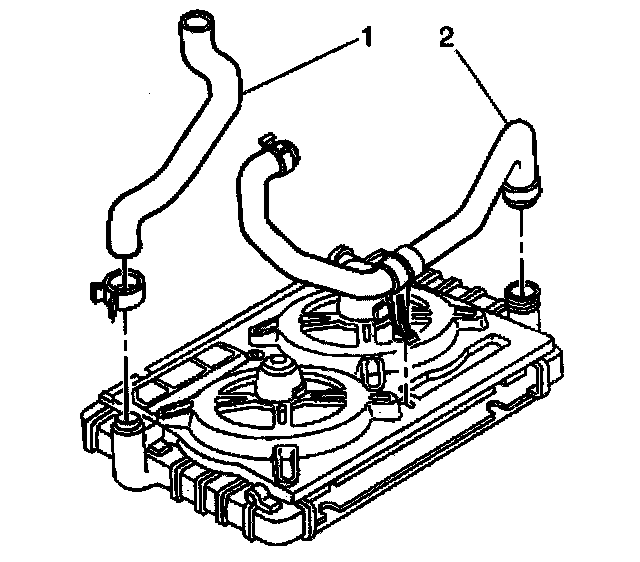

6. Remove the outlet hose (2) from the radiator.
7. Remove the hose support from the fan shroud.

Installation Procedure





1. Install the outlet hose support to the fan shroud.
2. Install the outlet hose (2) to the radiator.
3. Lower the vehicle.





4. Install the outlet hose to the water pump.





5. Install the air intake duct resonator.





6. Connect the IAT sensor electrical connector.
7. Refill the cooling system.
