Evaporative Emission Control Canister: Service and Repair

REMOVAL PROCEDURE

Tools Required
^ J 34730-1A Fuel Pressure Gauge
^ J 42960-1 Fuel Drain Hose
^ J 42960-2 Fuel Flapper Door Holder

CAUTION: Refer to the Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Relieve the fuel system pressure. Refer to the Fuel Pressure Relief Procedure. Service and Repair
3. Drain the fuel tank. Refer to Fuel Tank Draining Procedure. Procedures
4. Remove the fuel tank.

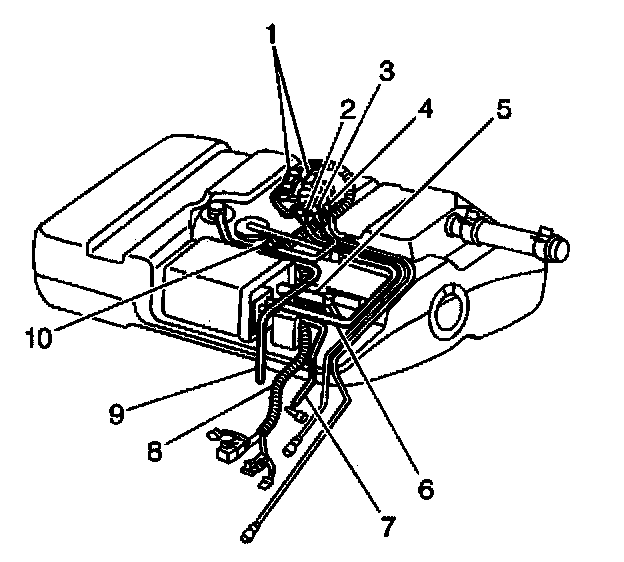

6. Disconnect the EVAP purge pipe (7) from the EVAP canister.
7. Disconnect the vent hose (5) from the EVAP canister.

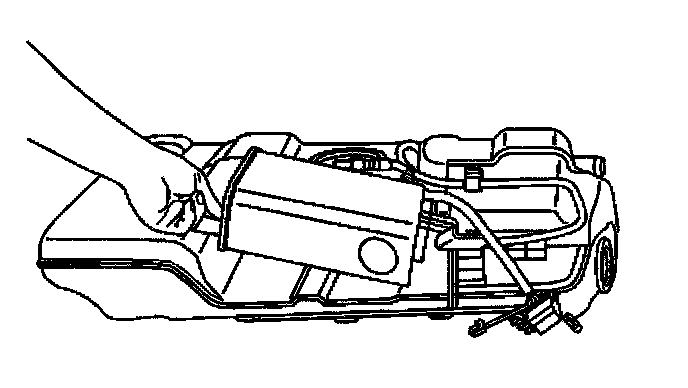

8. Carefully bend the bracket in order to remove the EVAP canister from the bracket.

INSTALLATION PROCEDURE




1. Install the EVAP canister to the bracket.




2. Connect the vent hose (5) to the EVAP canister.
3. Connect the EVAP purge pipe (7) to the EVAP canister.
4. Connect the fill limiter vent valve pipe (6) to the EVAP canister.
5. Install the fuel tank.
6. Refill the fuel tank.
7. Install the fuel filler cap.
8. Connect the negative battery cable.
9. Inspect for leaks.
9.1. Turn ON the ignition for 2 seconds.
9.2. Turn OFF the ignition for 10 seconds.
9.3. Turn ON the ignition.
9.4. Check for fuel leaks.
