Front

Removal Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

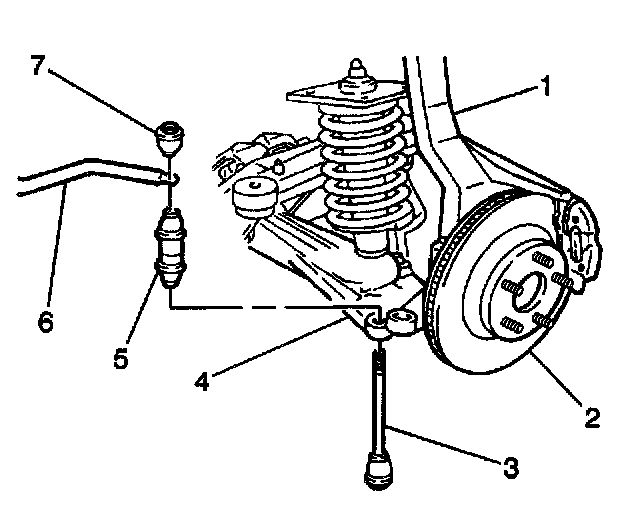

2. Remove the stabilizer shaft upper nut and bushing (7).
3. Remove the stabilizer shaft bolt (3).
4. Remove the stabilizer shaft spacer (5) between the lower control arm (4) and stabilizer shaft (6).

Installation Procedure





1. Install the stabilizer shaft spacer (5) between the lower control arm (4) and the stabilizer shaft (6).
2. Install the stabilizer shaft bolt (3).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the stabilizer shaft upper nut and bushing (7).
- Tighten the stabilizer shaft upper nut and bushing (7) to 23 Nm (17 ft. lbs.).
4. Lower the vehicle.
