Shift Cable: Adjustments

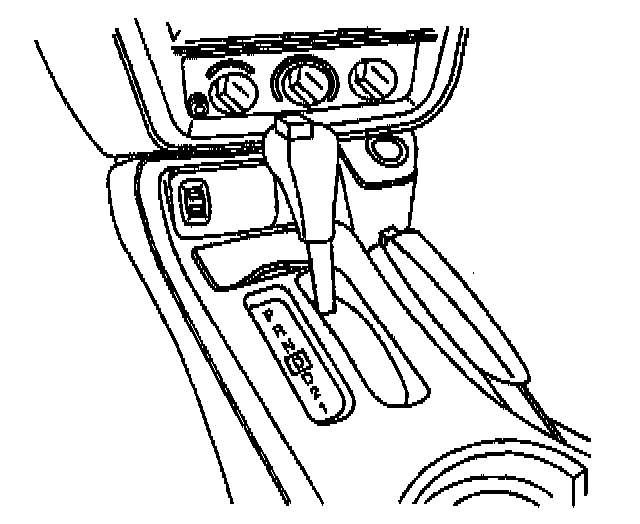

1. Position the transmission shift control lever into park.
2. Apply the park brake.
3. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

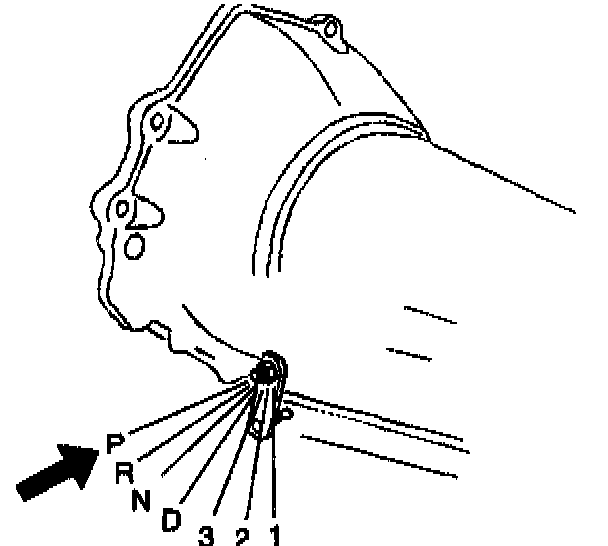

4. Position the transmission range selector lever to park. Rotate the range select lever clockwise until it reaches the full mechanical stop position.

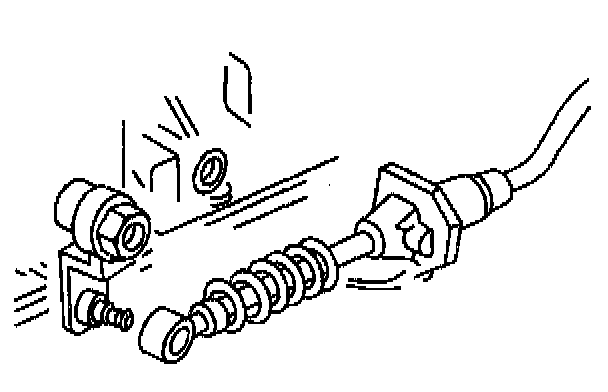

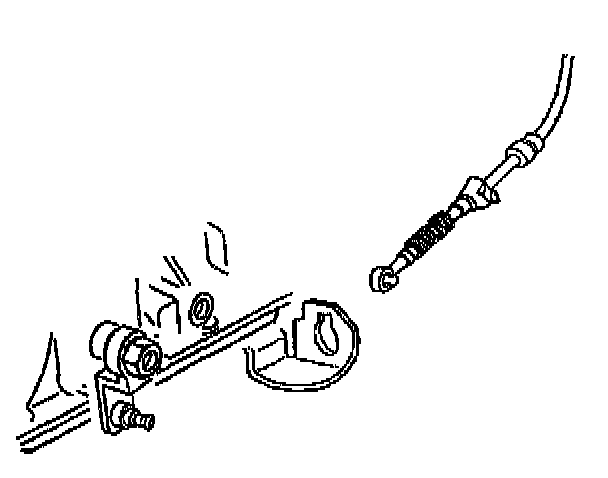

5. Snap the transmission shift cable into the bracket with the cable adjustment button up.





6. Snap the shift cable onto the range selector lever pin.
7. Press cable adjustment button down.
8. Insert the retainer to the fitting of the shift cable.
9. Remove the safety stands.
10. Lower the vehicle.
