Starter Heat Shield: Service and Repair

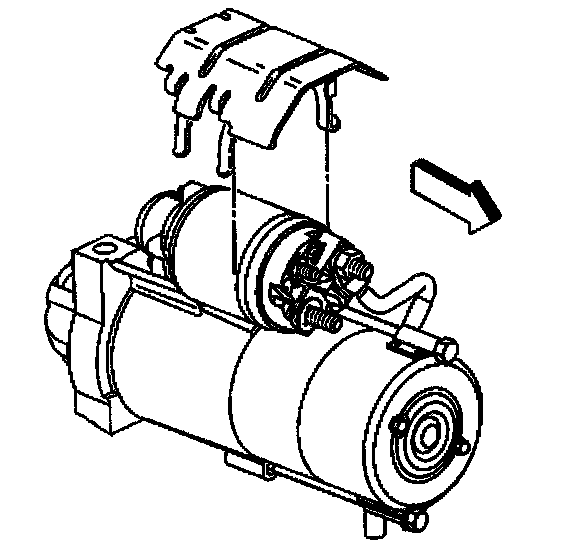

REMOVAL PROCEDURE
1. Remove the starter motor.






2. Unsnap the starter motor shield from the starter solenoid.

INSTALLATION PROCEDURE
1. Snap the starter motor shield to the starter solenoid.
2. Install the starter motor.
