Internal Components

Transmission Major Components








Case and Associated Parts (1 of 4)








Case and Associated Parts (2 of 4)








Case and Associated Parts (3 of 4)








Case and Associated Parts (4 of 4)





Oil Pump Assembly





Control Valve Body Assembly (1 of 2)





Control Valve Body Assembly (2 of 2)





Case Cover Assembly








Internal Components (1 of 2)








Internal Components (2 of 2)





Manual Shaft and Parking System Assembly





Case Side Cover Bolts





Oil Pump Bolts





Control Valve Body Bolts





Case Cover Bolts





Bottom Pan, Accumulator Cover and Manual 2-1 Band Servo Cover Bolts





Thrust Washers





Bushings





Bearings





Lip Seals





Square and O-Ring Seals





Gaskets





Ball Check Valves

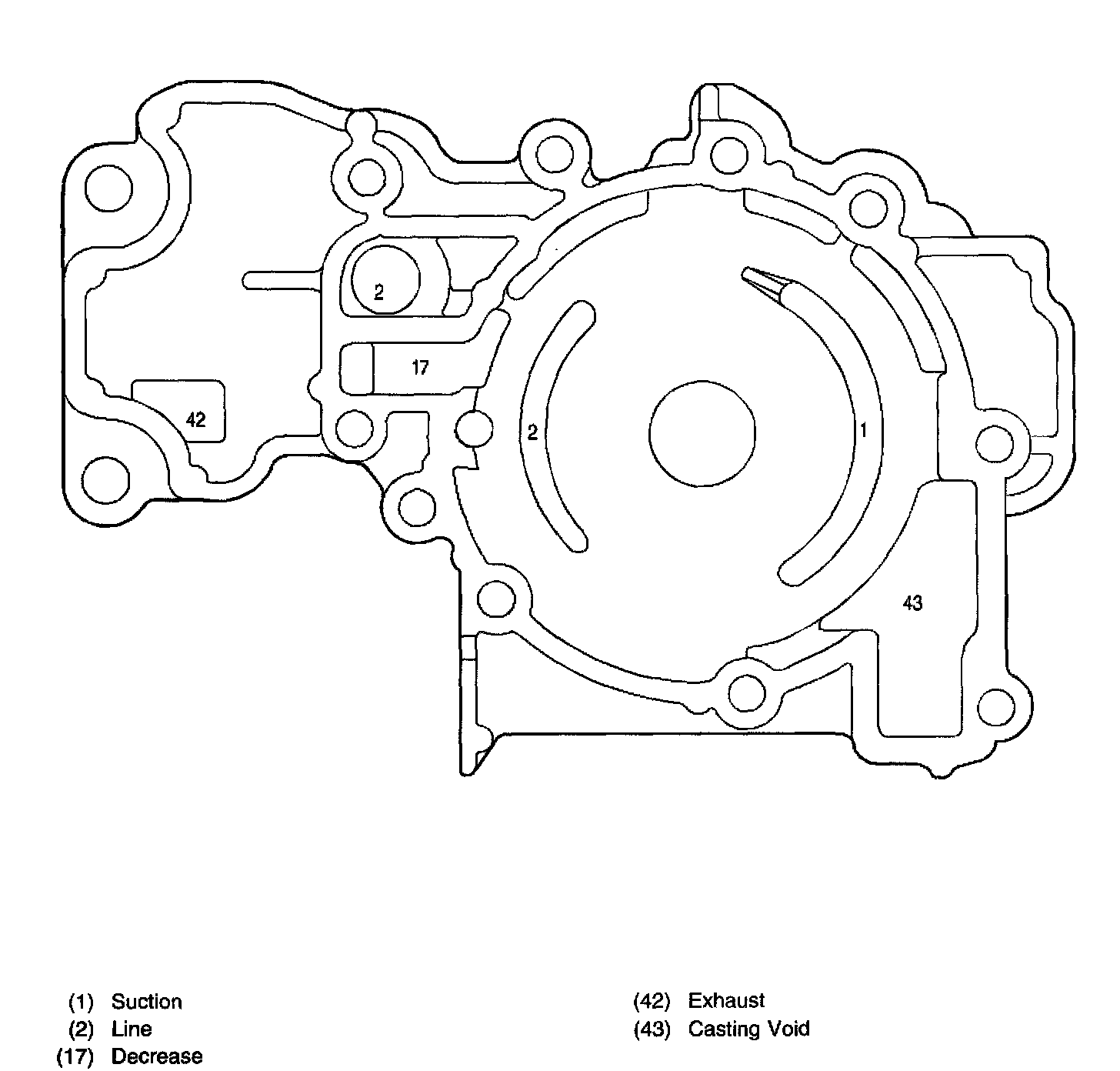

Oil Pump Cover Fluid Passages (Oil Pump Body Side)

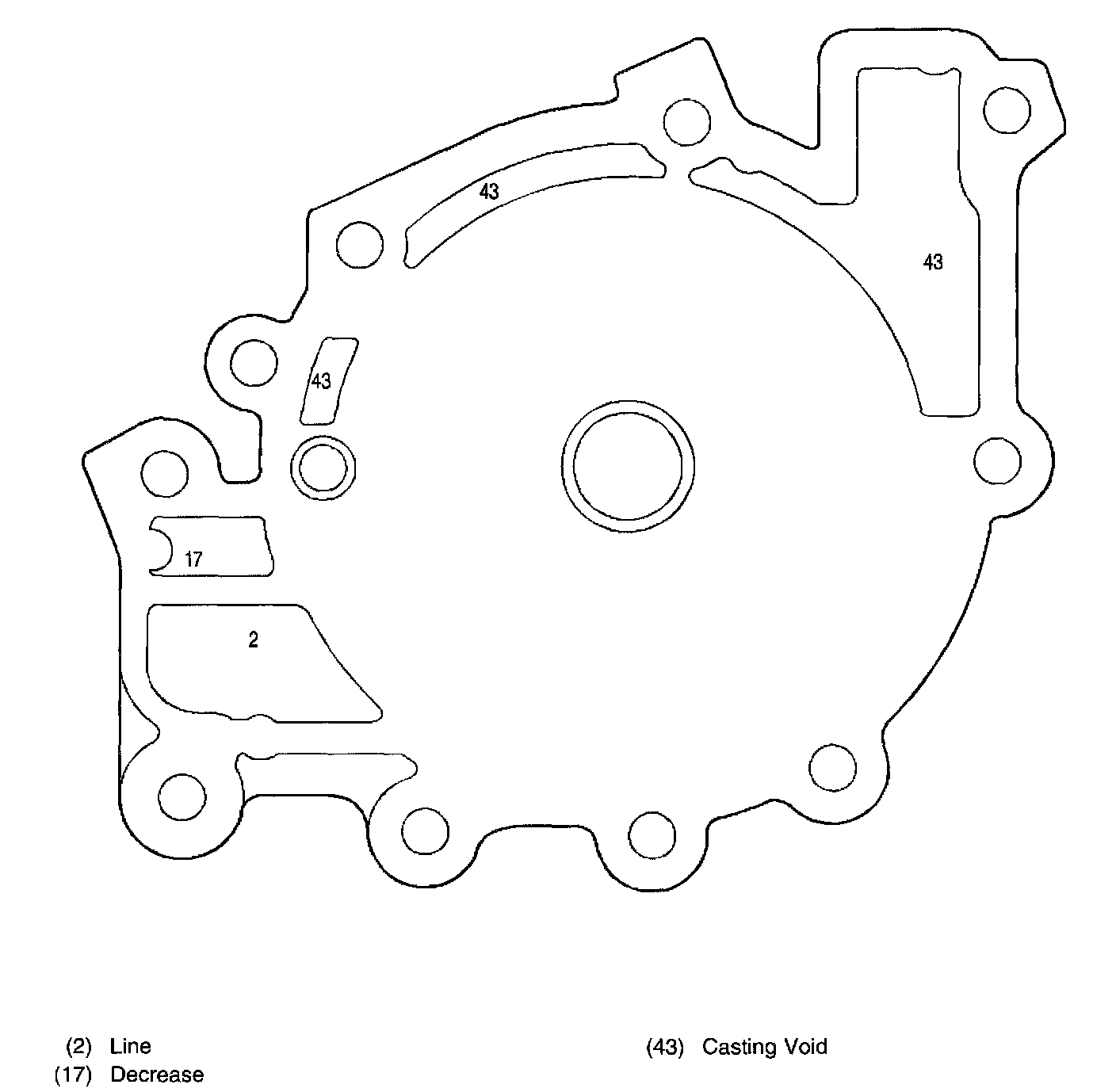

Oil Pump Body Fluid Passages (Oil Pump Cover Side)





Oil Pump Body Fluid Passages (Control Valve Body Side)





Control Valve Body Fluid Passages (Oil Pump Body Side)








Control Valve Body Fluid Passages (Case Cover Side)

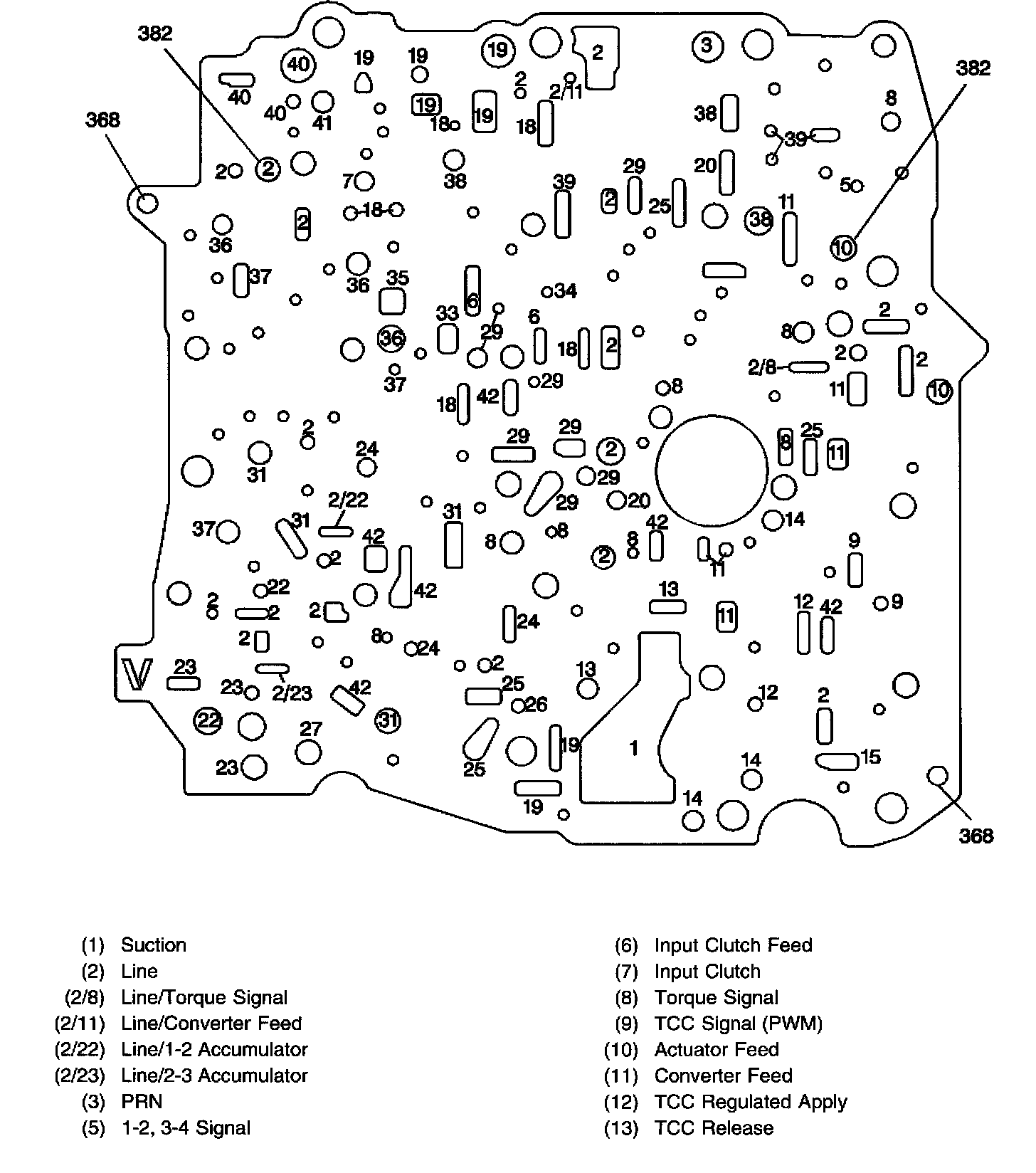

Control Valve Body to Spacer Plate Gasket Fluid Passages

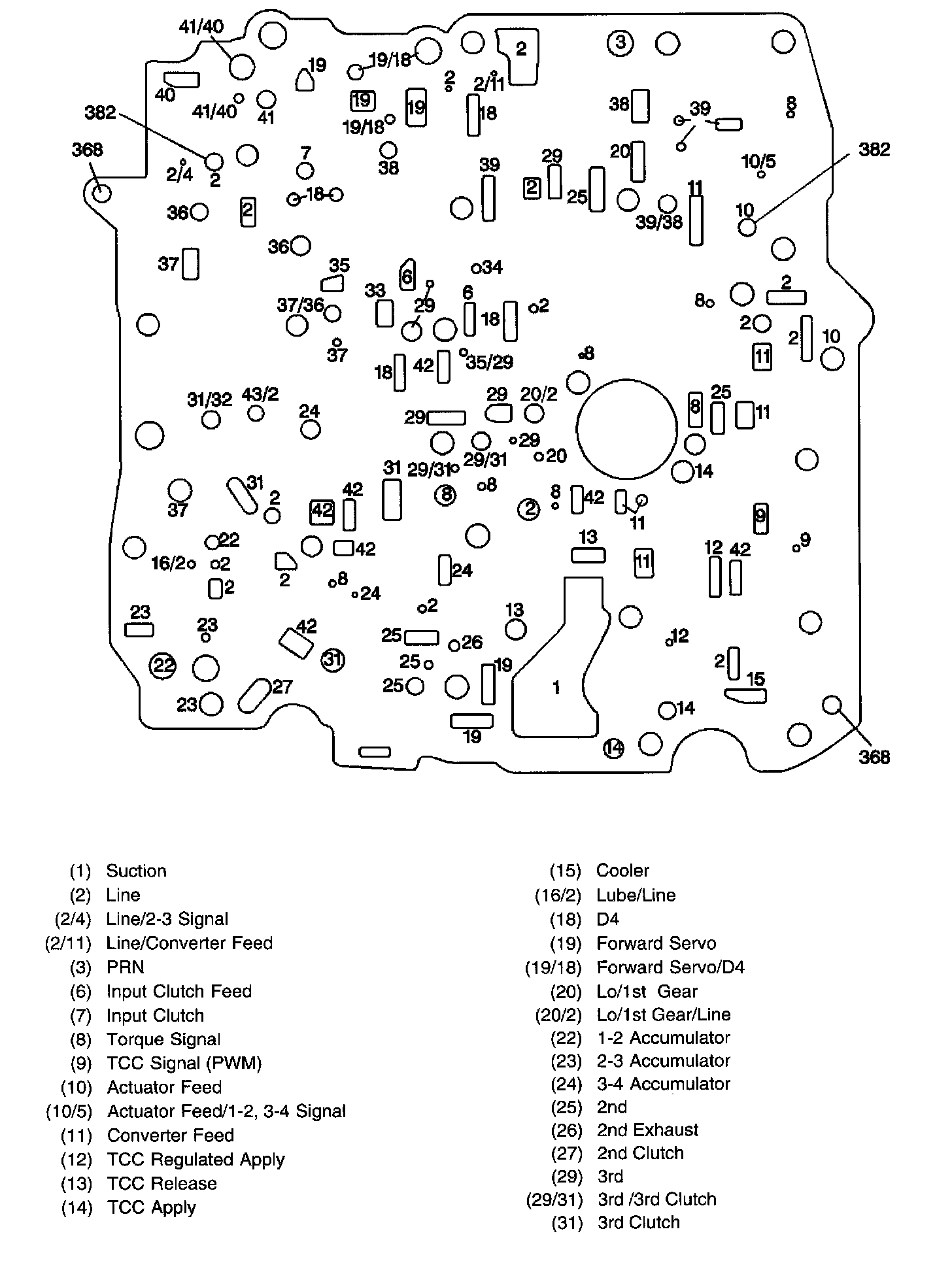

Spacer Plate Fluid Passages








Spacer Plate to Case Cover Gasket Fluid Passages

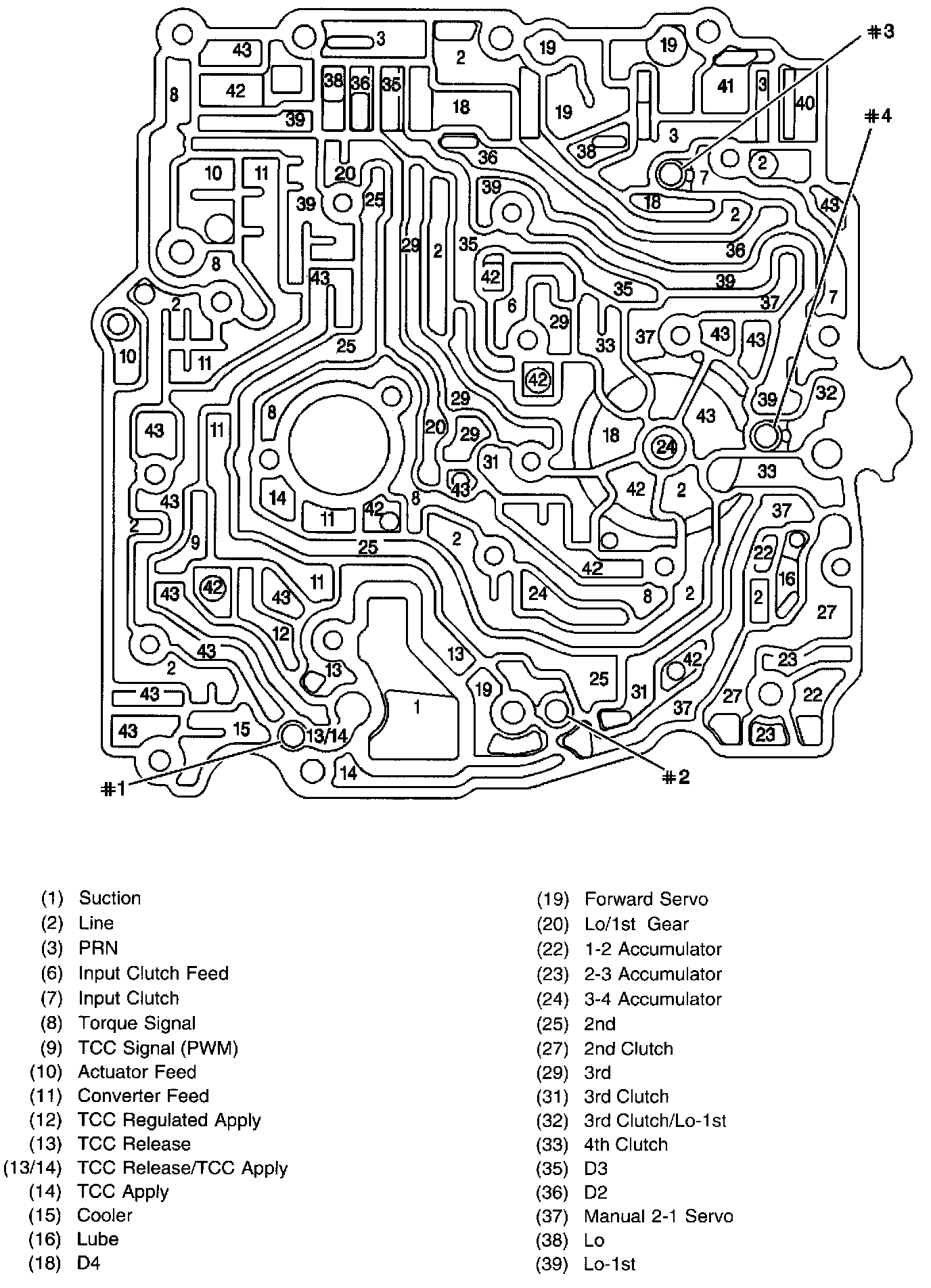

Case Cover Fluid Passages (Control Valve Body Side)





Case Cover Fluid Passages (Case Side)





Driven Sprocket Support Fluid Passages





Oil Pump Drive Shaft and Drive Sprocket Support Fluid Passages





Case Fluid Passages (Case Cover Side)





Case Fluid Passages (Bottom)





1-2 and 2-3 Accumulator Housing Fluid Passages





Accumulator Cover Spacer Plate Fluid Passages





Accumulator Cover Fluid Passages





Manual 2-1 Band Servo Cover Fluid Passages
