Air Distribution Ducts Replacement - Auxiliary

REMOVAL PROCEDURE




1. Position the front half of the carpet aside. Refer to Carpet Replacement - Front in Interior Trim.

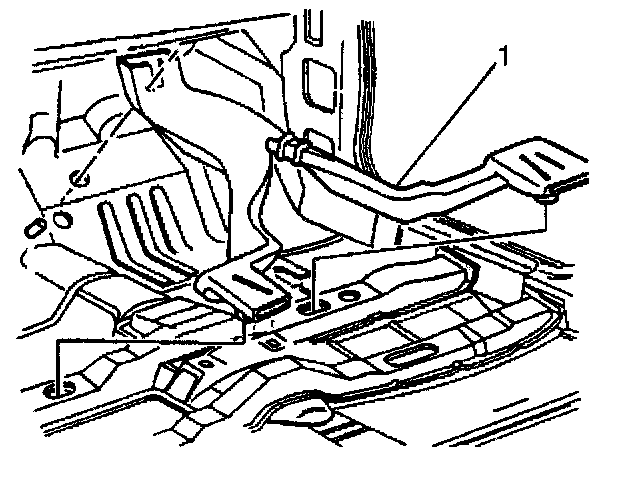

2. Release the rear floor air outlet duct (1) from the studs and the holes in the floor reinforcement.
3. Disconnect the lower heater duct from the heater core outlet cover.
4. Remove the lower heater duct.

INSTALLATION PROCEDURE




1. Install the lower heat duct.
2. Connect the lower heater duct to the heater core outlet cover.
3. Position the rear floor air outlet duct (1) onto the studs and the holes in the floor reinforcement and press into place.
4. Install the front carpet into position.
