Alternator: Service and Repair
REMOVAL PROCEDURECAUTION: Refer to Battery Disconnect Caution in Service Precautions.
1. Disconnect the negative battery cable.
2. Remove the accessory drive belt.
3. Disconnect the electrical connections and the power steering line clip.

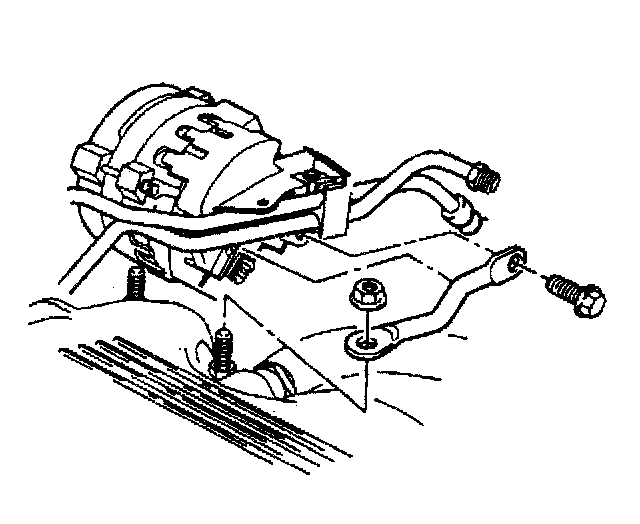

4. Remove the rear generator brace.
5. Remove the generator bolts.
6. Remove the generator.
INSTALLATION PROCEDURE
1. Install the generator
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the generator bolt.
3. Install the generator nut
Tighten
Tighten the generator nut to 50 N.m (37 lb ft).
4. Install the rear generator brace.
5. Reconnect the electrical connections and reinstall the power steering line clip.
6. Install the accessory drive belt.
7. Connect the negative battery cable.
Tighten
Tighten the bolt to 15 N.m (11 lb ft).
