Positive Crankcase Ventilation: Service and Repair

PCV MAKE-UP AIR HOSE REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the hose from the valve cover.
2. Disconnect the hose from the gas distribution adapter (GDA).

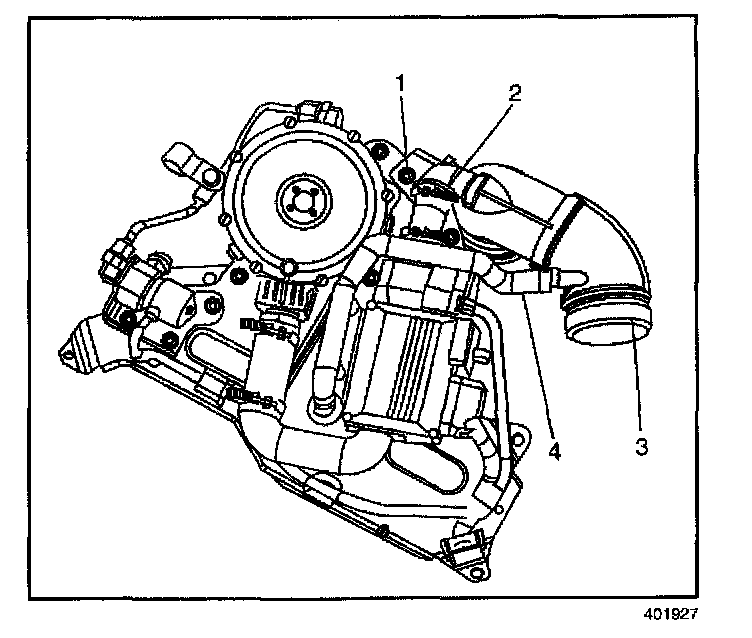

3. Remove the PCV make-up air hose (4).

INSTALLATION PROCEDURE




1. Install the PCV make-up air hose (4).
2. Connect the hose to the gas distribution adapter (GDA).
3. Connect the hose to the valve cover.
