Outlet

Radiator Hose Replacement - Outlet

Removal Procedure
1. Drain the cooling system.

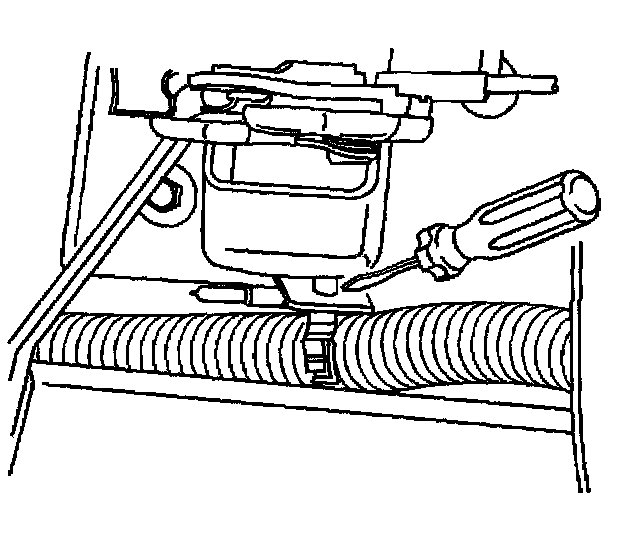

2. Disconnect the intake air temperature sensor electrical connector.





3. Loosen the air duct clamp.
4. Remove the intake air duct resonator.

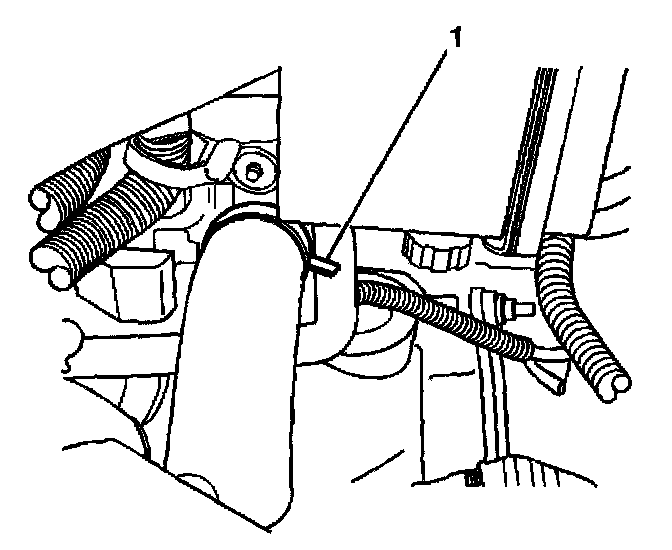

5. Reposition the outlet hose clamp from the water outlet (1).
6. Remove the outlet hose from the water outlet.
7. Raise and suitable support the vehicle. Refer to Vehicle Lifting.
8. Reposition the outlet hose clamp from the radiator.

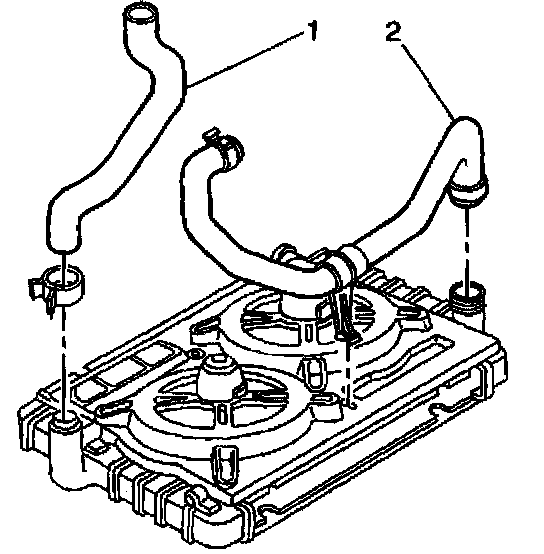

9. Remove the outlet hose (1) from the radiator.

Installation Procedure

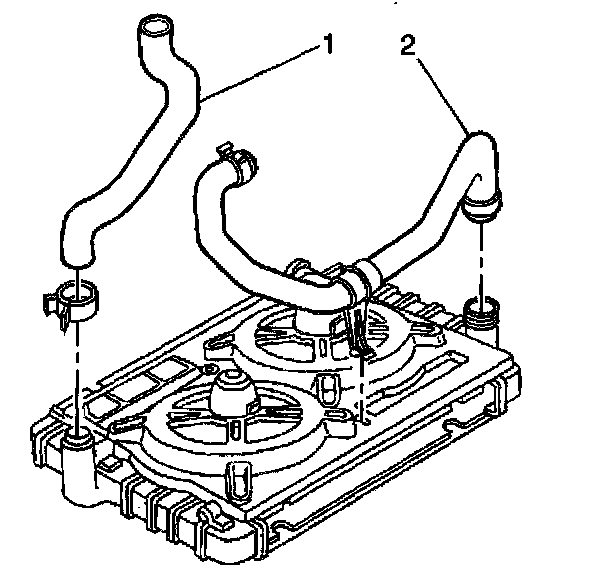

1. Install the outlet hose (1) to the radiator.
2. Reposition the outlet hose clamp to the radiator.
3. Lower the vehicle.

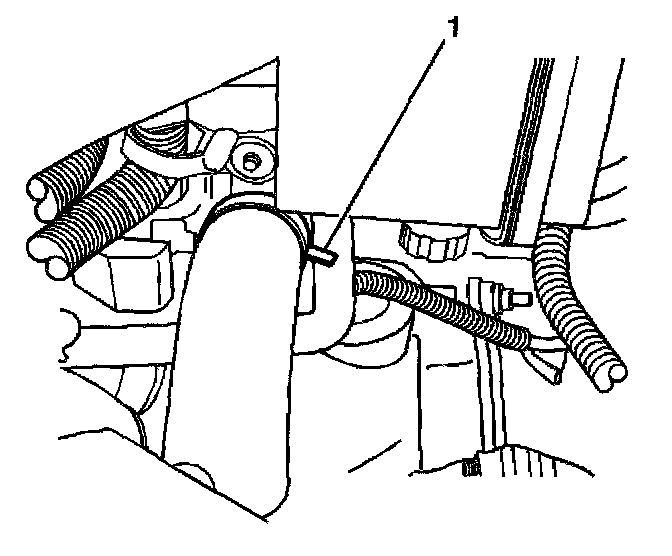

4. Install the outlet hose to the water outlet (1).
5. Reposition the outlet hose clamp to the water outlet.





6. Install the intake air duct resonator.
7. Tighten the air duct clamp.

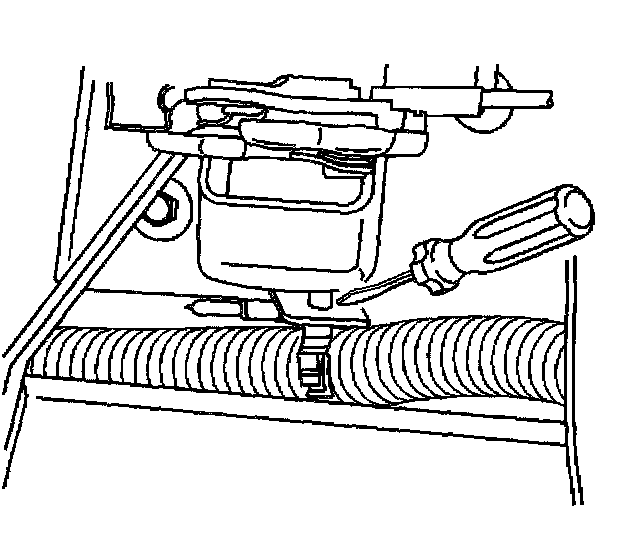

8. Connect the intake air temperature sensor electrical connector.
9. Fill the cooling system.
