Extension Housing: Service and Repair

Case Extension Housing Replacement
Removal Procedure





1. Disconnect the negative battery cable.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Remove the right drive axle from the transaxle.
4. Remove the transaxle brace.
5. Remove the vehicle speed sensor.

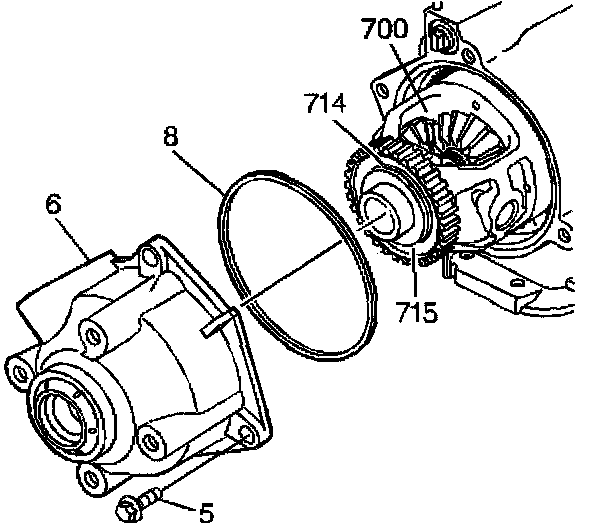

6. Remove the case extension housing bolts (5).
7. Remove the case extension housing (6) with axle seal and the O-ring (8).





8. Inspect the case extension (6).

Installation Procedure





1. If removed install the drive axle seal.
2. Install the case extension housing (6) with the axle seal and the O-ring(8).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the case extension housing bolts (5).
^ Tighten the bolts (5) to 36 Nm (27 ft. lbs.).
4. Install the vehicle speed sensor.
5. Install the transaxle brace.
6. Install the right drive axle.
7. Lower the vehicle.
8. Connect the negative battery cable.

Notice: Refer to Do Not Overfill the Transmission Notice in Service Precautions.

9. Check and fill the transaxle as necessary.
10. Inspect for completion of the repairs.
11. Inspect for fluid leaks.
