Carpet Retainer Replacement (Sedan)

Carpet Retainer Replacement (Sedan)

Removal Procedure




1. Remove the rear quarter lower trim panel.
2. Remove the center pillar upper trim panel. Trim Panel Replacement - Upper Center Pillar.
3. Remove the windshield garnish molding at the bottom.

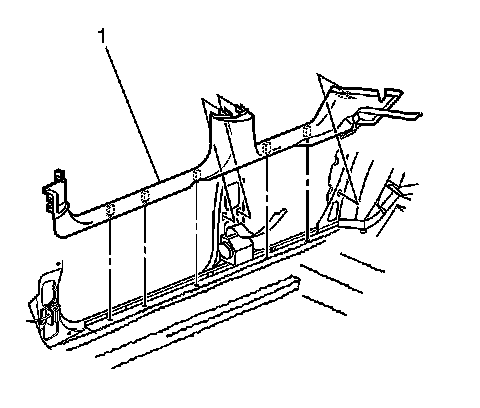

4. Pull up on the carpet retainer (1) to disengage the fasteners.
5. Remove the carpet retainer (1) from the vehicle.

Installation Procedure




1. Position the carpet retainer (1) in the vehicle.
2. Press down on the carpet retainer (1) until fasteners are fully engaged.
3. Install the windshield garnish molding at the bottom.
4. Install the center pillar upper trim panel.
5. Install the rear quarter trim lower panel.
