Trim Panel Replacement - Rear Quarter Lower

Trim Panel Replacement - Rear Quarter Lower

Removal Procedure

1. Remove the rear seat cushion.
2. Remove the rear quarter upper trim panel.
3. Fold down the rear seat back.

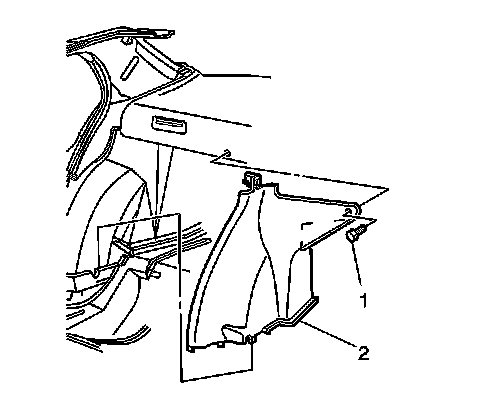

4. Remove the push retainer (1) from the lower quarter trim panel (2).
5. Firmly pull the lower quarter trim panel (2) away from the vehicle in order to release the retainers.
6. Remove the lower quarter trim panel (2) from the vehicle.

Installation Procedure




1. Position the lower quarter trim panel (2) to the vehicle and align the retaining clips.
2. Press firmly against the lower quarter trim (2) panel. Ensure that the clips are locked into position.
3. Install the push retainer (1) to the lower quarter trim panel (2).
4. Return the rear seat back to its upright position.
5. Install the rear quarter upper trim panel.
6. Install the rear seat cushion.
