Trim Panel Replacement - Upper Center Pillar

Trim Panel Replacement - Upper Center Pillar

Removal Procedure




1. Remove the front seat shoulder belt guide cover.
2. Remove the front seat shoulder belt guide bolt.

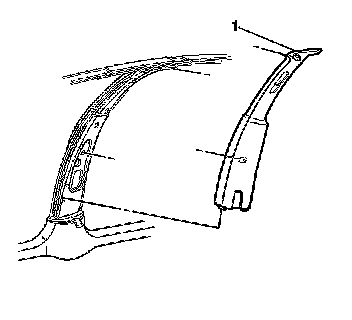

3. Pull the center pillar upper trim panel (1) outward at the roof in order to disengage the clips.
4. Remove the center pillar trim panel from the vehicle.

Installation Procedure




1. Position the center pillar trim panel (1) in the vehicle.
2. Push the center pillar upper trim panel (1) in order to engage the clips.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the front seat shoulder belt guide bolt.

Tighten the shoulder belt guide bolt to 42 N.m (31 lb ft).

4. Install the front seat shoulder belt guide cover.
