Battery Negative Cable Disconnect/Connect Procedure

REMOVAL PROCEDURE
1. Turn OFF all the lamps and the accessories.

CAUTION:
- Refer to SIR Caution in Service Precautions.
SIR Caution
- Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution

2. Place the ignition switch in the OFF position.

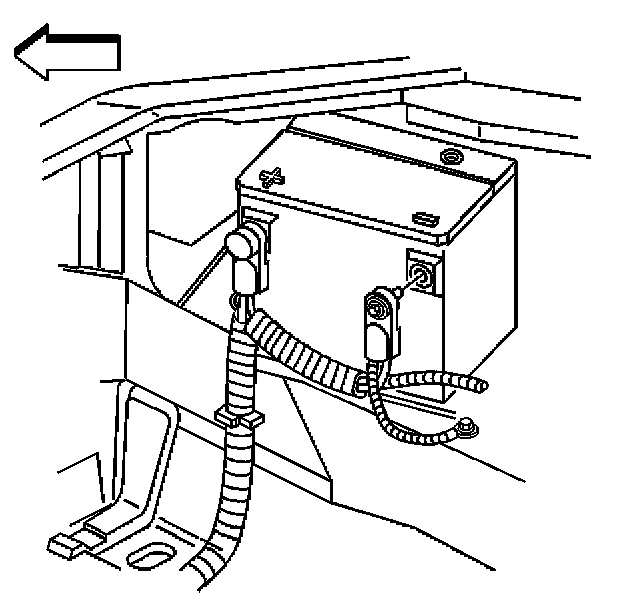

3. Disconnect the battery negative cable from the battery.








INSTALLATION PROCEDURE

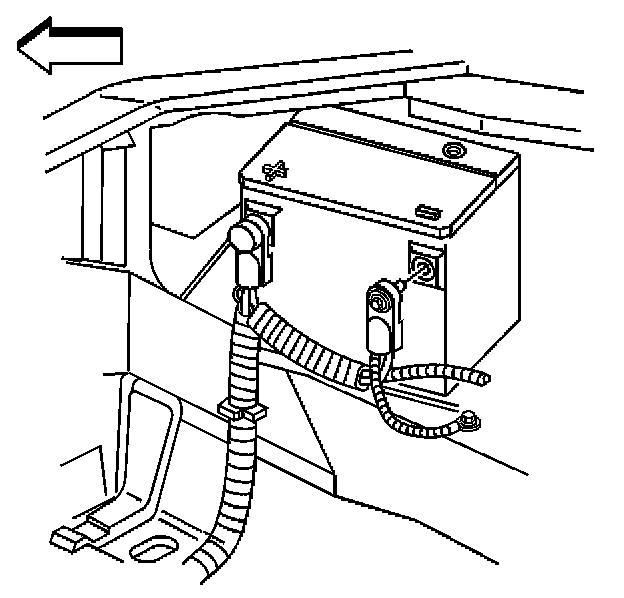

Connect the battery negative cable to the battery.

NOTE: Refer to Fastener Notice in Service Precautions. Fastener Notice

IMPORTANT: Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.



Tighten
Tighten the bolts to 15 N.m (11 lb ft).
