LEMON Manuals: Even more car manuals for everyone
Home >> Pontiac >> 2003 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Testing and Inspection >> Component Tests and General Diagnostics >> Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

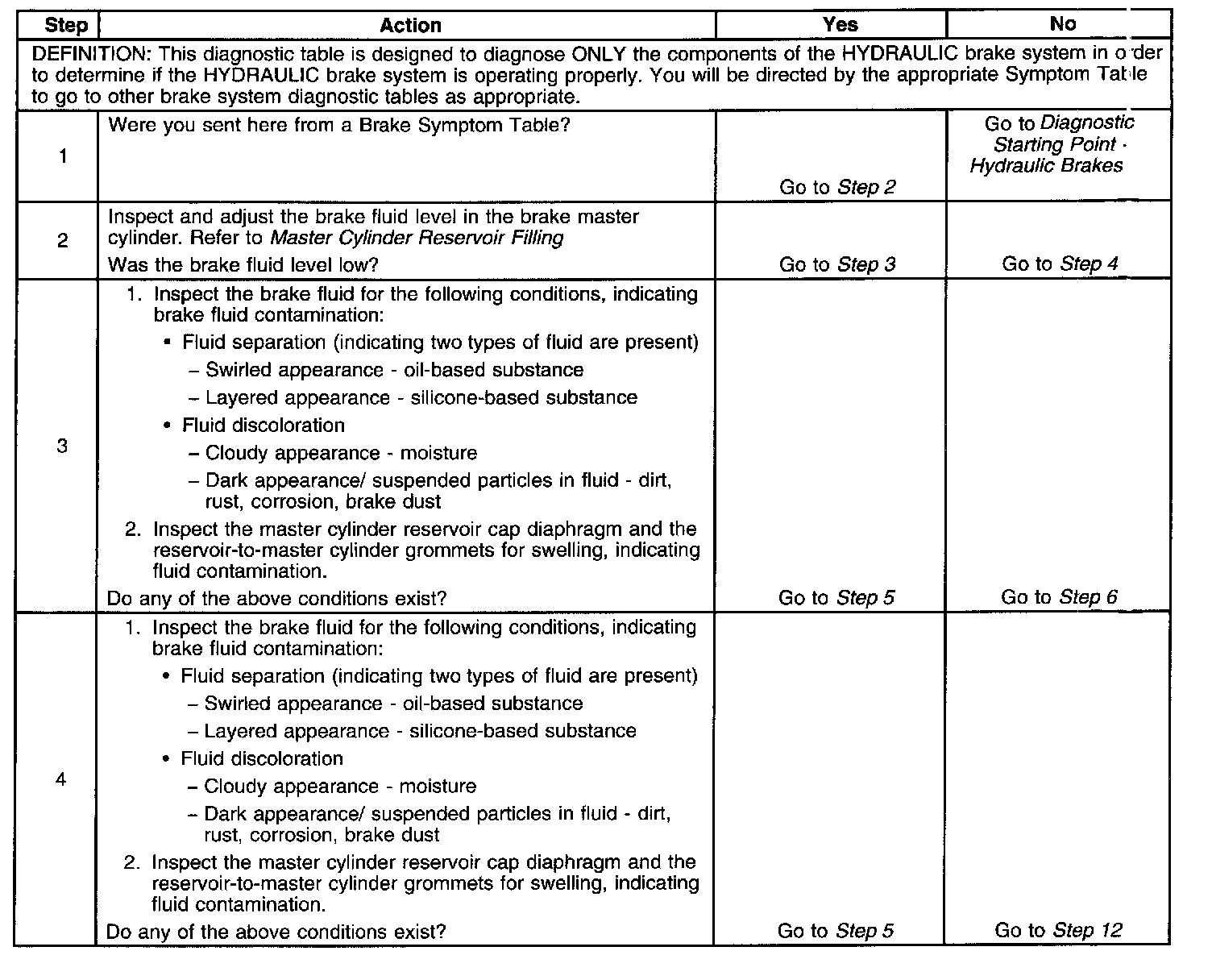

Test 1-4

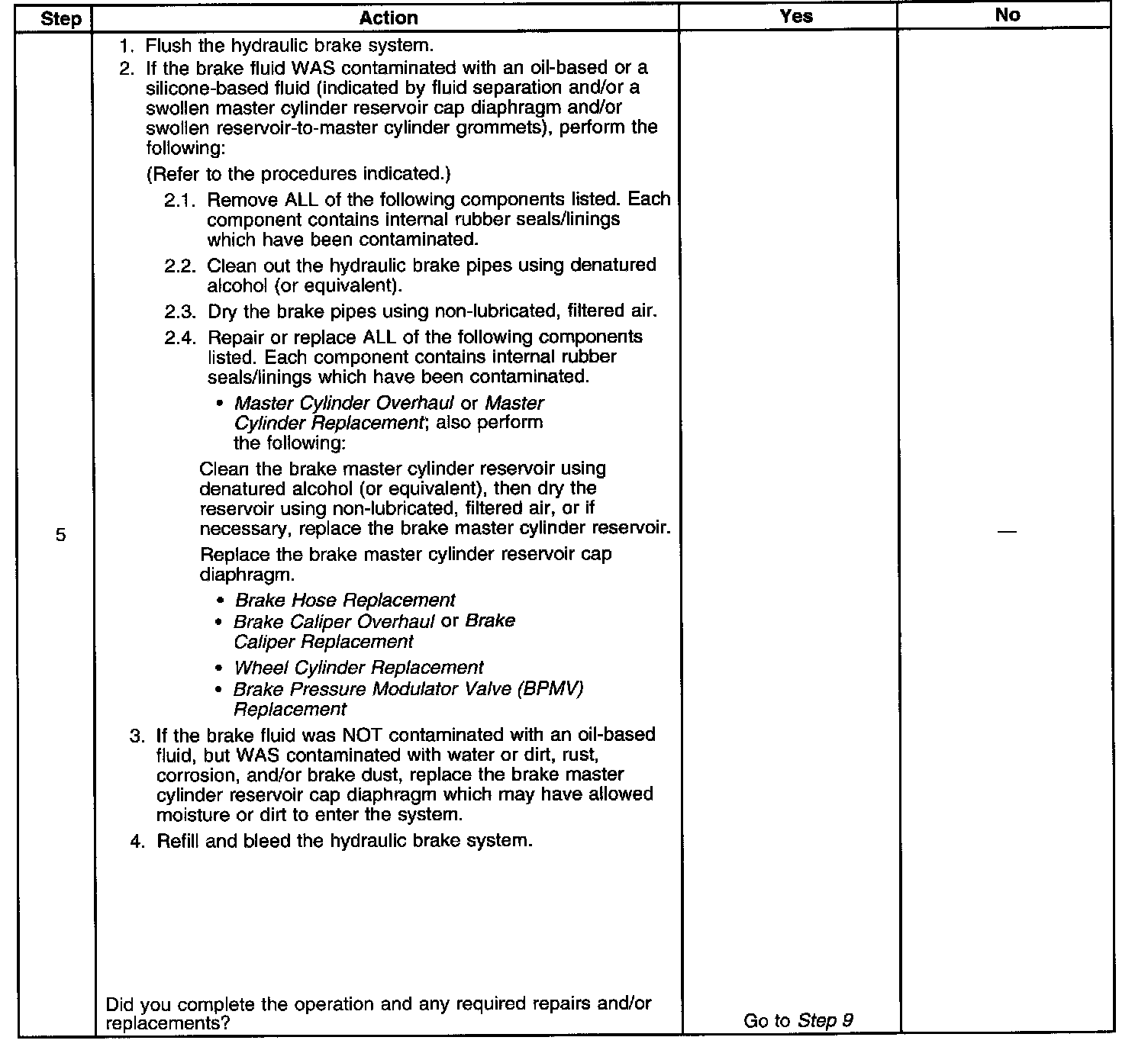

Test 5

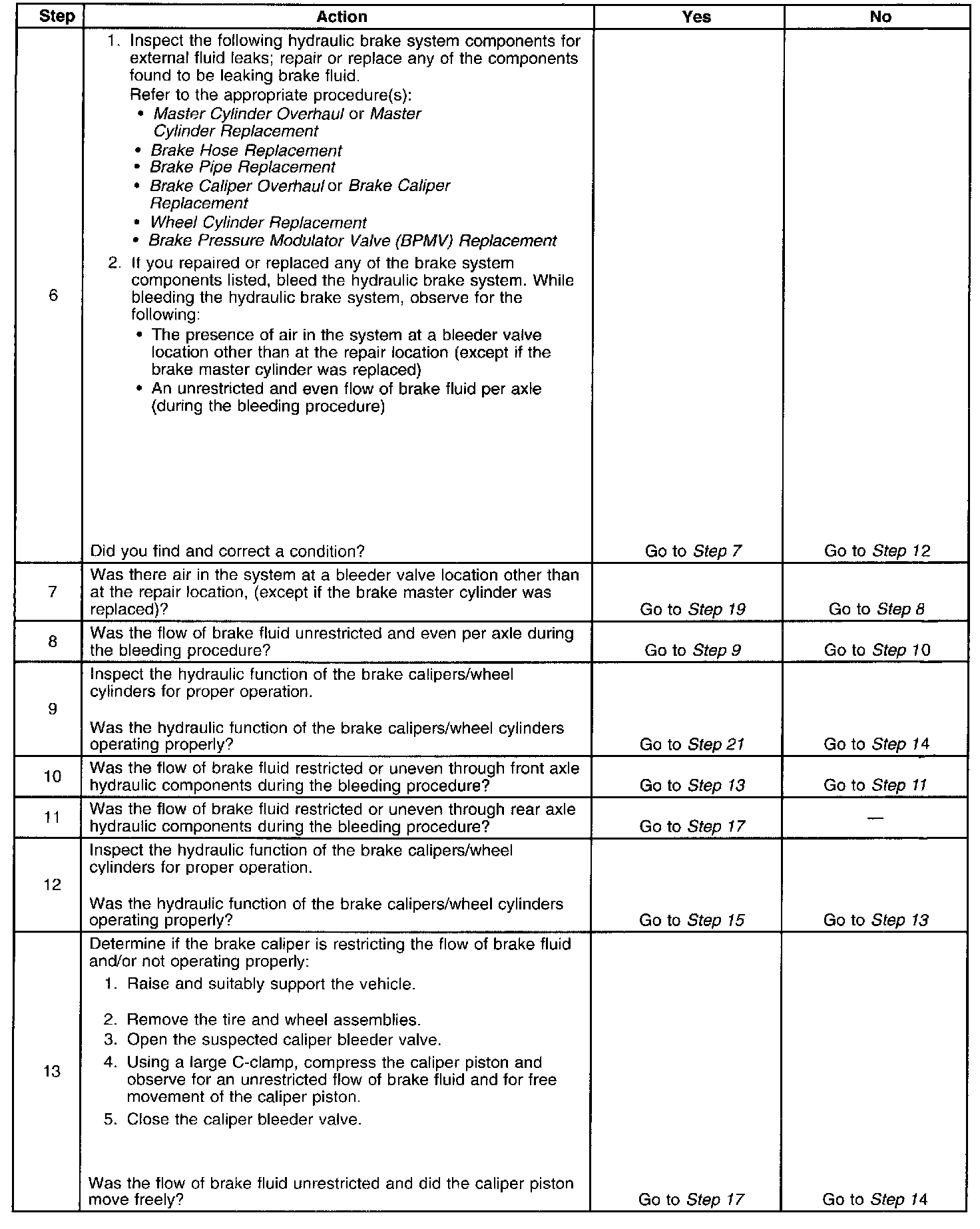

Test 6-13

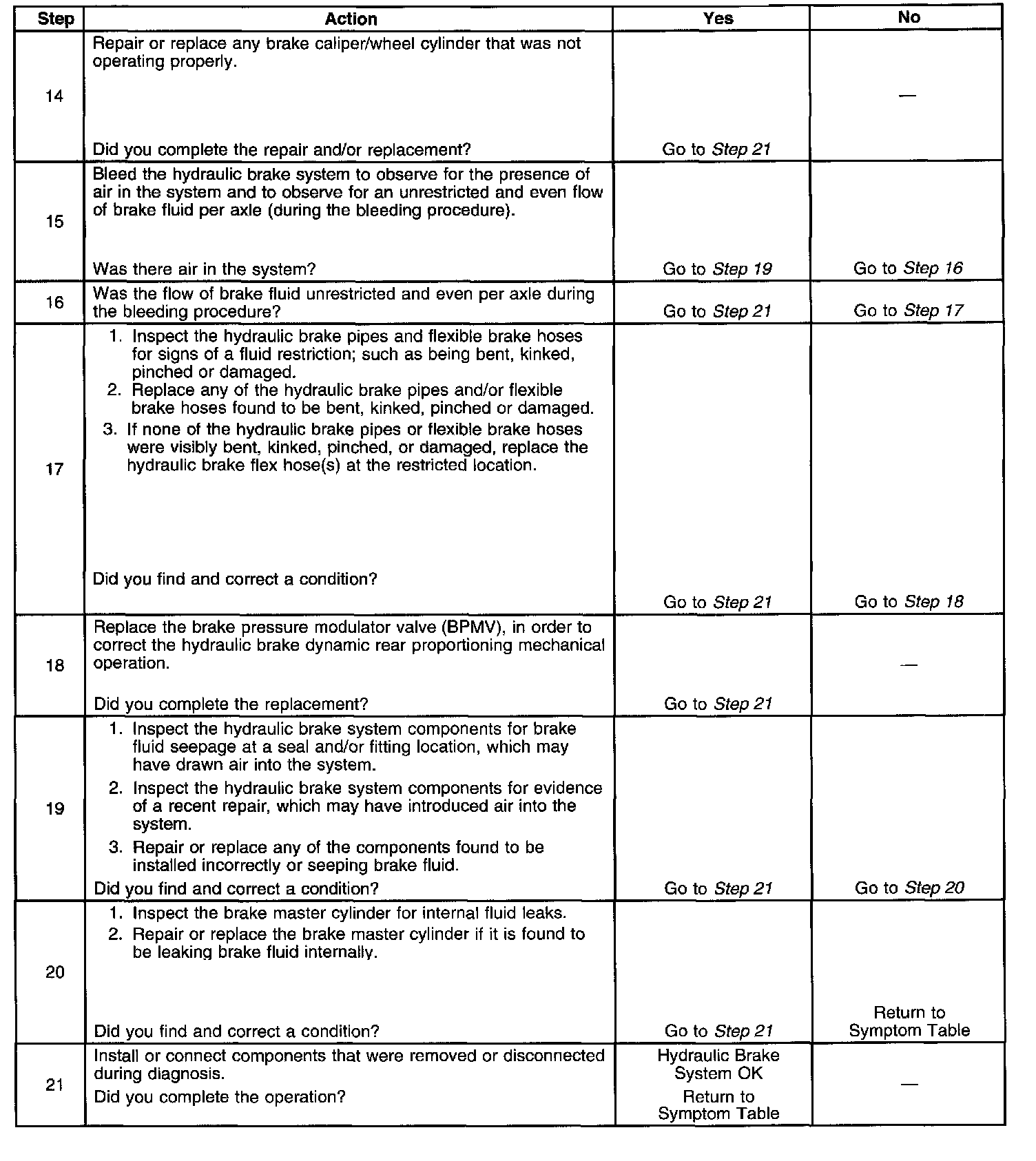

Test 14-21
