Map Pocket: Service and Repair

Door Storage Bin Replacement - Front







Removal Procedure

1. Remove the door energy absorber pad.

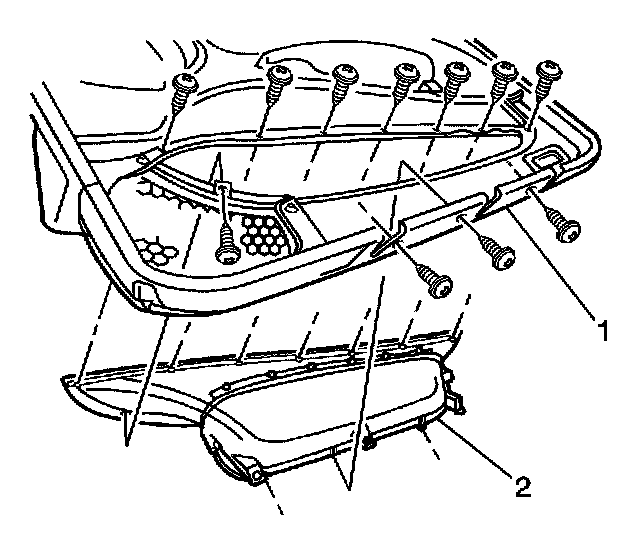

2. Remove the screws attaching the storage bin (2) to the trim panel (1).








Installation Procedure
1. Install the storage bin (2) to the trim panel (1).

Notice: Refer to Fastener Notice in Cautions and Notices.
Fastener Notice

2. Install the screws attaching the storage bin (2) to the trim panel (1).

Tighten the screws to 6 N.m (53 lb in).

3. Install the energy absorber pad.
