Defroster Grille Replacement

Defroster Grille Replacement







Removal Procedure
1. Remove the instrument panel outer cover.

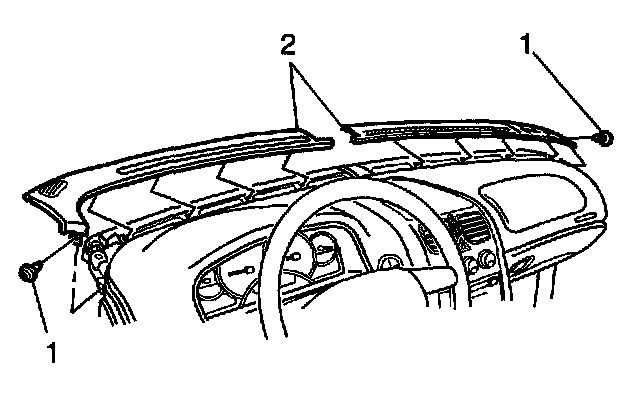

2. Remove the screw (1) attaching each windshield defroster grille (2) to the instrument panel.
3. Carefully unclip the defroster grille (2) at an angle and remove from the instrument panel.







Installation Procedure

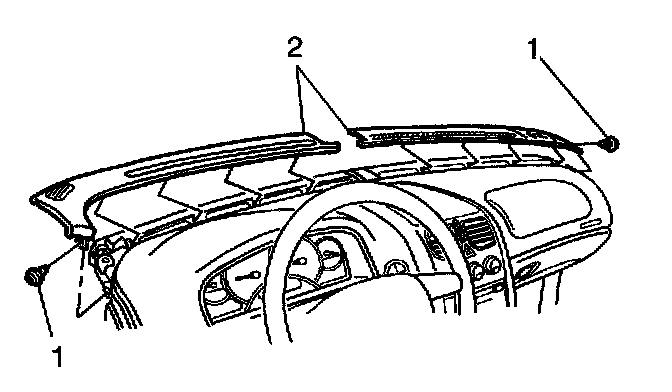

1. Install the windshield defroster grille (2) to the instrument panel, making sure the retainer clips are fully engaged.

Notice: Refer to Fastener Notice in Cautions and Notices.
Fastener Notice

2. Install the 3 screw (1) attaching the windshield defroster grille (2) to the instrument panel.

Tighten the screw to 2 N.m (18 lb in).

3. install the instrument panel outer cover.
