Removal

CLUTCH ROTOR AND/OR BEARING REMOVAL

Tools Required
- J33023-A Puller Pilot
- J41552 Compressor Pulley Puller
- J41790 Compressor Holding Fixture

1. Remove the A/C compressor from the vehicle.





2. Clamp J 41790 in a vise and attach the A/C compressor to J 41790.
3. Remove the clutch plate and hub assembly.

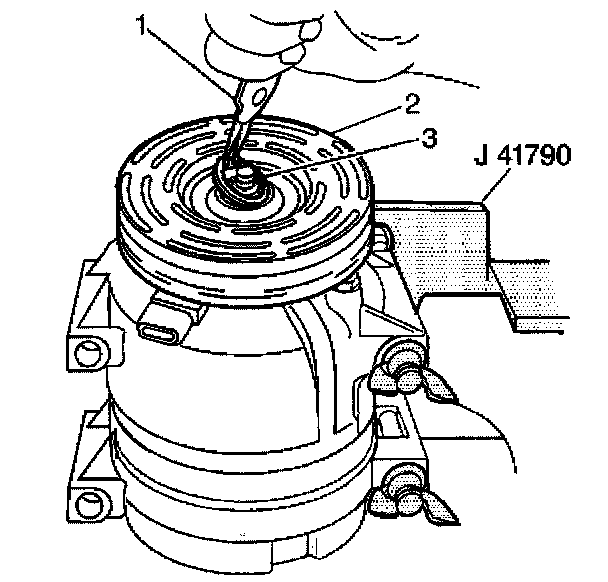

4. Using external snap ring pliers (1), remove the retaining ring (3) from the clutch rotor and bearing assembly.

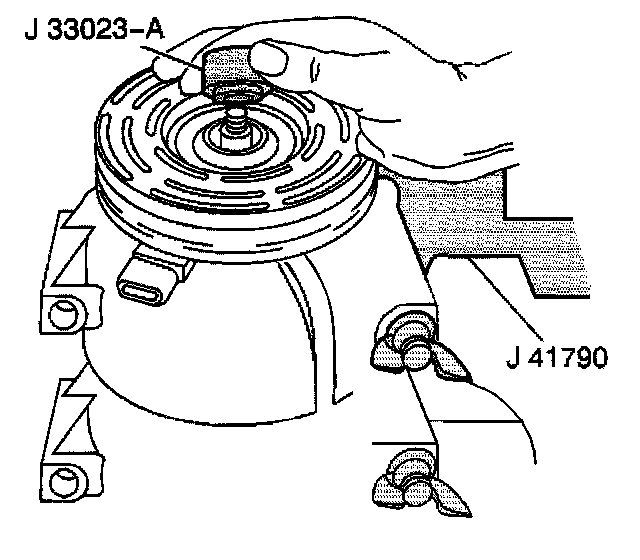

5. Place J 33023-A on the clutch rotor.





6. Install J 41552 down into the inner circle of slots in the rotor. Turn J 41552 clockwise in the slots to engage the puller tangs with the rotor.
7. Hold J 41552 in place and use a wrench to turn the center forcing screw against J 33023-A to remove the clutch rotor and bearing assembly.
