Inlet

Radiator Hose Replacement - Inlet (L61)

^ Tools Required
- J 38185 Hose Clamp Pliers

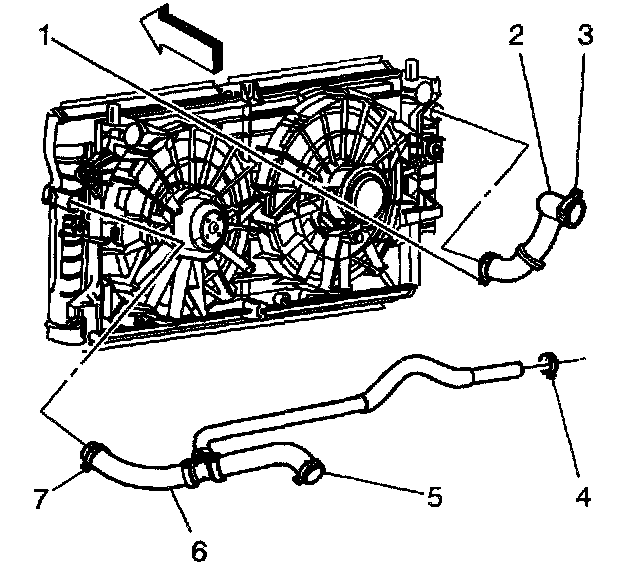

Removal Procedure





1. Drain the cooling system.
2. Use the J 38185 in order to reposition the inlet hose clamp from the water outlet (3).
3. Remove the inlet hose from the water outlet (2).
4. Use the J 38185 in order to reposition the inlet hose clamp from the radiator (1).
5. Remove the inlet hose (2) from the radiator.

Installation Procedure





1. Install the inlet hose (2) to the radiator.
2. Use the J 38185 in order to reposition the inlet hose clamp to the radiator (1).
3. Install the inlet hose (2) to the water outlet.
4. Use the J 38185 in order to reposition the inlet hose clamp to the water outlet (3).
5. Fill the cooling system.
