Coaxial Cable Replacement - Gps (I/P Extension Cable)

COAXIAL CABLE REPLACEMENT - GLOBAL POSITIONING SYSTEM (GPS) (INSTRUMENT PANEL EXTENSION CABLE)

REMOVAL PROCEDURE




1. Remove the left instrument panel (I/P) outer trim cover.

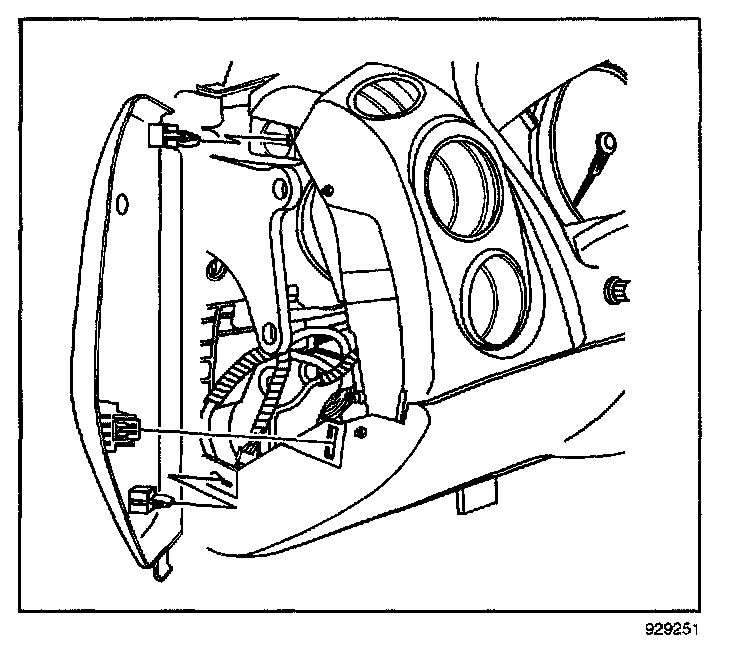

2. Disconnect the antenna extension cable (2) from the antenna cable.
3. Remove the left I/P insulator.

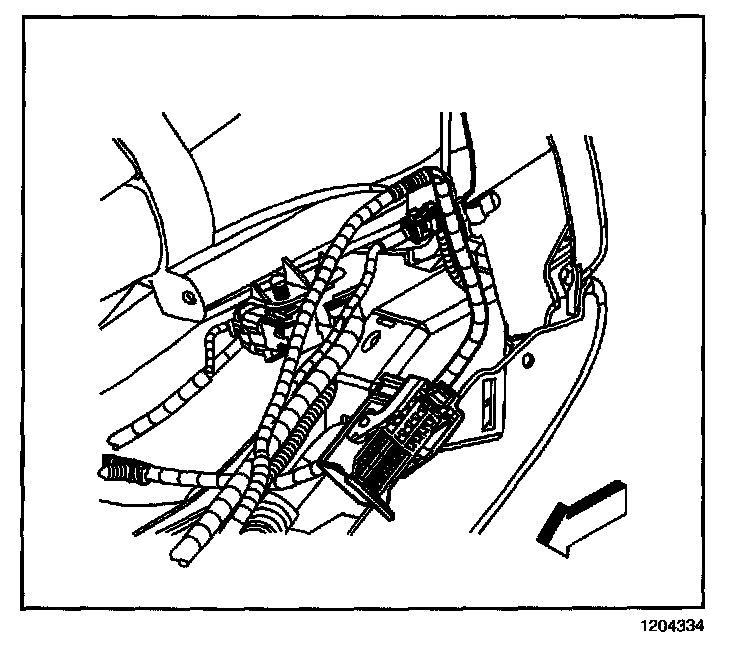

4. Disconnect the antenna extension cable from the communication interface module. The cable is on the passenger side of the module.
5. Cut off the visible ends of the antenna extension cable.

INSTALLATION PROCEDURE




1. Route the antenna extension cable. Secure the cable.
2. Connect the antenna extension cable to the communication interface module.
3. Install the left I/P insulator.

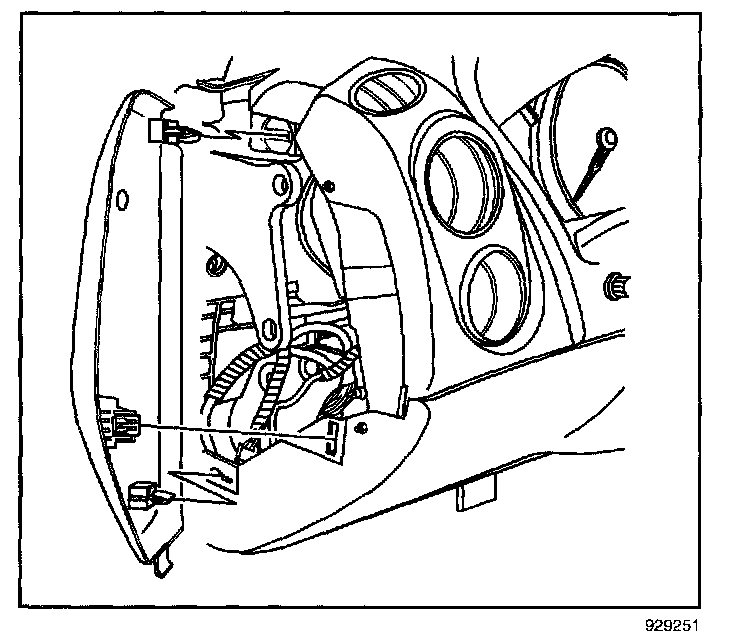

4. Connect the antenna extension cable from the module to the antenna cable.




5. Install the left I/P outer trim cover.
