Home >> Pontiac >> 2005 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RF

RF

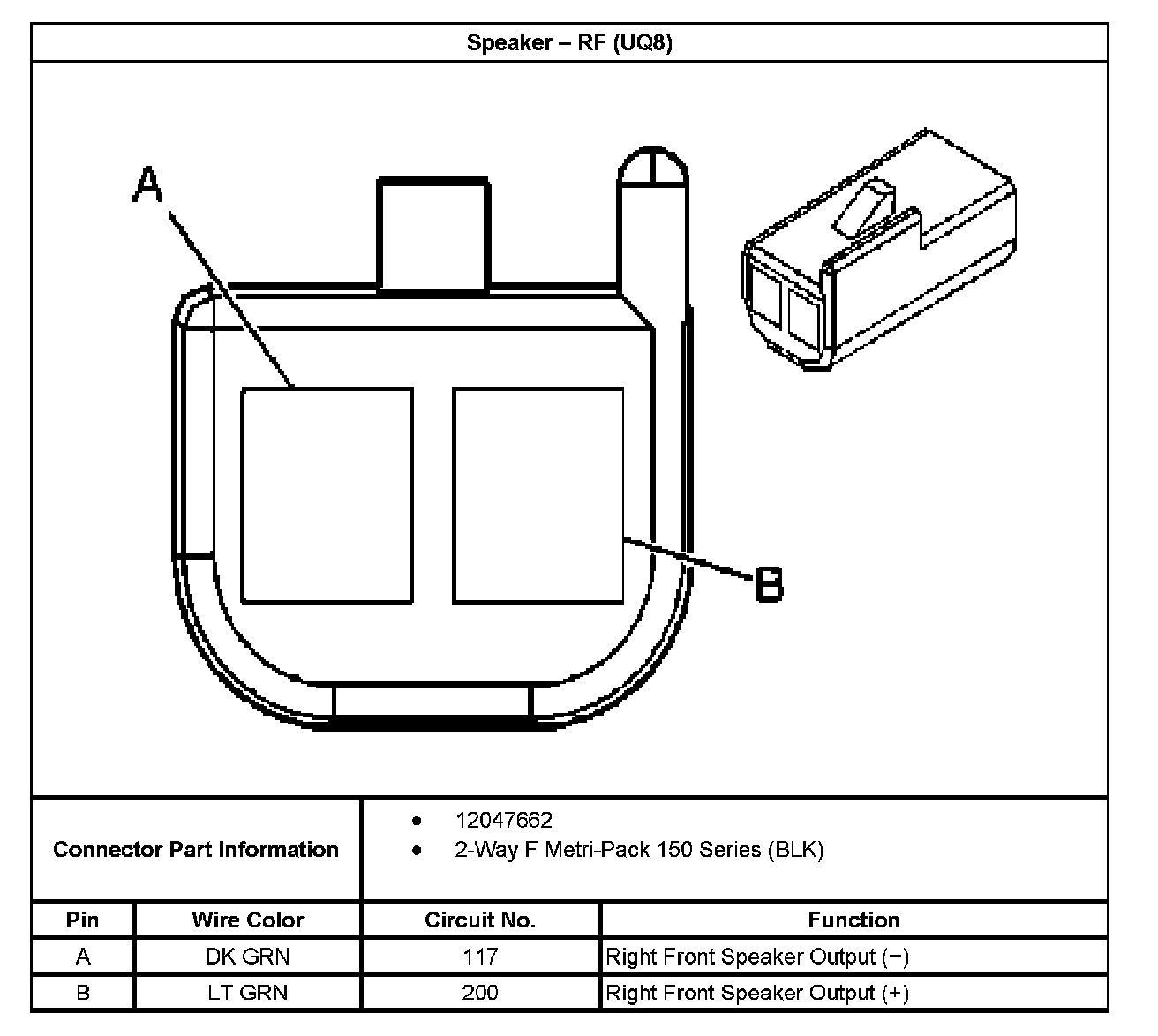

Speaker - RF (With RPO Code UQ8):

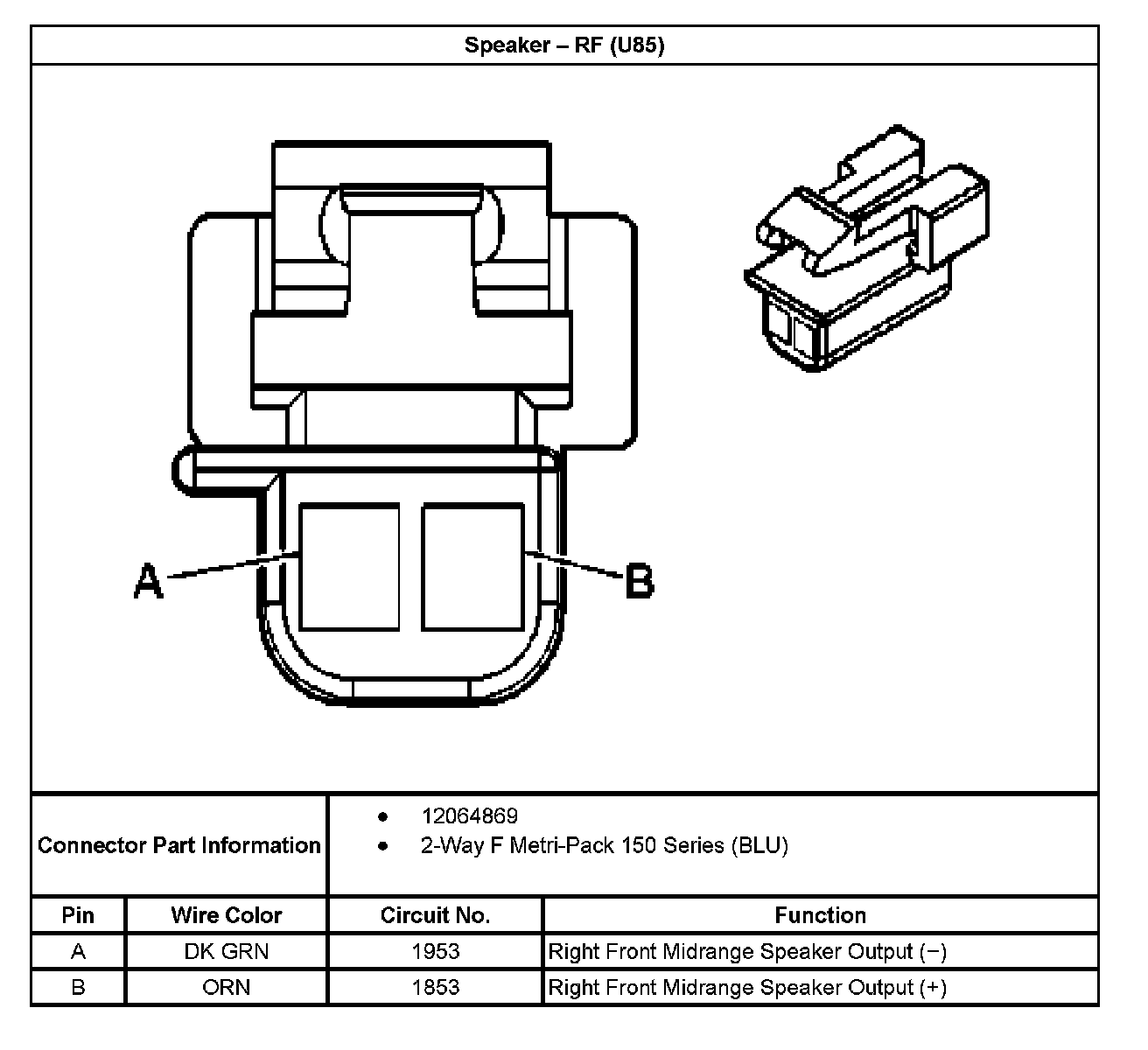

Speaker - RF (With RPO Code U85):
