Armrest Bracket Replacement

Armrest Bracket Replacement

Removal Procedure




1. Remove the door trim panel.

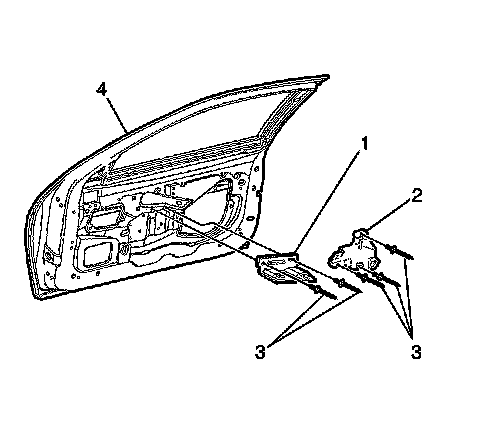

2. Drill out the rivets (3) which retain the door armrest hanger plate (1).
3. Remove the door armrest hanger plate (1) from the door.

Installation Procedure




1. Position the door armrest hanger plate (1) to the door.
2. Install the new rivets (3) to the door hanger plate.
3. Install the door trim panel.
