Air Injection Pressure Sensor/Switch
Air Injection Pressure Sensor/Switch

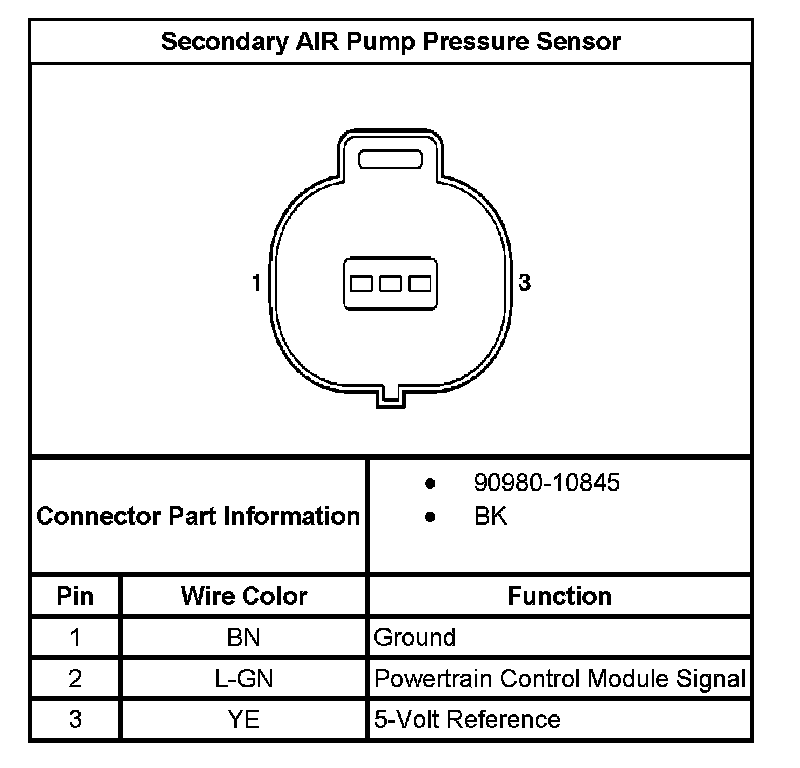

Secondary AIR Pump Pressure Sensor:
