Instrument Panel Outer Air Outlet Deflector Replacement

Instrument Panel Outer Air Outlet Deflector Replacement

Removal Procedure

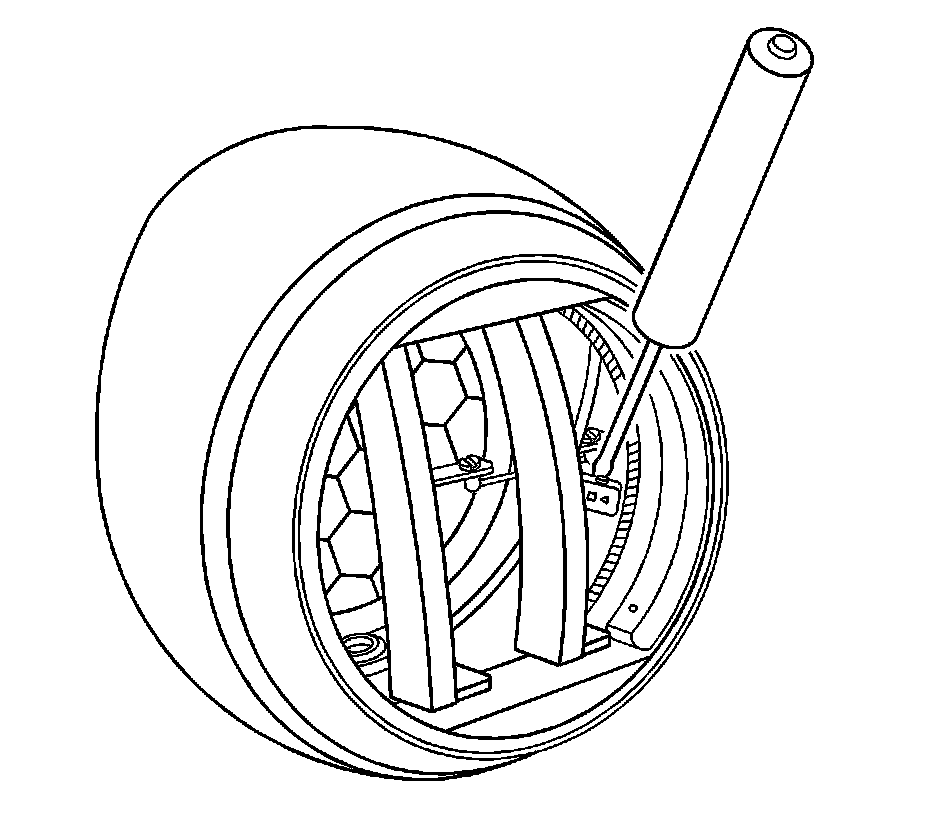

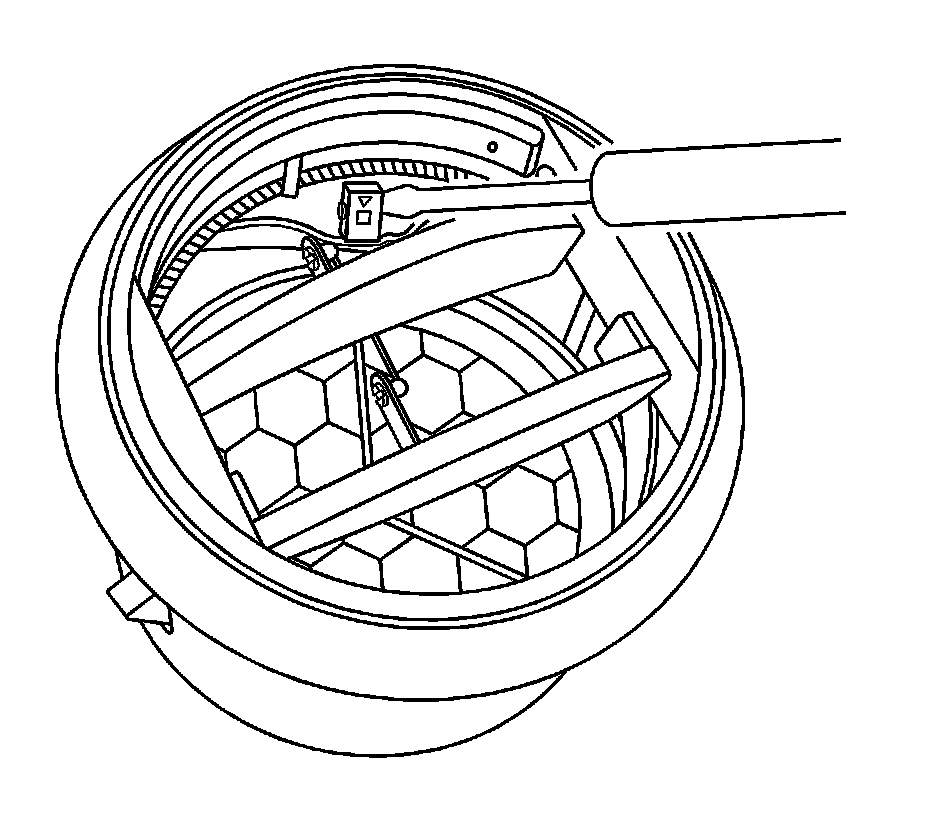

1. With the vanes of the deflector open, insert a small tool into the deflector and release the air outlet deflector tabs.

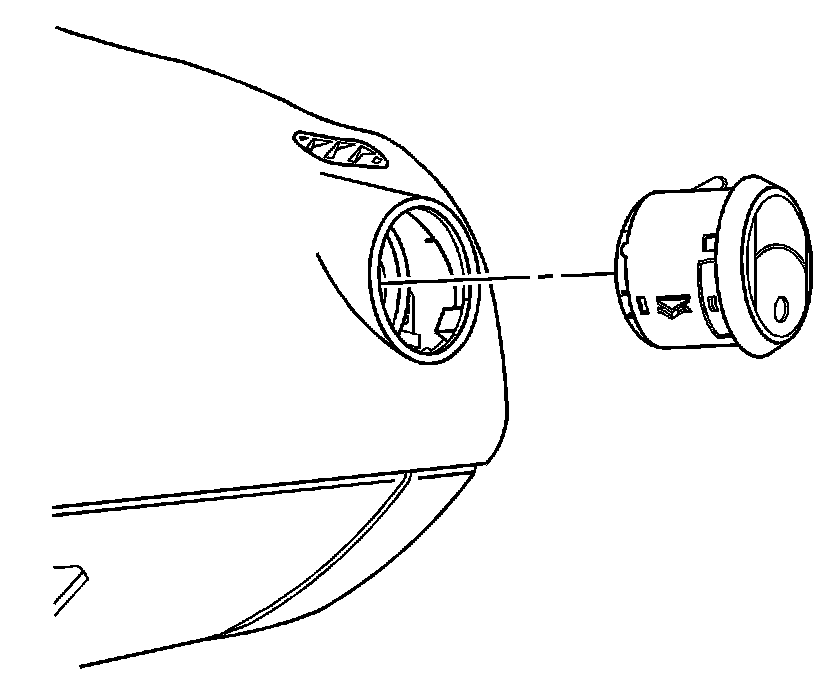

2. Remove the instrument panel (I/P) air outlet deflector.

Installation Procedure





Install the I/P air outlet deflector to the I/P trim pad.
