Brake Pressure Modulator Valve Bracket Replacement

Brake Pressure Modulator Valve Bracket Replacement

Removal Procedure
Caution: Refer to Brake Fluid Irritant Caution (Brake Fluid Irritant Caution) .

Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice (Vehicle Damage Warnings) .






1. Turn the ignition switch to the OFF position.
2. Remove brake pressure modulator valve (BPMV) and electronic brake control module (EBCM) as an assembly from the BPMV bracket. Refer to Brake Pressure Modulator Valve Replacement (Service and Repair) .

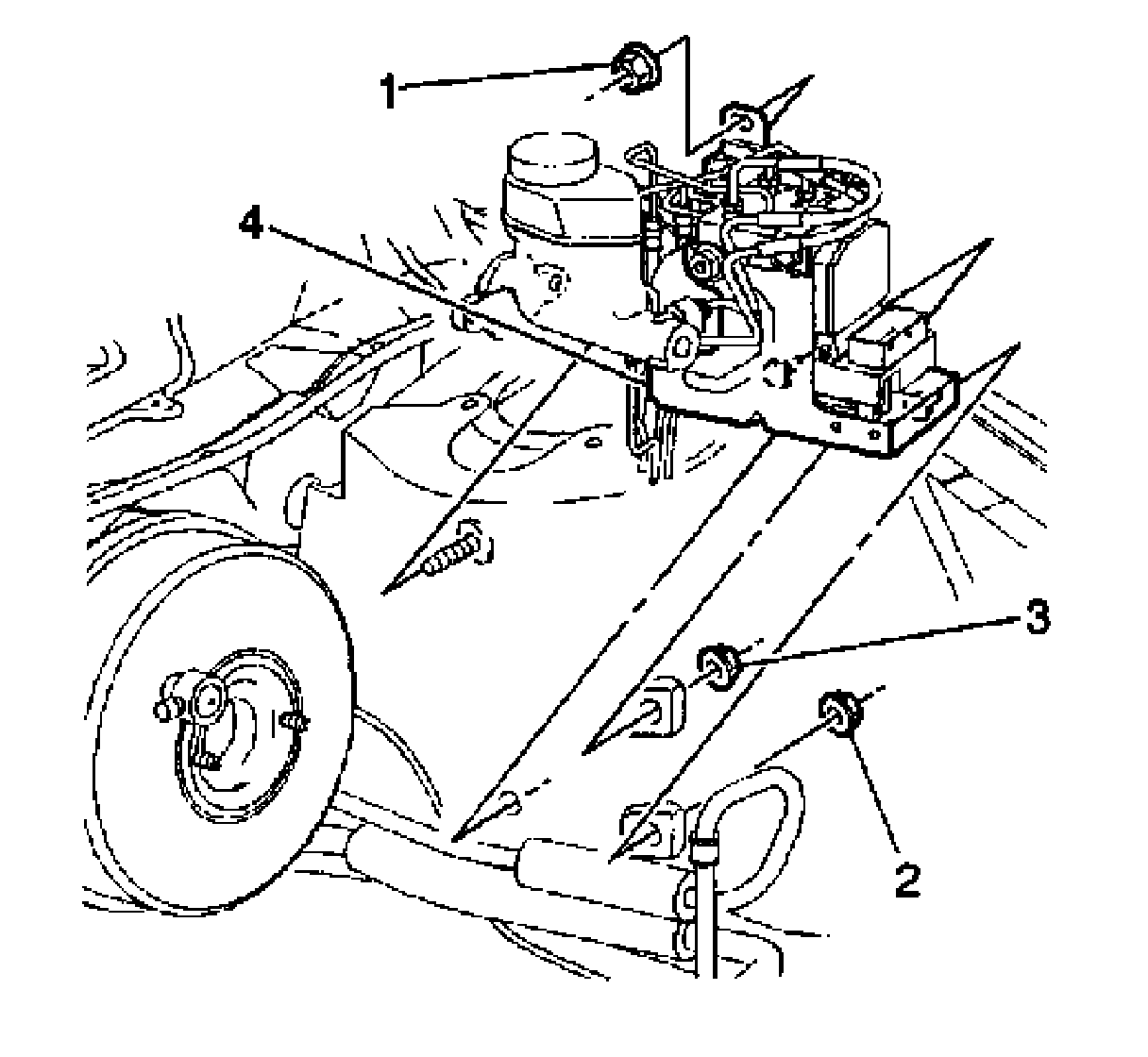

3. Remove the 3 BPMV bracket nuts (1, 2, and 3) attaching the BPMV bracket (4) to the wheel housing.
4. Remove the BPMV bracket (4) from the vehicle.



Installation Procedure





1. Install the BPMV bracket (4) to the wheel house.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the 3 BPMV bracket nuts (1, 2, and 3) to the studs on the BPMV bracket (4).

Tighten the 3 BPMV bracket nuts to 10 N.m (7 lb ft).

3. Install the BPMV and EBCM as an assembly to the BPMV bracket. Refer to Brake Pressure Modulator Valve Replacement (Service and Repair) .
4. Turn the ignition switch to the RUN position.
5. Perform the Diagnostic Starting Point - Antilock Brake System (Diagnostic Starting Point - Antilock Brake System) .
