Alternator: Service and Repair

Removal

Note: Carb model depicted.


1. Remove air intake silencer.

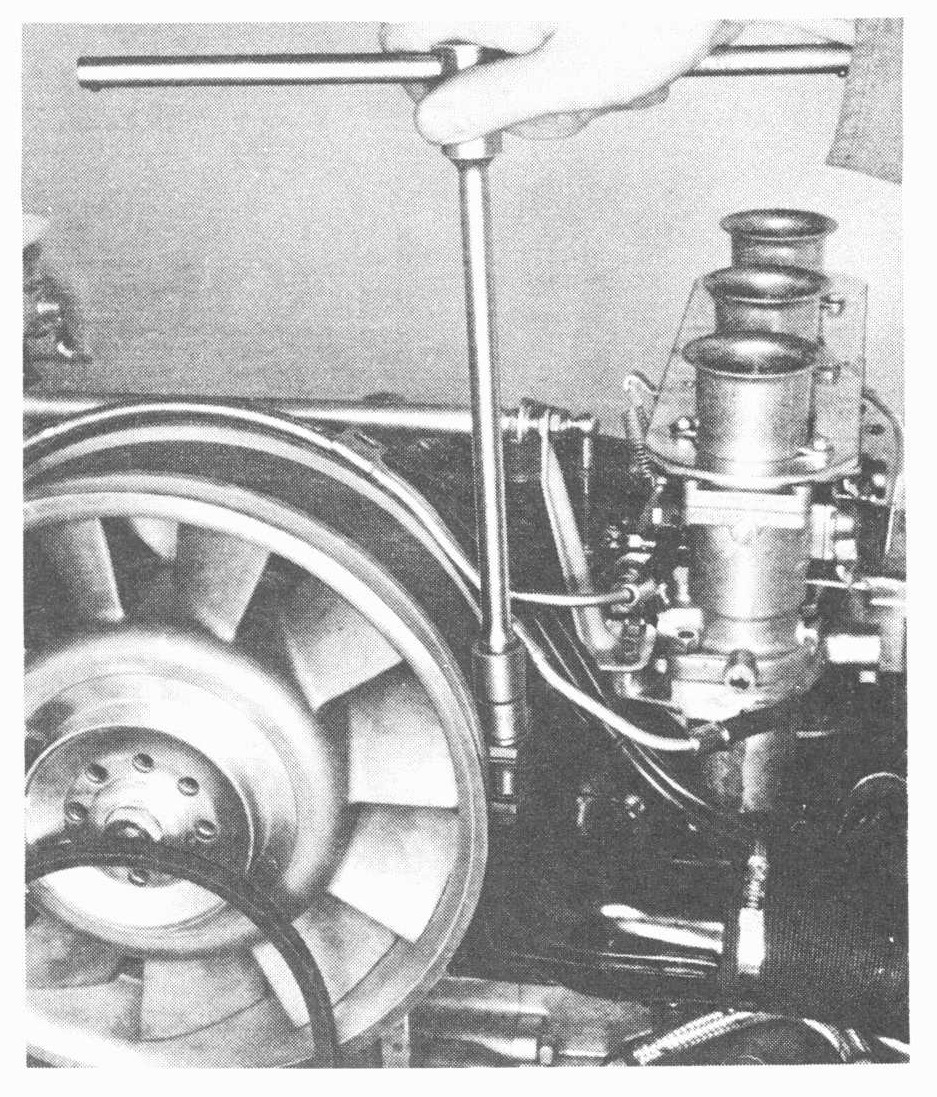

2. Remove upper shruud attaching bolts.

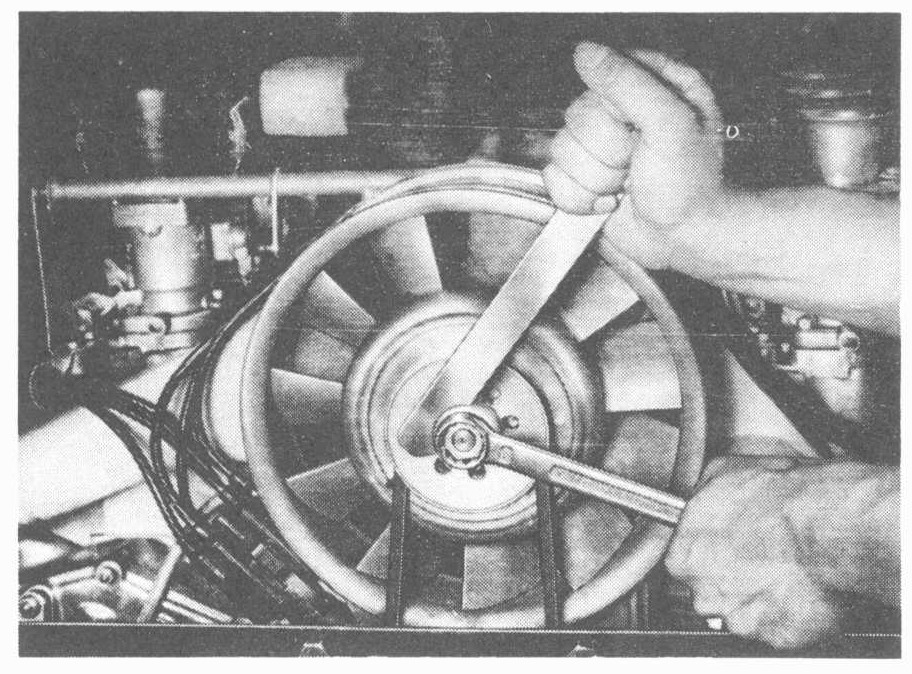

3. Remove alternator pulley retaining nut (hold with special tool P 208) and take off the V-belt.






4. Remove bolts from blower housing strap.

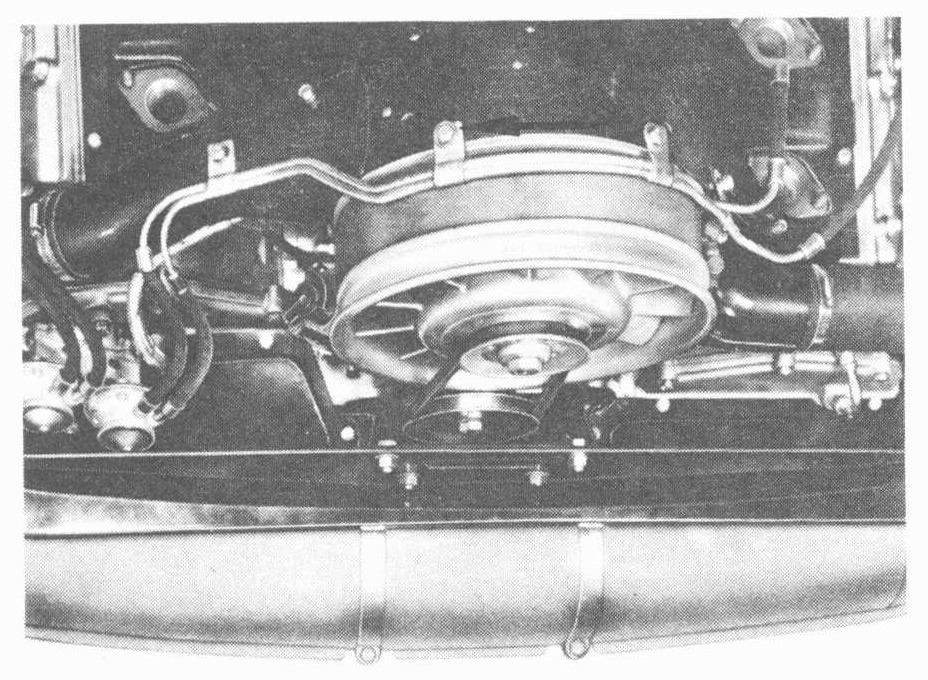

5. Pull blower housing and alternator assembly towards the rear

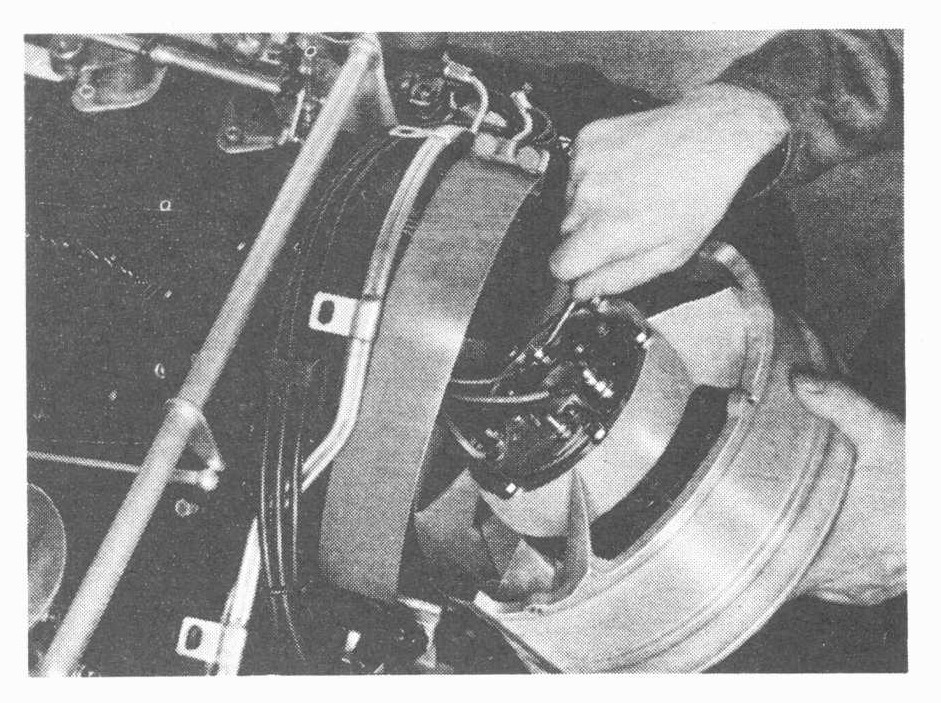

6. Detach wire connections from alternator.

Installation


Install in reversed order of the before mentioned the following points:

1. Seat the blower housing in the dowel located in the crankcase.
2. Make sure that the blower housing is well seated in the crankcase.
3. Properly reconnect wires to the alternator.
4. Tighten alternator pulley nut to 29 ft-lb
