Tools - Oil Filter Wrench Modifying
86porsche01Subject:
Modification of Oil Filter Wrench - P9204
Model
944 944 Turbo
Group
1
Part Identifier
N/A
Number
8609
March 14, 1986

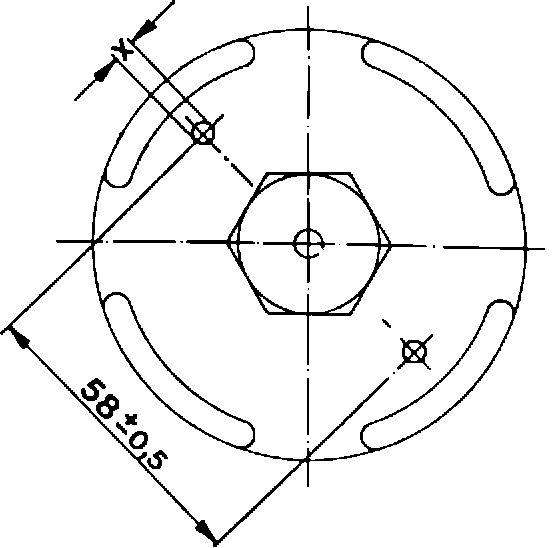

To aid in the removal of binding oil filter cartridges, Special Tool P9204 can be modified as shown.
Drill two 5 mm diameter holes into the tool through which 2 sheet metal screws may be screwed into the filter.
Dimension X:
Hole for sheet metal screw; e.g. for B 4,8 x 16
The screws should be easily installable.
