Condenser Fan: Service and Repair

Removing and Installing Fan For Condenser




NOTE: This procedure applies to both driver-side and passenger-side condenser fans.



Removing

1. Remove front wheel, front wheel housing liner and front spoiler.

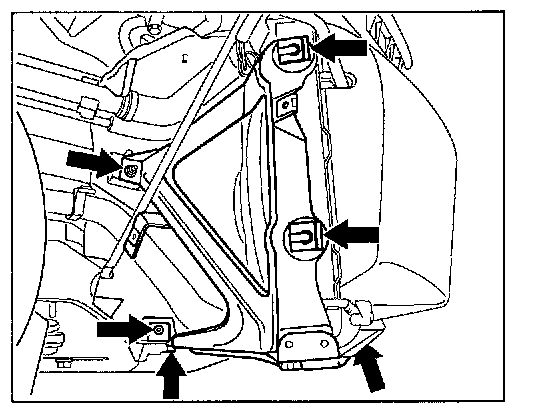

2. Detach cooler bracket from the body -(1 nut, 2 M8 screws and 1 sheetmetal screw)-.





3. Undo -retaining clips- from the radiator and pull off the radiator bracket downwards.

4. Disconnect the electrical plug connection and undo 2 sheet-metal screws from the fan housing.

5. Pull the fan housing with fan motor out of the holder.

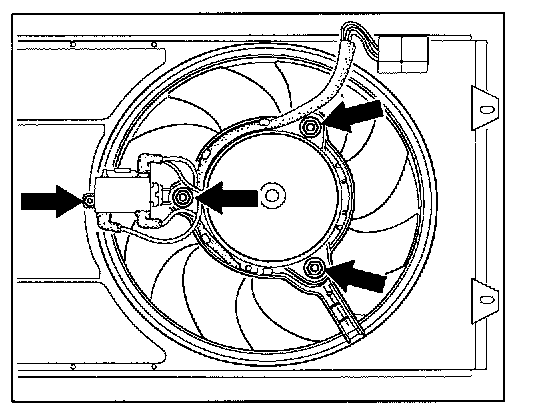

6. Detach -fan motor and ballast resistor- from the fan housing and remove.


Installing

1. After installation, check whether the fan can rotate freely.

2. Tighten front wheel.

Tightening torque: 130 Nm (96 ftlb.)
