Procedures

668219 Removing And Installing Mirror Adjusting Motor

Preliminary work
Remove mirror glass.

Removing mirror adjusting motor

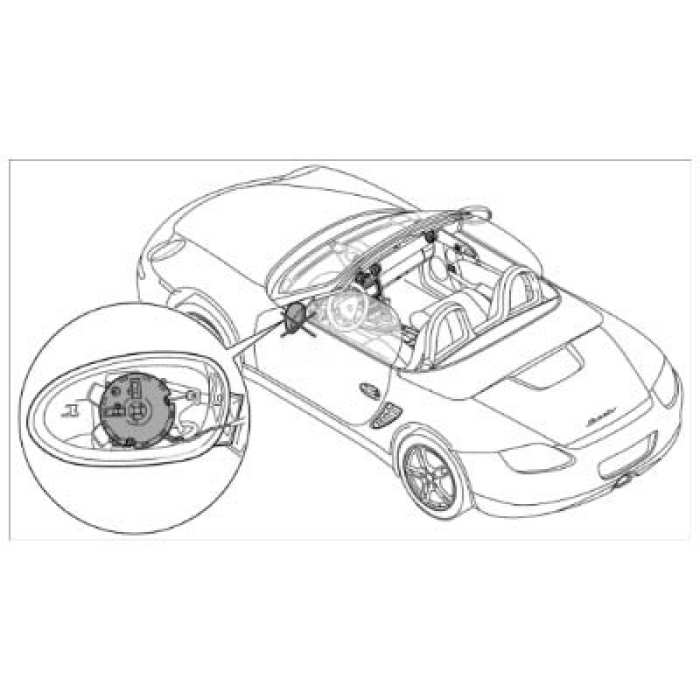

Overview Of Mirror Adjusting Motor:

1. Switch off ignition and remove ignition key.
2. Unscrew the three fastening screws -1- from mirror adjusting motor.

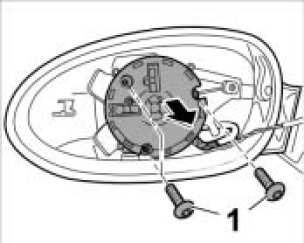

Unscrewing Fastening Screws From Mirror Adjusting Motor:

3. Pull off connector on mirror adjuster motor take off mirror adjusting motor.

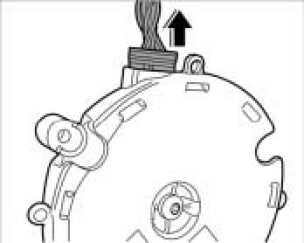

Pulling Off Connector From Mirror Adjusting Motor:

Installing mirror adjuster motor
1. Push connector onto mirror adjusting motor until it is felt to engage.

Pushing Connector Onto The Mirror Adjusting Motor:

2. Insert mirror adjusting motor and screw down the three fastening screws -1-.

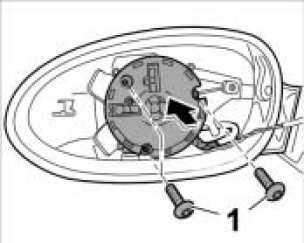

Screwing Down Fastening Screws On The Mirror Adjusting Motor:

3. Switch on ignition and check function of the mirror adjusting motor.

Subsequent work
Install mirror glass.
