Removing

Removing and installing coolant pump

Preliminary work for removing coolant pump

1. Place protective covers on the vehicle to avoid damaging the body.
2. Remove drive belt.
3. Remove rear underbody cover.
4. Drain coolant.

Removing coolant pump

WARNING: Danger of scalding from hot pressurized coolant.
^ Only work on the coolant system when the engine is "cool".
^ Wear protective gloves and goggles.

WARNING: Coolant is corrosive and hazardous to health.
^ Skin and eye irritation
^ Wear protective gloves and goggles.
^ If you come into contact with coolant, wash off immediately with plenty of warm water.

1. Open spring band clamps -1, 4- then loosen and pull off coolant hoses -2, 3-.

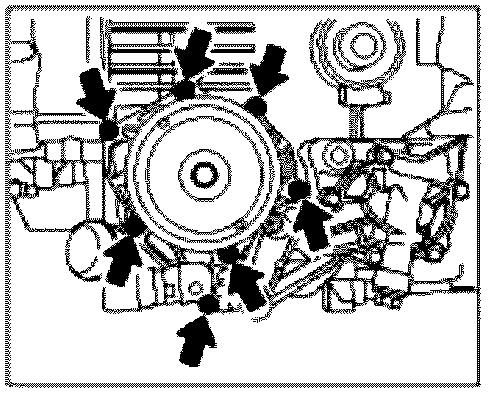

2. Unscrew seven Torx screws, two M6 x 30 and five M6 x 25 arrows-.
3. Remove coolant pump.
