Procedures

REMOVING AND INSTALLING CONTROL MECHANISM FOR TRANSMISSION

Note: Fill only with ATF approved by Porsche.

Note: Hot vehicles should cool down before beginning the activity.

Note: Vehicle must be horizontal in order to be filled and checked.

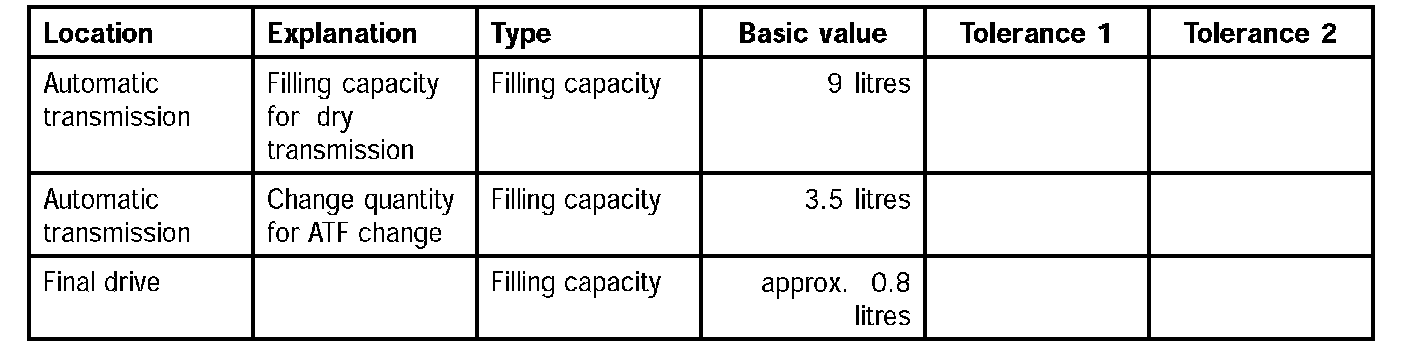

Filling capacities

Preliminary work

1. Raise the vehicle at the prescribed jacking points.
2. Remove support plate.
3. Remove ATF pan.
4. Remove ATF filter.

Subsequent work

1. Install ATF filter.
2. Install ATF pan.
3. Install support plate.
4. Lower the vehicle.
