Cellular Phone Transceiver: Service and Repair

919119 Removing And Installing Additional Receiver For Telephone

Removing additional telephone receiver

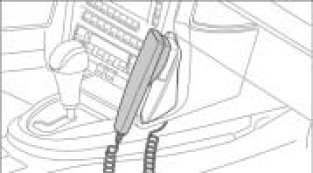

Installation Position:

Installation position
1. Remove ignition key and switch off audio system.
2. Cut through the tie-wrap for the electric wire and disengage the wire at the retaining bracket.

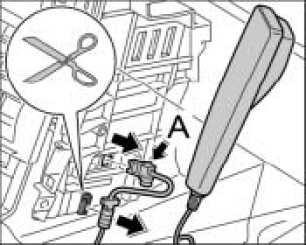

Disconnecting Plug Connection:

3. Release electric plug from additional receiver -A- and unplug it.

Installing additional telephone receiver
1. Insert electrical plug for additional receiver until it is felt to engage.

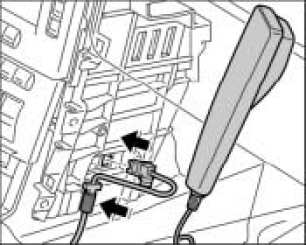

Connecting Plug Connection:

2. Engage electric wire at the retaining bracket and secure with a tie-wrap.
