Removal and Replacement

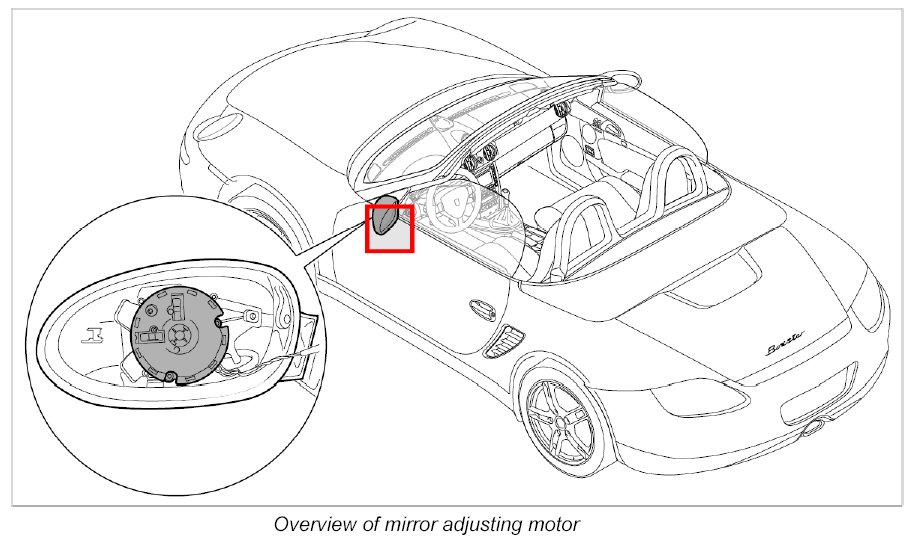

Removing And Installing Mirror Adjusting Motor

Preliminary work

Remove mirror glass. Refer to Removing and reinstalling mirror glass

Removing mirror adjusting motor







1. Switch off ignition and remove ignition key.

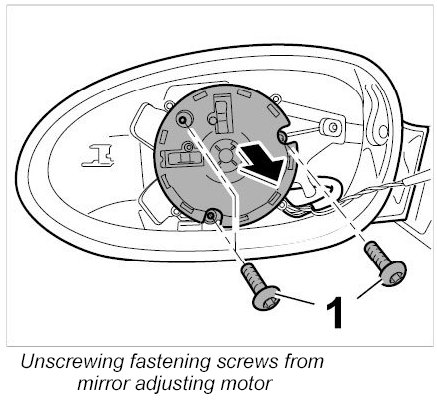

2. Unscrew the three fastening screws -1- from mirror adjusting motor.

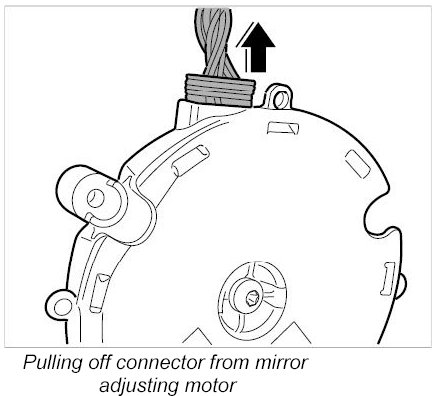

3. Pull off connector on mirror adjuster motor take off mirror adjusting motor.







Installing mirror adjusting motor

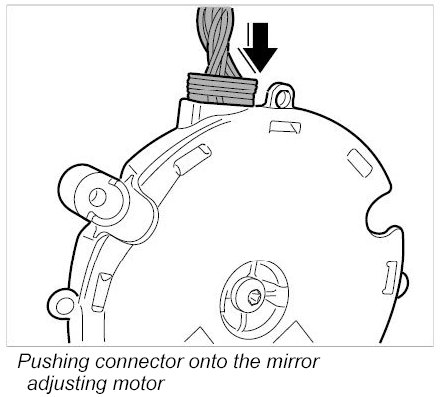

1. Push connector onto mirror adjusting motor until it is felt to engage.

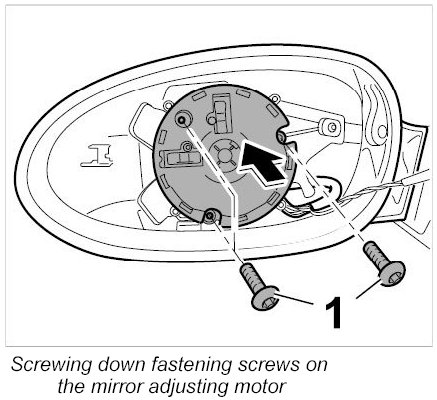

2. Insert mirror adjusting motor and screw down the three fastening screws -1-.







3. Switch on ignition and check function of the mirror adjusting motor.

Subsequent work

Install mirror glass. Refer to Removing and reinstalling mirror glass
